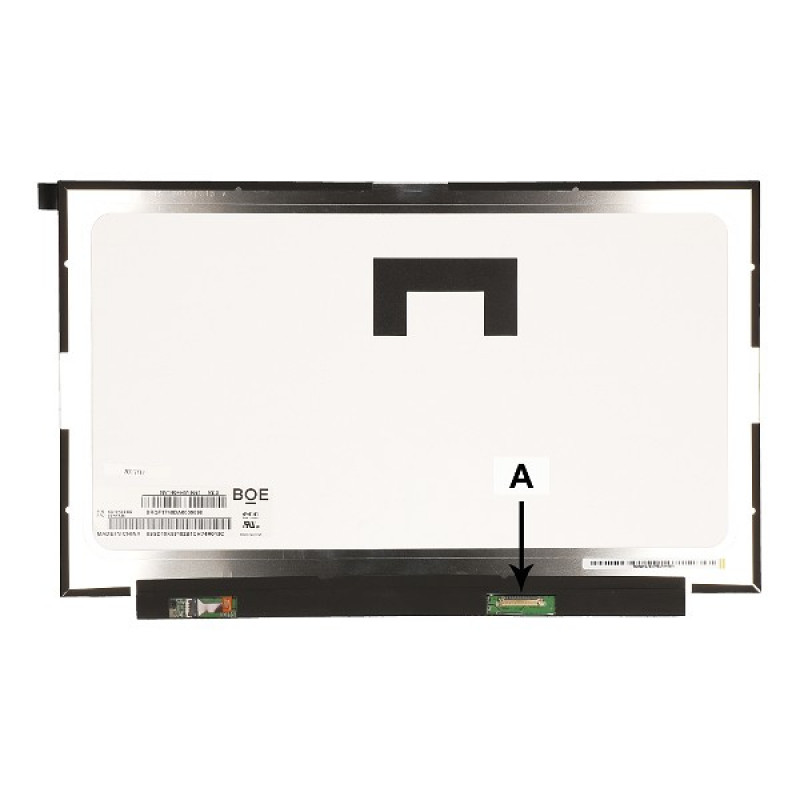

2-power 14,0 inch 1920x1080 IPS AG sem fixações (2P-NP5R3)

For technicians and system builders who need a dependable 14-inch display without the bulk of a pre-assembled lid, this 2-POWER panel strips away the unnecessary and delivers the core essentials: a crisp Full HD IPS surface, an anti-glare finish that works under office lighting, and a standard 30-pin eDP connector that slots into a wide range of laptops. Unlike generic TN panels that wash out at an angle, this IPS module keeps colours stable from 85° in every direction, so it is equally suited to spreadsheet work, video calls, or occasional media playback.

Highlights

• 14.0-inch IPS panel with 1920 x 1080 Full HD resolution for sharp text and detailed images.
• Anti-glare (matte) coating reduces reflections and eye strain in bright environments.
• Standard 30-pin eDP interface for straightforward replacement in many laptop models.
• Wide 85/85/85/85 viewing angles maintain colour accuracy from off-centre positions.
• LED backlight with a typical brightness of 250 cd/m² and 45% NTSC colour gamut.
• Bare panel design with no mounting brackets or fixings – ideal for custom installations.

In daily use

Installing this panel is a straightforward task for anyone familiar with laptop disassembly: remove the old screen, connect the eDP cable, and secure the new panel with existing adhesive strips or brackets from the original assembly. The 60 Hz refresh rate and 25 ms response time are perfectly adequate for productivity, web browsing, and video streaming, while the 16.7 million colour depth ensures smooth gradients in photos and presentations. Because it draws only 3.5 W, it will not noticeably impact battery life compared to the original panel.

Full specifications

• Brand: 2-POWER
• Model: 2P-NP5R3
• Screen size: 14.0 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel type: IPS (In-Plane Switching)
• Surface finish: Anti-glare (matte)
• Aspect ratio: 16:9
• Backlight type: LED
• Connector type: eDP (Embedded DisplayPort)
• Connector pins: 30-pin
• Refresh rate: 60 Hz
• Brightness (typical): 250 cd/m²
• Colour gamut (typical): 45% NTSC
• Viewing angles: 85° left / 85° right / 85° up / 85° down
• Mounting type: No fixings (bare panel)
• Condition: New
• Technology: TFT Active Matrix LCD
• Response time (typical): 25 ms
• Power consumption (typical): 3.5 W
• Display colours: 16.7 million
• Compatibility: Universal for laptops requiring a 14.0" FHD IPS eDP 30-pin panel

Final note

2-POWER supplies replacement displays that meet or exceed original specifications, and this 14-inch IPS panel is no exception. Whether you are repairing a damaged screen or upgrading from a lower-resolution TN panel, it offers a cost-effective path to a brighter, sharper, and more colour-accurate viewing experience.
