2-power 14,0 polegadas WUXGA 1920x1200 5MM eDP IPS (2P-TDVNC)

A cracked or dim laptop display can make everyday tasks frustrating, but replacing it doesn’t have to be complicated. The 2-Power 14.0" WUXGA panel brings your notebook back to life with a crisp 1920x1200 resolution, vivid IPS colours, and a slim 5mm profile that fits a wide range of ultrabooks and business laptops. This eDP (Embedded DisplayPort) screen connects via a standard 30-pin interface, making it a straightforward upgrade for technicians and DIY repairers alike.

Who is it for

This panel is ideal for laptop owners, IT support teams, and independent repair shops that need a reliable replacement display for 14-inch notebooks. If your current screen suffers from dead pixels, backlight bleed, or physical damage, this IPS panel restores sharp text and accurate colour for work, streaming, and everyday use.

Main features

• 14.0-inch IPS panel with 1920x1200 WUXGA resolution and 16:10 aspect ratio for extra vertical space

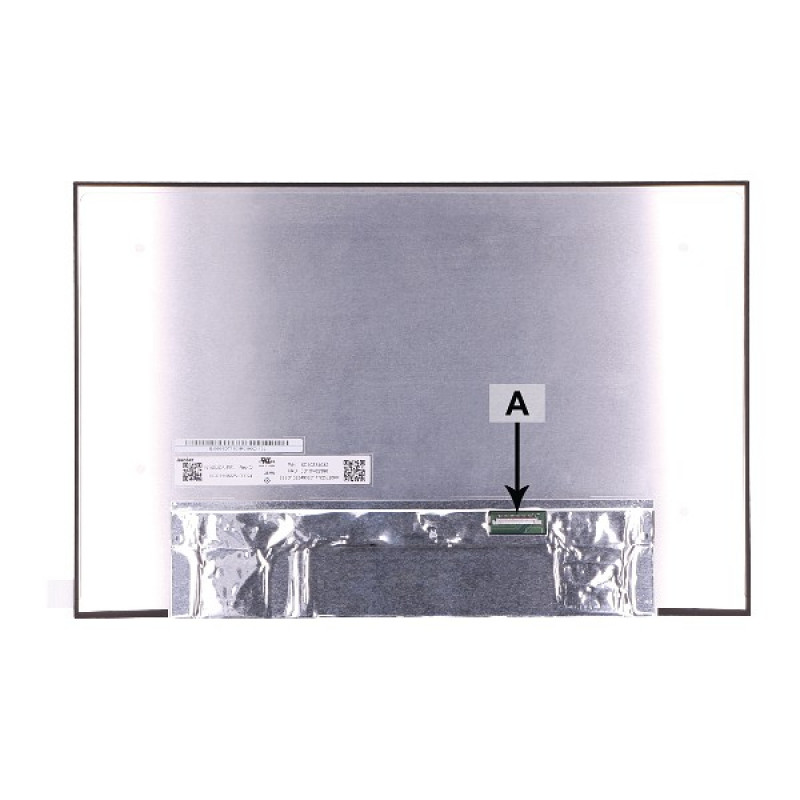

• Ultra-slim 5mm thickness and 30-pin eDP connector for compatibility with modern laptops
• LED backlight with 300 cd/m² brightness and 800:1 contrast ratio for clear images indoors
• Wide 85° viewing angles and matte finish to reduce glare and reflections
• Low power consumption of approximately 3.5W to help preserve battery life

Specifications

• Screen size: 14.0 inches
• Resolution: 1920 x 1200 (WUXGA)
• Aspect ratio: 16:10
• Panel type: IPS
• Interface: eDP (30-pin)
• Panel thickness: 5 mm
• Backlight: LED
• Refresh rate: 60 Hz
• Brightness: 300 cd/m²
• Contrast ratio: 800:1
• Colour gamut: 45% NTSC
• Response time: 30 ms
• Viewing angles: 85° (up/down/left/right)
• Surface finish: Matte
• Power consumption: 3.5 W

Tips

Before ordering, verify your laptop’s exact screen size, resolution, and connector type. The 30-pin eDP interface and 5mm thickness are common but not universal—check your service manual or existing panel label. Handle the screen by its edges and use an anti-static mat during installation to avoid damage.
