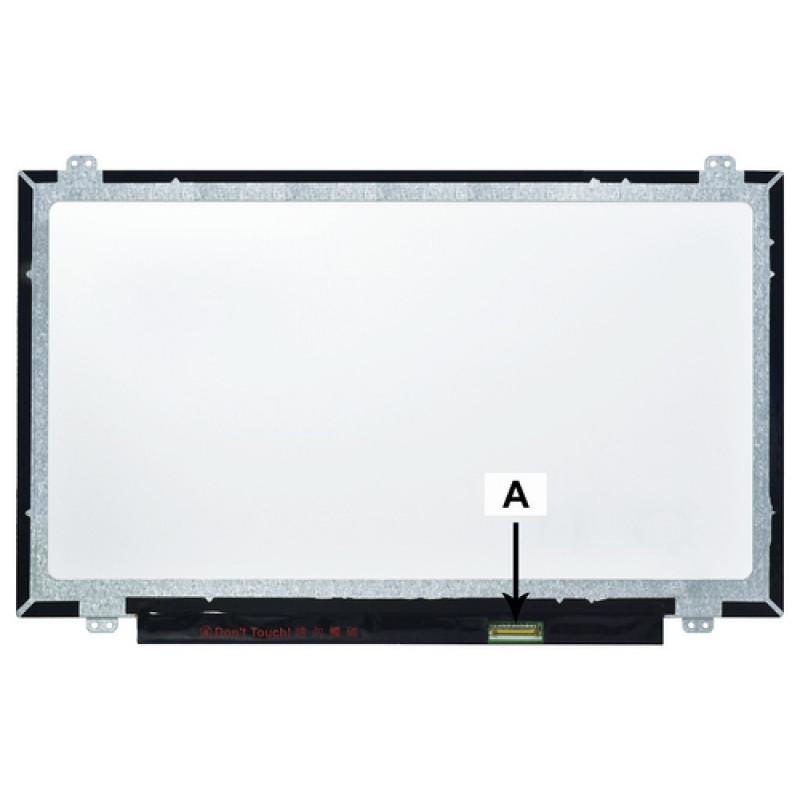

2-power 2P-00UP059 - Ecrã - 35,6 cm (14") - WXGA

A dim, cracked, or failing laptop screen can make even the simplest tasks frustrating, but replacing it doesn’t have to be complicated. The 2-POWER 2P-00UP059 is a 14-inch WXGA LED display panel that restores sharp, clear visuals to your notebook, so you can get back to work, streaming, or browsing without eye strain.

Who is it for

This panel is ideal for IT technicians, repair shops, and DIY users who need a reliable replacement for a 14-inch laptop with a 40-pin LVDS connector. It’s also a smart choice for anyone upgrading from a damaged or low-quality screen to a new, factory-fresh TN panel with a matte finish.

Main features

• 14-inch (35.6 cm) WXGA resolution (1366 x 768) for crisp, detailed images
• LED backlight with 220 cd/m² brightness for comfortable viewing indoors
• Matte (anti-glare) surface reduces reflections and fingerprints
• Standard 40-pin LVDS connector for broad compatibility
• Fast 8 ms response time and 60 Hz refresh rate for smooth motion
• Wide 45°/45°/20°/40° viewing angles (H/V) for flexible positioning
• Active Matrix TFT LCD technology with 45% NTSC colour gamut
• Side bracket mounting for easy installation in compatible chassis

Specifications

• Brand: 2-POWER
• Model: 2P-00UP059
• Display diagonal: 35.6 cm (14")
• Resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Brightness: 220 cd/m²
• Response time: 8 ms
• Refresh rate: 60 Hz
• Viewing angles: 45° horizontal / 45° vertical (top/bottom 20°/40°)
• Colour gamut: 45% NTSC
• Connector: 40-pin LVDS
• Touchscreen: No
• Surface: Matte (anti-glare)
• Mounting: Side brackets
• Condition: New

Tips

Before ordering, confirm your laptop’s screen size, resolution, and connector type. This panel uses a 40-pin LVDS connection, which is common in many 14-inch notebooks, but always double-check your original screen’s part number or specifications. Handle the panel by its edges and avoid touching the surface to prevent damage during installation.
