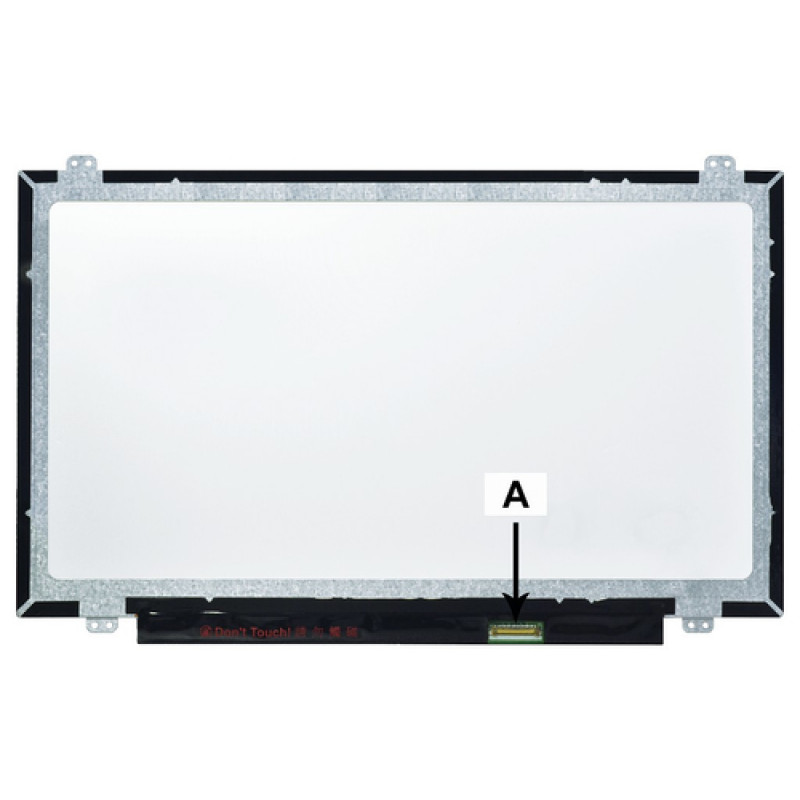

2-power 2P-0C00322 - 35,6 cm (14") - WXGA

A cracked or dim laptop display can render your machine unusable, but replacing it doesn't have to be a hassle. The 2-POWER 2P-0C00322 is a 14-inch WXGA screen engineered to restore crisp visuals to compatible laptops. With a 1366x768 resolution, LED backlight, and a glossy TN panel, it delivers bright, clear images for everyday computing. The 40-pin LVDS connector and side mounting brackets ensure a straightforward installation, making it a practical choice for DIY repairs or professional refurbishment.

Who is it for

This screen is ideal for technicians, IT departments, and home users who need a reliable replacement for a 14-inch laptop display. It fits a wide range of models that require a 14" WXGA panel with a 40-pin LVDS connection, offering a cost-effective alternative to buying a new laptop. Whether you're fixing a personal device or servicing multiple units, this panel provides the performance and compatibility you need.

Main features

• 14-inch WXGA (1366x768) resolution for sharp, detailed images
• LED backlight for energy efficiency and consistent brightness
• Glossy TN panel with 200 cd/m² brightness and 8 ms response time
• 40-pin LVDS connector positioned bottom-left for easy hookup
• Side mounting brackets for secure installation
• Supports 262,144 colors for vibrant visuals

Specifications

• Display diagonal: 35.6 cm (14")
• Resolution: 1366 x 768 pixels (WXGA)
• Aspect ratio: 16:9
• Panel type: TFT Active Matrix (TN)
• Backlight: LED
• Surface finish: Glossy
• Brightness: 200 cd/m²
• Response time: 8 ms
• Color support: 262,144 colors (6-bit)
• Refresh rate: 60 Hz
• Connector: 40-pin LVDS
• Connector position: Bottom left (viewed from back)
• Mounting: Side brackets
• Touchscreen: No
• Compatibility: Universal for laptops requiring 14" WXGA 40-pin LVDS screen

Tips

Before ordering, verify that your laptop uses a 14-inch WXGA panel with a 40-pin LVDS connector and side mounting brackets. Check the connector position—this screen has it on the bottom left when viewed from the back. Handle the panel by its edges to avoid fingerprints or damage, and test it before final assembly. For best results, use an anti-static mat and reconnect the battery after installation.
