2-power 2P-B116XAN04.0 - Ecrã - 29,5 cm (11,6") - WXGA

Experience crisp visuals with the 2-POWER 2P-B116XAN04.0, a 11.6-inch WXGA display panel engineered for seamless laptop screen replacements. Its 1366x768 resolution and LED backlight deliver bright, clear images, while the 30-pin eDP connector ensures compatibility with a wide range of notebooks.

Overview

This 2-POWER display panel is a direct replacement for many 11.6-inch laptops, offering a cost-effective solution to restore your device's display. The panel features a TN (Twisted Nematic) matrix with a glossy finish, providing vibrant colors and sharp text. With a 16:9 aspect ratio, it is ideal for both productivity and multimedia consumption. The panel's compact size and standard mounting brackets make installation straightforward for technicians and advanced DIY users.

What stands out

• 11.6-inch WXGA (1366x768) resolution for clear, detailed images
• LED backlight for energy efficiency and consistent brightness
• 30-pin eDP connector for reliable signal transmission
• Glossy surface enhances color vibrancy and contrast
• Top and bottom mounting brackets for secure installation

Technical details

• Brand: 2-POWER
• Model: 2P-B116XAN04.0
• Diagonal size: 29.5 cm (11.6 inches)
• Resolution: WXGA (1366 x 768 pixels)
• Aspect ratio: 16:9
• Backlight: LED
• Panel type: TN
• Surface: Glossy (Glare)

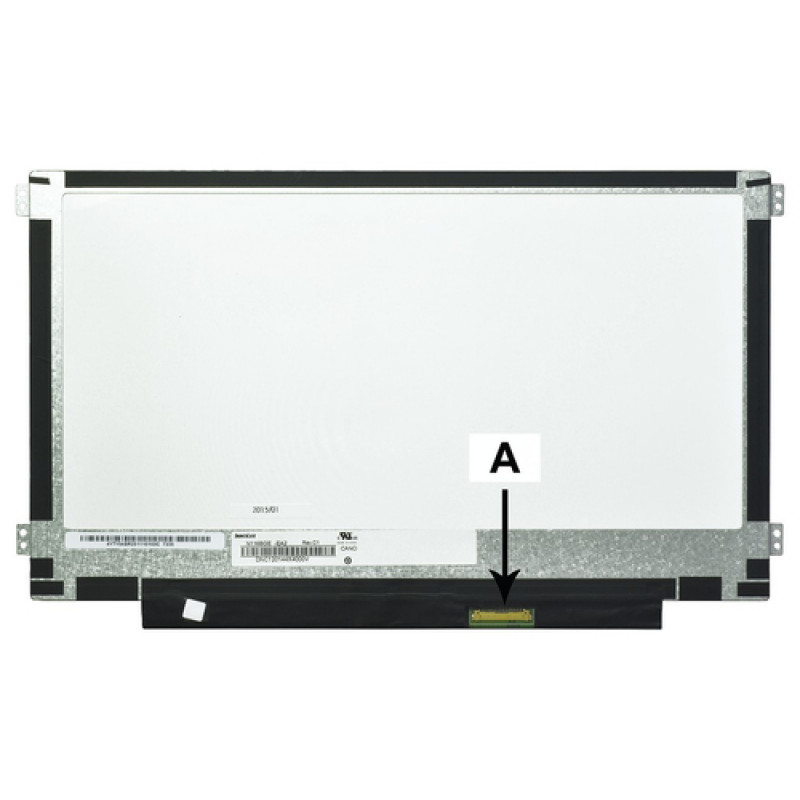

• Connector: 30-pin eDP (bottom right)
• Refresh rate: 60 Hz
• Brightness: 200-220 cd/m²
• Contrast ratio: 300:1 - 500:1
• Viewing angles: 45/45/20/40 (L/R/U/D)
• Response time: 8-16 ms
• Color support: 262,144 colors (6-bit)
• Color gamut: 45% NTSC
• Mounting: Top and bottom brackets

Our verdict

The 2-POWER 2P-B116XAN04.0 is a reliable replacement panel that brings your laptop back to life with clear, bright visuals. Its standard specifications and easy installation make it a practical choice for repairs.
