2-power 2P-CP698905-01 - 35,6 cm (14") - WXGA

Upgrade your laptop's display with this 14-inch WXGA LED screen panel, delivering crisp visuals and reliable performance for everyday computing. With a native resolution of 1366 x 768 and a 16:9 aspect ratio, it ensures sharp text and vibrant images for work, streaming, and browsing. The LED backlight provides consistent brightness up to 220 nits, while the glossy finish enhances colour depth and contrast.

Advantages

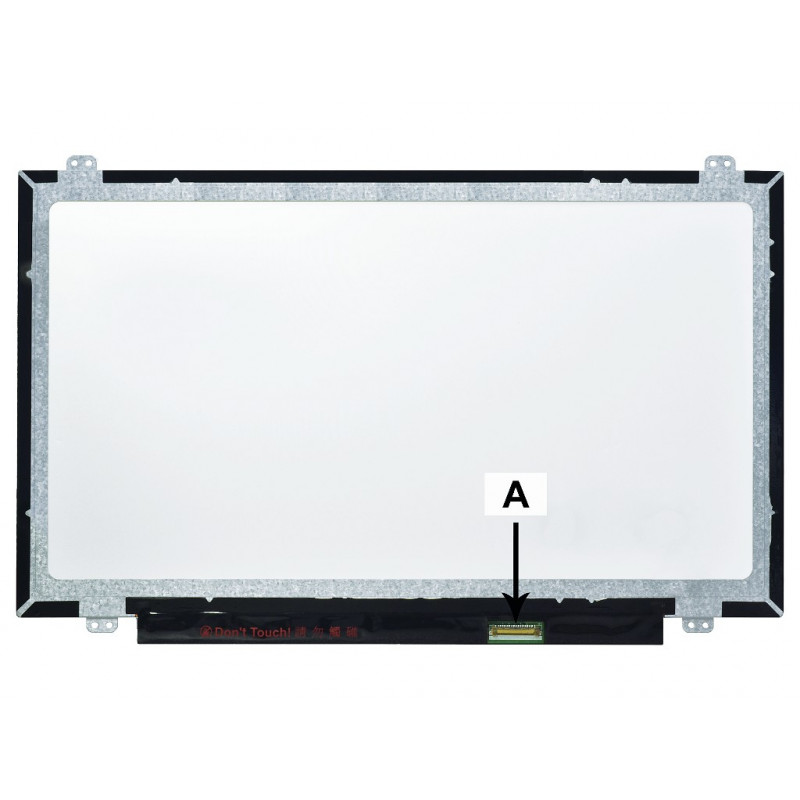

This panel features a 30-pin eDP connector positioned at the bottom right, making it compatible with a wide range of laptops that require this standard interface. The TN panel technology offers fast response times of 8 ms, reducing motion blur during video playback and casual gaming. Its slim profile and side mounting brackets allow for straightforward installation, restoring your laptop to full functionality without the cost of a new device.

Suitable for

• Laptops requiring a 14-inch WXGA display with a 30-pin eDP connector
• Users seeking a cost-effective replacement for a damaged or faulty screen
• DIY repair enthusiasts and professional technicians
• Everyday computing tasks, including office work, web browsing, and multimedia

Key specifications

• Screen size: 14 inches (35.6 cm)
• Resolution: 1366 x 768 (WXGA)
• Aspect ratio: 16:9
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Surface finish: Glossy
• Connector: 30-pin eDP, bottom right
• Refresh rate: 60 Hz
• Brightness: 200-220 nits
• Colour gamut: 45% NTSC
• Response time: 8 ms
• Touchscreen: No
• Mounting: Side brackets
• Pixel density: ~112 PPI

Recommendations

Before ordering, verify your laptop's screen size, resolution, connector type, and mounting position to ensure compatibility. Handle the panel by its edges and avoid touching the surface to prevent damage. For best results, have the installation performed by a qualified technician.
