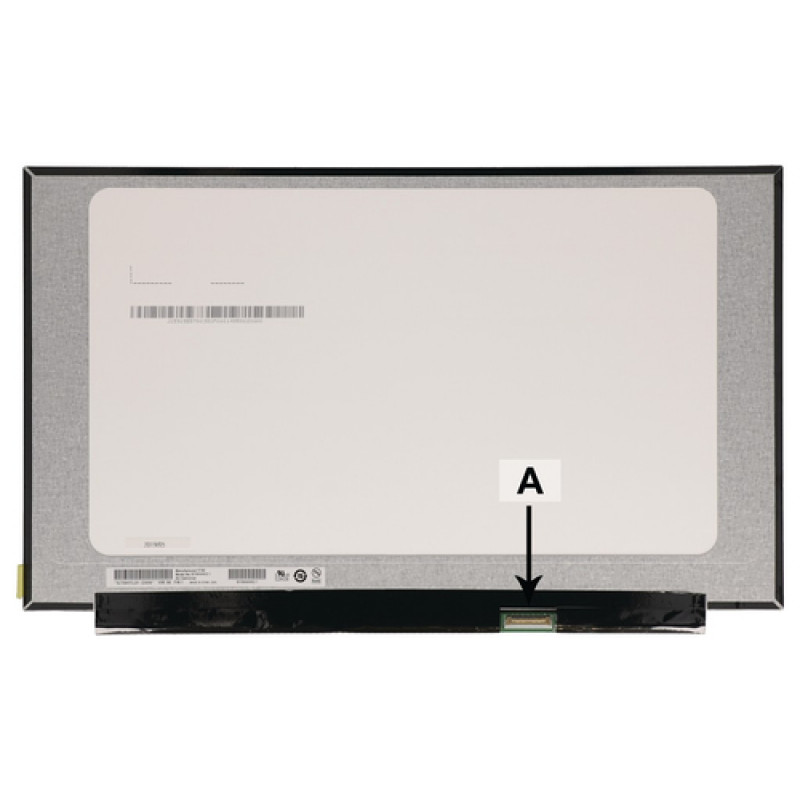

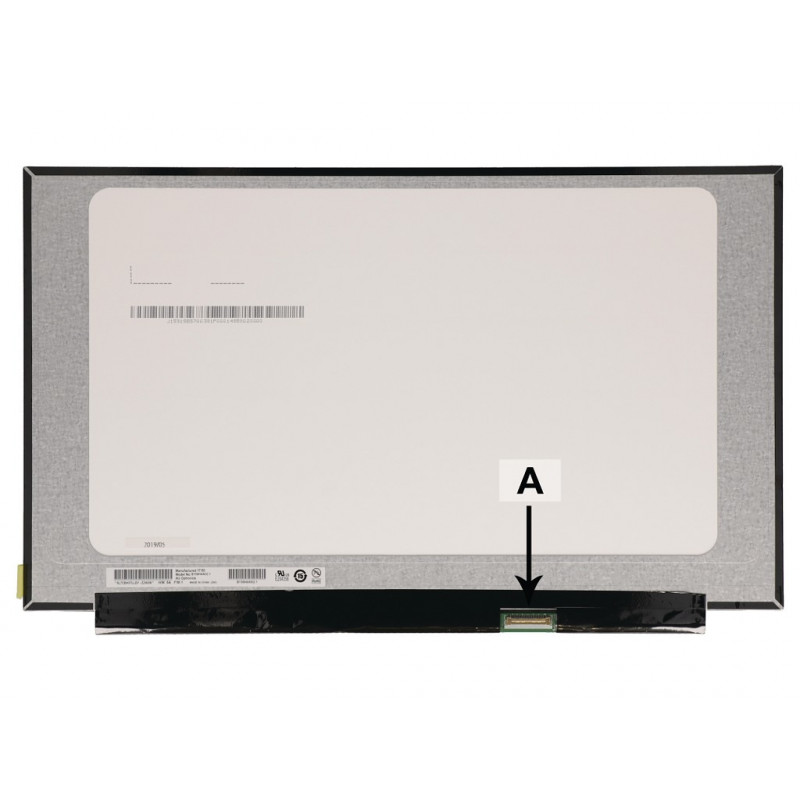

2-power 2P-LP156WF9(SP)(M3) - ecrã - 39,6 cm (15,6") - Full HD

When your laptop screen cracks or loses brightness, a reliable replacement panel restores clarity and productivity. The 2-POWER 2P-LP156WF9(SP)(M3) is a 15.6-inch Full HD IPS display engineered for laptops using the LP156WF9 series. With a 1920x1080 resolution, LED backlight, and matte anti-glare surface, it delivers sharp visuals in offices, classrooms, and on the go. The 30-pin eDP connector ensures a straightforward installation for compatible models.

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: Full HD 1920 x 1080
• Panel type: IPS (In-Plane Switching)
• Aspect ratio: 16:9
• Backlight: LED
• Surface: Matte (anti-glare)
• Connector: 30-pin eDP
• Refresh rate: 60 Hz
• Brightness: 250 cd/m² typical
• Color gamut: 45% NTSC
• Viewing angles: 85° horizontal / 85° vertical
• Response time: 25 ms typical

Why choose it

The IPS panel offers wide viewing angles and consistent color, making it suitable for both productivity and multimedia. The matte finish reduces reflections, easing eye strain during long work sessions. As a direct replacement for LP156WF9 series screens, it fits a range of laptops without modification, and the 30-pin eDP interface matches the original connector.

Ideal use cases

• Replacing a damaged or faulty laptop display
• Upgrading to a Full HD IPS screen for better image quality
• DIY repairs in workshops or by IT technicians
• Refurbishing used laptops for resale

Good to know

Before ordering, verify your laptop's screen size, resolution, connector type, and mounting brackets to ensure compatibility. The panel is designed for standard 15.6-inch laptops with a 30-pin eDP connection. Installation requires careful handling; professional installation is recommended if you are unfamiliar with laptop disassembly. The product does not include cables, brackets, or tools.
