2-power 2P-LP156WH3-TLS1 - 39,6 cm (15,6") - WXGA

A cracked, dim, or flickering laptop display can render an otherwise functional machine useless. The 2-POWER 2P-LP156WH3-TLS1 replacement panel restores your 15.6-inch notebook to crisp, bright performance without the cost of a new computer. This LED-backlit LCD delivers a native 1366 x 768 WXGA HD resolution, a 16:9 aspect ratio, and a glossy finish that enhances colour vibrancy for everyday work, streaming, and browsing. With a 40-pin LVDS connector on the left bottom and a 60 Hz refresh rate, it is a direct drop-in replacement for the LP156WH3-TLS1 or equivalent panels, ensuring compatibility with a wide range of laptops. The panel offers 200 cd/m² brightness and a 400:1 contrast ratio, producing clear text and adequate image depth in indoor environments. Its 262K colour support (6-bit) and 45% NTSC colour gamut are typical for mainstream notebooks, while the 8 ms response time keeps motion blur to a minimum during video playback. The TFT active matrix technology provides stable viewing angles and consistent colour reproduction. Installation is straightforward for technicians and confident DIYers: disconnect the battery, remove the bezel, unscrew the old panel, detach the video cable, and reverse the process with the new screen. No additional cables or adapters are required. This panel is brand new, not a refurbished or pulled part, ensuring full brightness and no dead pixels. It is an ideal solution for repairing laptops from brands such as Acer, ASUS, Dell, HP, Lenovo, and Toshiba that use the LP156WH3-TLS1 panel or compatible 40-pin LVDS 15.6-inch WXGA screens.

Who is it for

This replacement screen is for laptop owners, IT technicians, and repair shops looking to fix a broken or faulty 15.6-inch display. It suits users who need a reliable, cost-effective alternative to replacing an entire laptop. Whether you are upgrading from a damaged panel or performing a bulk repair, this screen offers OEM-equivalent quality without the OEM price tag.

Main features

• 15.6-inch TFT active matrix LCD with LED backlight
• Native resolution: 1366 x 768 (WXGA HD), 16:9 aspect ratio
• Glossy surface for enhanced colour saturation

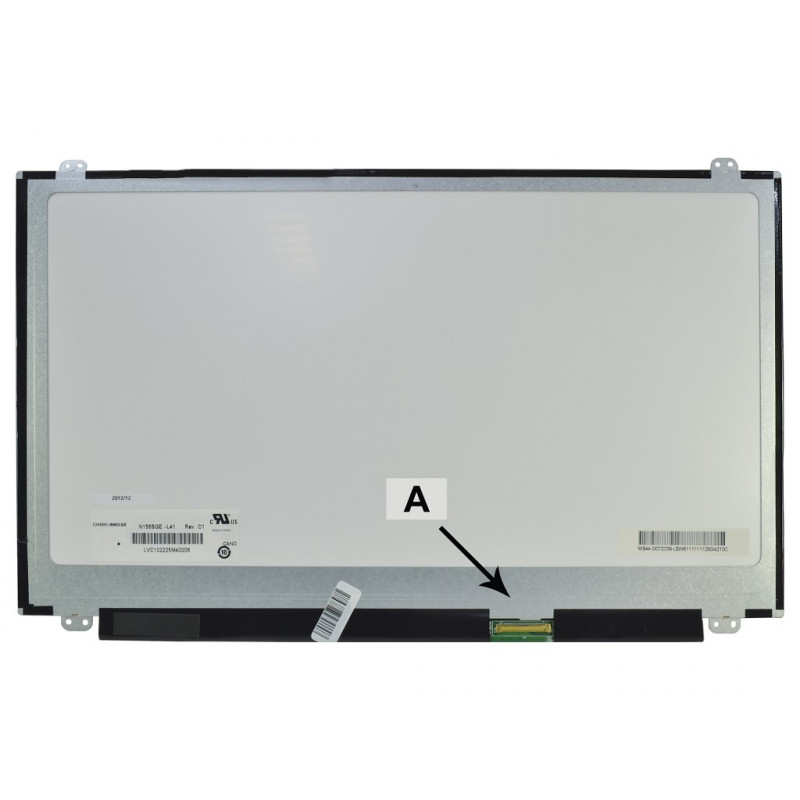

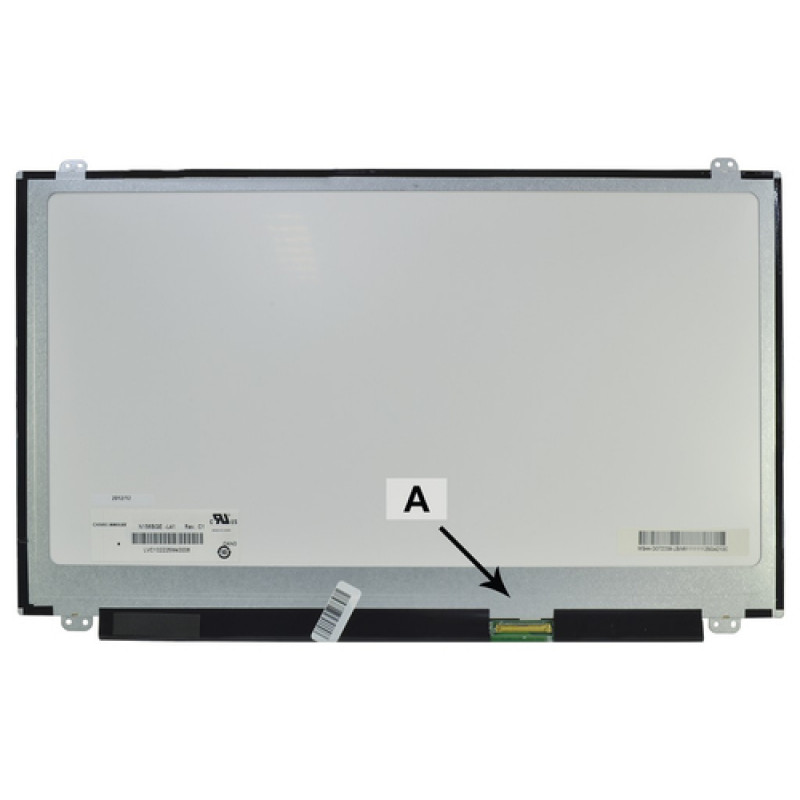

• 40-pin LVDS connector, left bottom orientation
• 60 Hz refresh rate, 8 ms response time
• Brightness: 200 cd/m², contrast ratio: 400:1
• Colour support: 262K (6-bit), 45% NTSC gamut
• Brand new condition, fully tested
• Direct replacement for LP156WH3-TLS1 or equivalent panels

Specifications

• Brand: 2-POWER
• Model: 2P-LP156WH3-TLS1
• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA HD)
• Aspect ratio: 16:9
• Display technology: TFT Active Matrix LCD
• Backlight type: LED
• Surface type: Glossy
• Connector type: 40 Pin LVDS (Left Bottom)
• Refresh rate: 60 Hz
• Brightness: 200 cd/m² (nits)
• Contrast ratio: 400:1
• Colour support: 262K colours (6-bit)
• Colour gamut: 45% NTSC
• Response time: 8 ms (Typ. Tr+Td)
• Condition: New
• Compatibility: Replacement for LP156WH3-TLS1 or equivalent panels

Tips

Before ordering, confirm your original screen's model number, size, resolution, and connector position. The LP156WH3-TLS1 is a common panel, but some laptops use a different cable location or thickness. Handle the new panel by its edges to avoid fingerprints or pressure damage. Test the screen before fully reassembling the bezel to ensure proper connection and backlight function. If you encounter a blank display, reseat the LVDS cable and check that the laptop is powered off and battery disconnected during installation.
