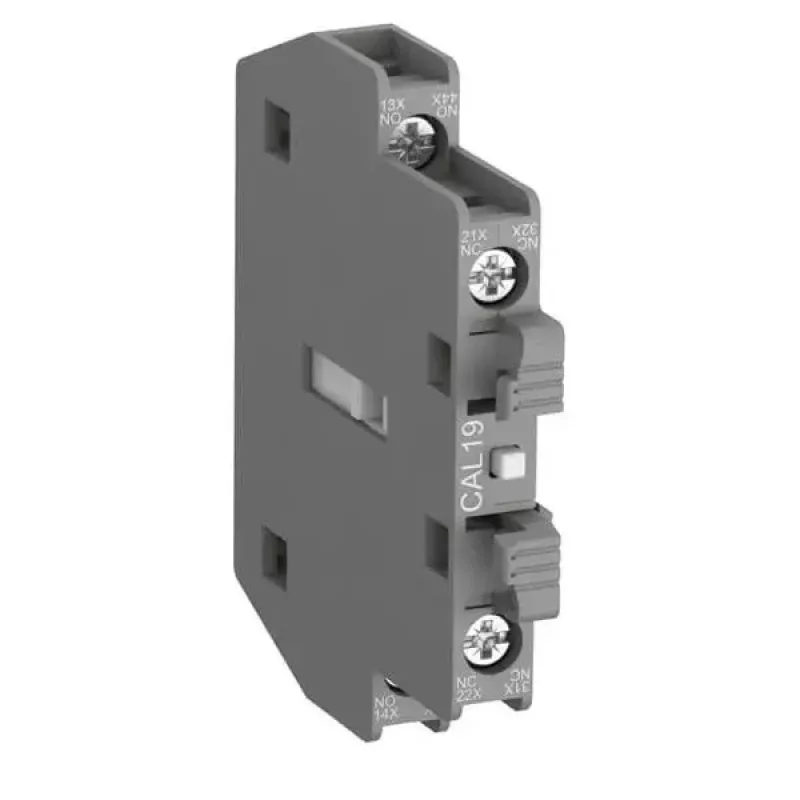

ABB CAL19-11 Bloco de contacto auxiliar, 1NO+1NC, montagem frontal, terminais de parafuso 1SFN010820R1011

Contactors often need additional signaling or interlocking contacts beyond their built-in auxiliary contacts. The ABB CAL19-11 auxiliary contact block solves this by adding one normally open (NO) and one normally closed (NC) contact to ABB AF and NF series contactors, enabling reliable control and status feedback in industrial control circuits.

Who is it for

This auxiliary contact block is intended for panel builders, machine builders, and maintenance technicians who need to expand the functionality of ABB contactors in motor control, automation, and power distribution applications.

Main features

• Contact configuration: 1 NO + 1 NC
• Front mounting for easy installation on ABB contactors
• Compatible with ABB AF09-AF96, AF116-AF370, and NF contactors
• Screw terminals for secure wiring
• Rated operational voltage up to 690 V AC / 250 V DC
• Mechanical durability of 10 million operating cycles

Specifications

• Contact configuration: 1 NO + 1 NC
• Mounting type: Front mounting
• Rated insulation voltage (Ui): 690 V
• Rated impulse withstand voltage (Uimp): 6 kV
• Rated operational current AC-15 (220-240 V): 6 A
• Rated operational current AC-15 (380-440 V): 3 A
• Rated operational current DC-13 (24 V): 6 A
• Terminal type: Screw terminals
• Degree of protection (terminals): IP20
• Degree of protection (front): IP40
• Operating temperature range: -25 to +70 °C
• Storage temperature range: -40 to +70 °C
• Mechanical durability: 10 million operating cycles
• Electrical durability: 1.5 million operating cycles (AC-15, 230 V, 6 A)
• Wire connection capacity (rigid): 1 ... 2.5 mm²
• Tightening torque: 1.2 Nm

Tips

Verify the contactor model and mounting position before installation. Ensure the contactor is de-energized and follow ABB installation instructions for proper torque and wiring.
