Eaton FAZ-XHIN11 Contacto Auxiliar 1NO+1NC para Disjuntores FAZ

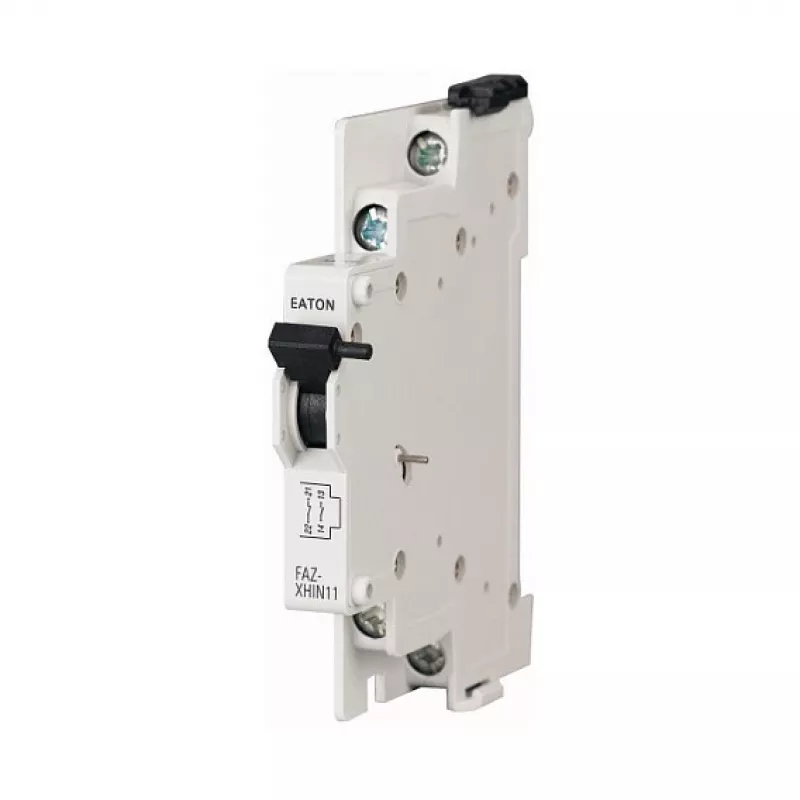

The Eaton FAZ-XHIN11 auxiliary switch provides precise status signaling for FAZ series miniature circuit breakers, delivering one normally open and one normally closed contact for remote indication of ON, OFF, or TRIP states. Its compact side-mounted design integrates seamlessly with existing installations, ensuring reliable monitoring in low-voltage power distribution systems.

Advantages

This auxiliary switch offers exceptional durability with a mechanical life exceeding 1,000,000 operations and an electrical life over 100,000 cycles. Screw terminals accommodate solid or stranded conductors from 0.5 to 2.5 mm², enabling secure and flexible wiring. The IP40 enclosure and IP20 terminal protection safeguard against accidental contact, while compliance with IEC/EN 60947-5-1 guarantees international safety standards.

Suitable for

• Status indication in industrial control panels
• Remote monitoring of MCB position in building automation
• Signaling circuit breaker trip events in critical power systems
• Integration with PLC or SCADA systems for energy management

Key specifications

• Contact configuration: 1 NO + 1 NC
• Rated operational voltage: up to 440 V AC / 220 V DC
• Rated operational current: 3 A @ 240 V AC (AC-15), 1 A @ 24 V DC (DC-13)
• Mounting: side-mounted on Eaton FAZ MCBs
• Terminal capacity: 0.5–2.5 mm² (solid/stranded)
• Degree of protection: IP40 (enclosure), IP20 (terminals)
• Operating temperature: -25°C to +70°C

Recommendations

For reliable remote status indication of Eaton FAZ miniature circuit breakers, the FAZ-XHIN11 auxiliary switch is an ideal choice, offering robust performance and easy installation in demanding industrial environments.
