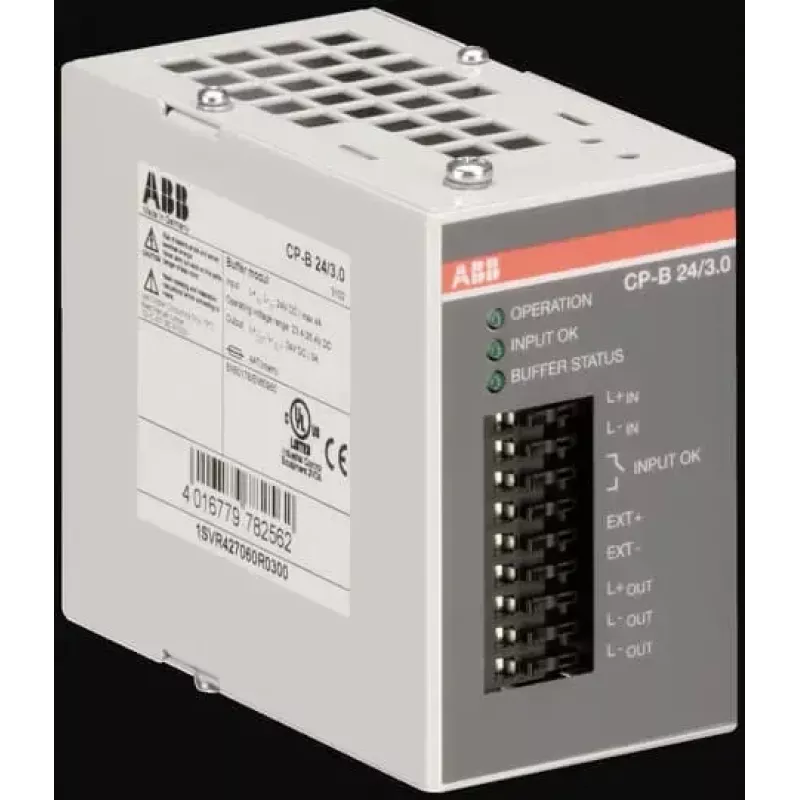

ABB CP-B 24/3.0 módulo de buffer para fontes de alimentação, 24 V DC, 3 A, calha DIN 1SVR427060R0300

Buffer module for 24 V DC power supplies, providing short-term bridging of voltage dips and load fluctuations. With a nominal output current of 3 A and a buffer time of 0.2 seconds at full load, it ensures stable operation of connected loads during brief interruptions.

Advantages

Compact DIN rail housing for easy installation in control cabinets. Integrated overload and short-circuit protection via internal fuse. Wide operating temperature range from -25 to +70 °C.

Suitable for

• Industrial automation systems
• Machinery with sensitive 24 V DC loads
• Applications requiring short-term power backup

Key specifications

• Input voltage: 24 V DC
• Output voltage: 24 V DC
• Output current: 3 A
• Buffer time at 3 A: 0.2 s
• Buffer time at 1.5 A: 0.4 s
• Buffer time at 0.75 A: 0.8 s
• Buffer time at 0.375 A: 1.6 s
• Capacitance: 30000 µF
• Mounting: DIN rail
• Connection: screw terminals
• Degree of protection: IP20
• Operating temperature: -25 to +70 °C

Recommendations

Use with ABB CP series power supplies to ensure reliable buffering in industrial environments.
