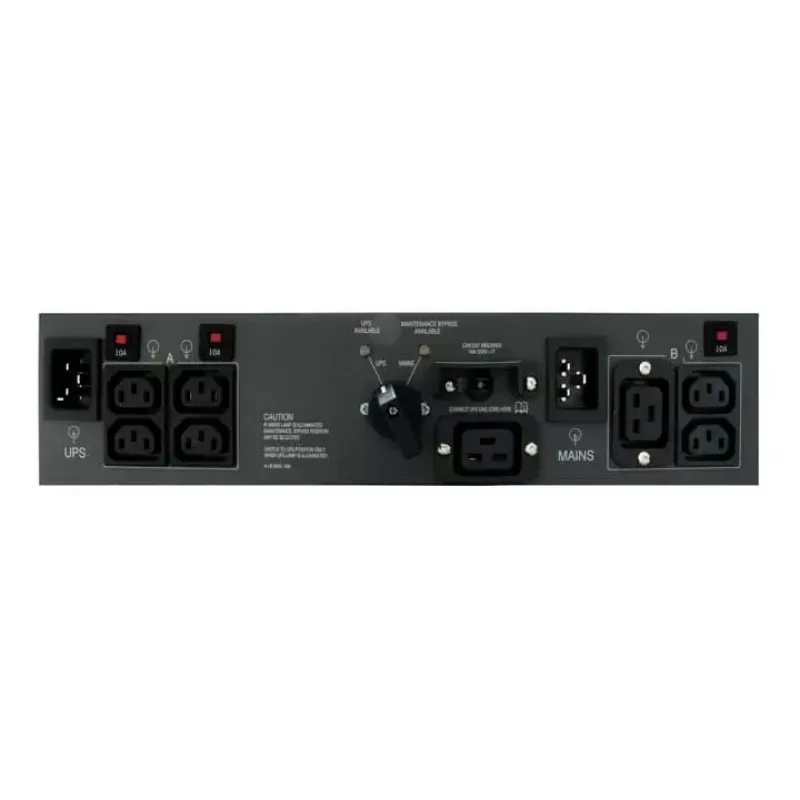

ABB PowerValue 11 RT Bypass PDU 16A - unidade de distribuição de energia rackmount 1U com bypass manual, 1x C19 e 4x saídas C13, entrada IEC C20

Downtime during UPS maintenance can disrupt critical loads, but the ABB PowerValue 11 RT Bypass PDU 16A eliminates that risk by providing a manual bypass path for seamless power continuity. This 1U rackmount power distribution unit is engineered for ABB PowerValue 11 RT UPS systems (1-3kVA), allowing you to route utility power directly to connected equipment while the UPS is serviced or replaced—without interrupting operations.

Who is it for

IT administrators, data center technicians, and facility managers who need to maintain uptime for servers, network gear, and other critical devices during UPS maintenance. Ideal for small server rooms, edge computing sites, and industrial environments where continuous power is non-negotiable.

Main features

• Manual bypass switch for safe UPS isolation without dropping loads
• 1U rackmount form factor with included 19-inch rack mounting kit
• Input: 1 x IEC 60320 C20 (16A, 200-240V AC)
• Outputs: 1 x IEC 60320 C19 and 4 x IEC 60320 C13 (total 16A)
• Power capacity: 3680 VA / 3680 W
• Black metal chassis with power LED indicator
• Operating temperature 0°C to 40°C, humidity 0-95% non-condensing

Specifications

• Product type: Bypass Power Distribution Unit (PDU)
• UPS compatibility: ABB PowerValue 11 RT UPS (1-3kVA)
• Nominal input voltage: 200-240 V AC
• Nominal output voltage: 200-240 V AC
• Input current rating: 16 A
• Output current rating (total): 16 A
• Input connector: 1 x IEC 60320 C20
• Output connectors: 1 x IEC 60320 C19, 4 x IEC 60320 C13
• Rack size: 19-inch, 1U height
• Mounting: Rackmount kit included
• Indicators: Power LED
• Operating temperature: 0°C to 40°C
• Storage temperature: -20°C to 50°C
• Relative humidity: 0-95% (non-condensing)
• Colour: Black
• Chassis material: Metal

Tips

Always verify that the total connected load does not exceed 16A to prevent overloading. When engaging the bypass, follow the UPS manufacturer's procedure to ensure a smooth transfer. Use the included rackmount kit for secure installation in a 19-inch rack, and keep the PDU's ventilation unobstructed for optimal cooling.
