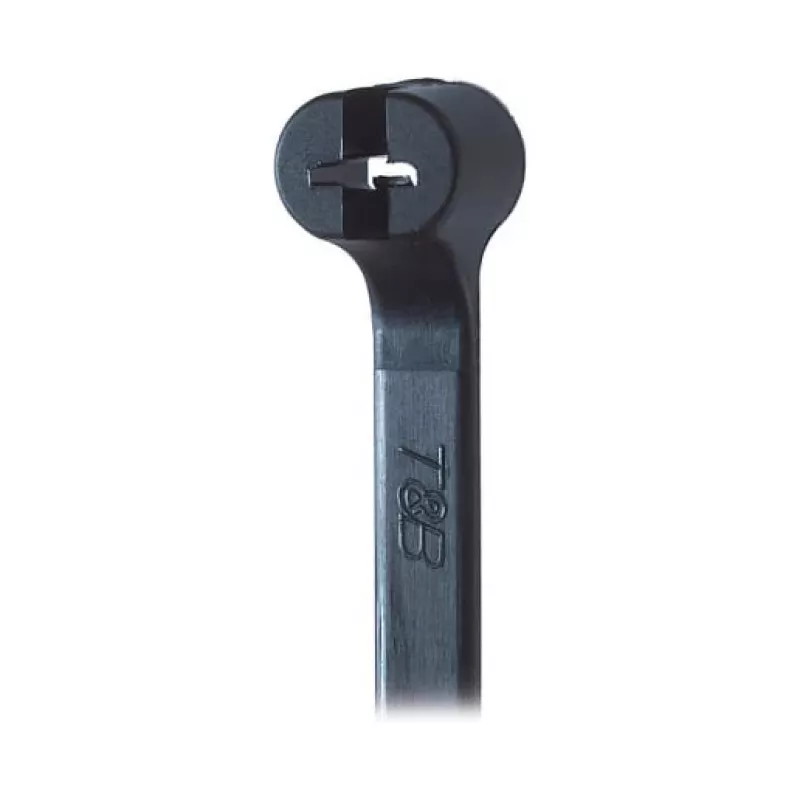

ABB TY-RAP® Abraçadeira 140x3,6 mm preta resistente aos UV TY524MXR (pack de 100)

The ABB TY-RAP® Cable Tie TY524MXR is a high-performance, UV-resistant cable tie designed for reliable bundling and securing of cables in demanding indoor and outdoor environments. Manufactured from durable Polyamide 6.6 with a stainless steel barb locking mechanism, it ensures a secure hold with a tensile strength of 180 N. This pack of 100 ties is ideal for professional electricians, installers, and maintenance teams.

Advantages

UV-resistant for long-term outdoor use; halogen-free and RoHS compliant for environmental safety; wide operating temperature range from -40°C to +85°C; UL 94 V-2 flammability rating for added safety; stainless steel barb provides strong, reliable locking.

Suitable for

• Cable bundling and management in electrical installations
• Securing wires in control panels and junction boxes
• Outdoor cabling for telecommunications and networking
• Fastening cables in automotive and industrial applications

Key specifications

• Product Type: Cable Tie
• Series: TY-RAP®
• Material: Polyamide 6.6 (Nylon 6.6)
• Color: Black
• Length: 140 mm (5.5 inches)
• Width: 3.6 mm (0.14 inches)
• UV Resistance: Yes
• Tensile Strength: 180 N (40 lbs)
• Operating Temperature Range: -40°C to +85°C (-40°F to +185°F)
• Flammability Rating: UL 94 V-2
• Halogen-Free: Yes
• RoHS Compliant: Yes
• Quantity per Pack: 100
• Locking Mechanism: Stainless Steel Barb
• Minimum Bundle Diameter: 1.6 mm
• Maximum Bundle Diameter: 32 mm
• Application: Cable Bundling, Fastening, Securing
• Indoor/Outdoor Use: Outdoor
• Standards: UL Recognized, IEC 62275

Recommendations

For best results, use with ABB cable tie tools for consistent tension and flush cut-off. Suitable for use in cable trays, conduits, and direct burial applications.
