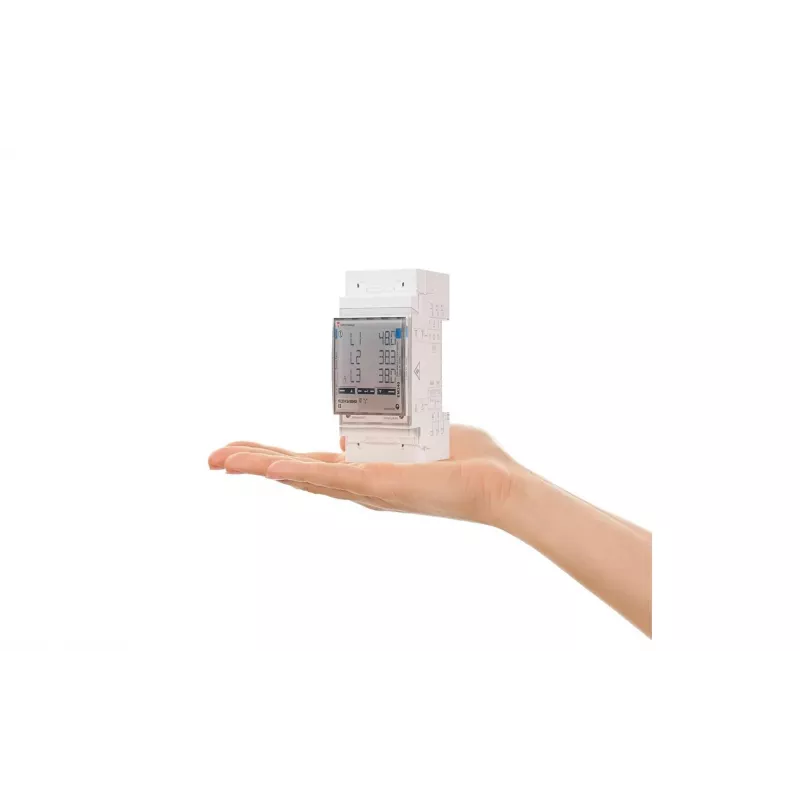

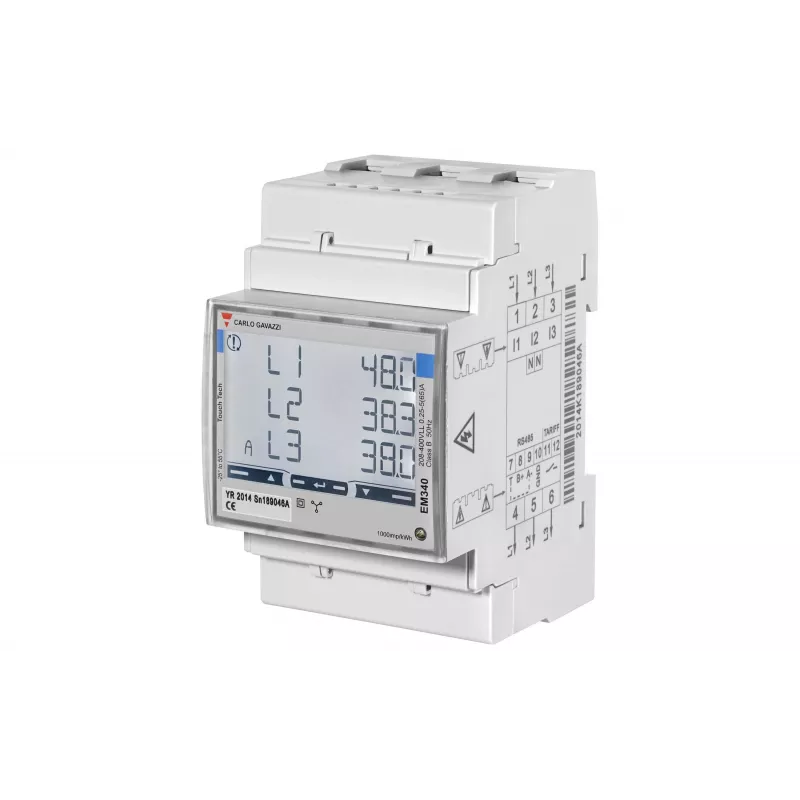

Contador MID ABL 100000495 Pulsar contador externo

Accurate energy monitoring in three-phase installations requires a certified meter that can be easily integrated into existing systems. The ABL 100000495 MID Meter Pulsar External Meter provides reliable measurement of active energy with MID compliance, ensuring legal conformity for billing purposes.

Who is it for

Electricians, facility managers, and system integrators who need a dependable three-phase energy meter for DIN rail mounting in distribution boards or sub-metering applications.

Main features

• Three-phase energy measurement for direct connection up to 80 A
• MID compliant for billing-grade accuracy
• S0 pulse output for integration with energy management systems
• Backlit LCD display for clear reading
• Compact 4-module DIN rail housing

Specifications

• Meter Type: Three-Phase Energy Meter
• Certification: MID (Measuring Instruments Directive) compliant
• Mounting Type: DIN Rail (4 Modules)
• Nominal Current (In): 5 A
• Maximum Current (Imax): 80 A
• Nominal Voltage: 3x230/400 V AC
• Frequency: 50 Hz
• Accuracy Class: Class B (for active energy)
• Display Type: LCD with Backlight
• Display Digits: 6+2 (kWh)
• Output Type: S0 Pulse Output
• Pulse Rate: 1000 imp/kWh
• Energy Measurement: Active Energy (kWh)
• Wiring Type: Direct Connection
• Protection Class: IP20
• Operating Temperature Range: -25°C to +55°C
• Internal Power Consumption: < 2 W / 10 VA per phase
• Terminal Cross-Section: Up to 16 mm²

Tips

Ensure the meter is installed by a qualified electrician and that the S0 pulse output is connected to a compatible input for remote monitoring.
