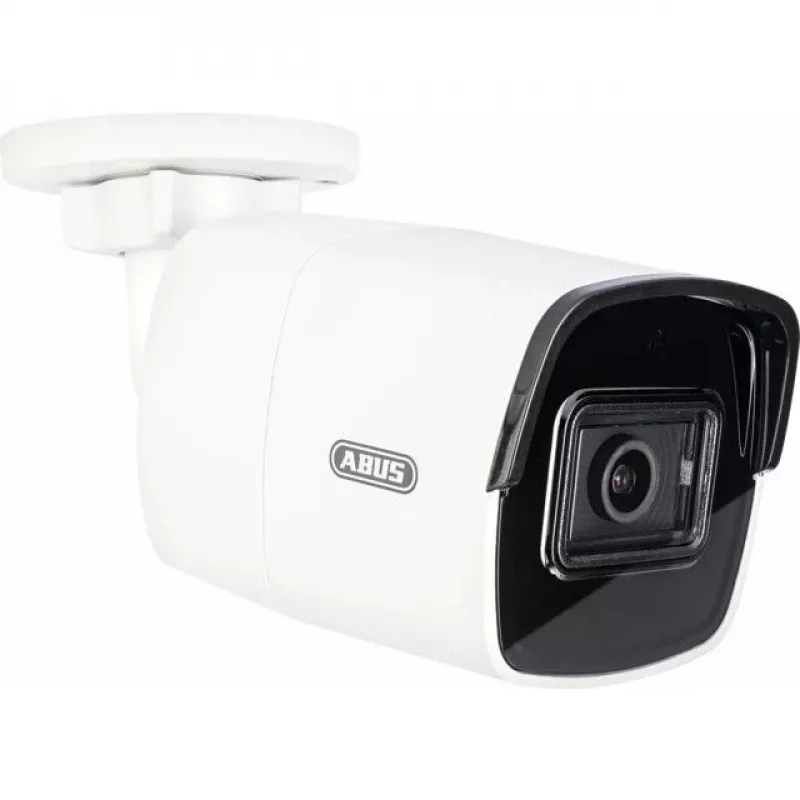

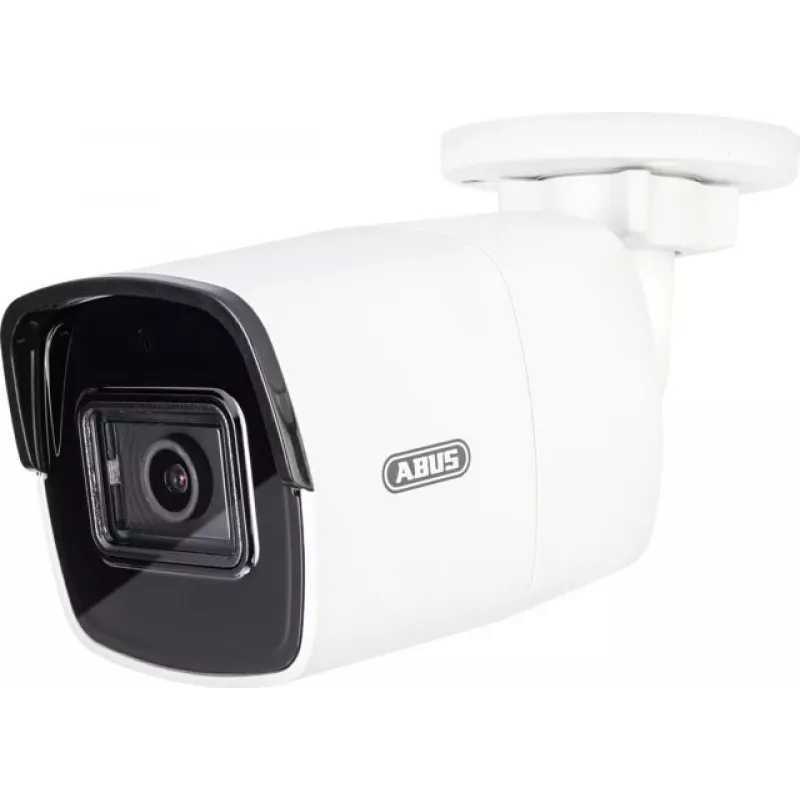

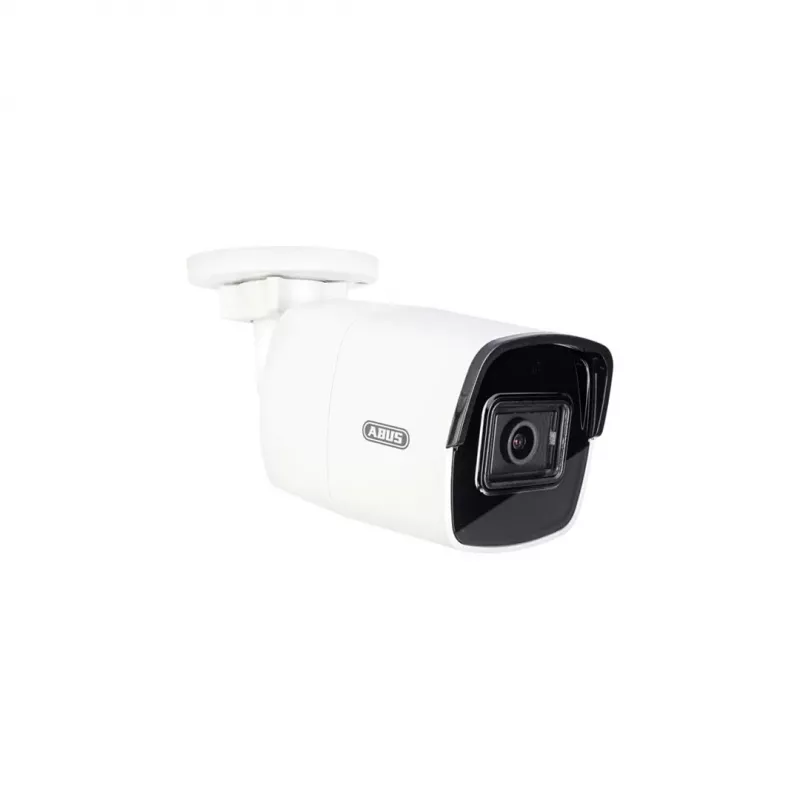

ABUS Câmara IP mini tube 8 MP 2,8 mm

This 8 MP IP mini tube camera delivers crisp 4K UHD video with a 2.8 mm fixed lens, ideal for detailed surveillance in compact spaces. Its 1/2.8" progressive scan CMOS sensor and 120 dB WDR ensure clear images even in challenging lighting, while IR night vision reaches up to 30 m. The rugged IP67-rated housing withstands harsh weather, and built-in microphone captures audio. Power over Ethernet simplifies installation, and local storage via microSD card (up to 256 GB) provides flexible recording options.

Advantages

High-resolution 4K video for precise identification. Wide 108° horizontal field of view covers large areas. Durable weatherproof design for outdoor use. Smart analytics including motion detection and intrusion detection enhance security. H.265 compression reduces bandwidth and storage requirements.

Suitable for

• Outdoor perimeter surveillance
• Entrances and loading docks
• Parking lots and building facades
• Retail and commercial premises
• Residential security

Key specifications

• Sensor: 1/2.8" Progressive Scan CMOS
• Resolution: 8 MP (3840 x 2160)
• Lens: 2.8 mm fixed, F1.6
• Field of view: 108° horizontal
• IR range: up to 30 m
• Video compression: H.265, H.264, MJPEG
• Frame rate: 20 fps @ 8 MP
• Power: 12 V DC, PoE (802.3af), max 6.5 W
• Ingress protection: IP67
• Operating temperature: -30 °C to +60 °C
• Storage: microSD up to 256 GB
• Audio: built-in microphone
• Network: 1x RJ45 10/100 Mbps
• Smart features: motion detection, tampering alarm, line crossing, intrusion detection

Recommendations

For optimal performance, pair with an NVR supporting H.265 and use a PoE switch for simplified cabling. Mount at a height of 3–5 m for best coverage. Regularly check firmware updates to ensure latest security features.
