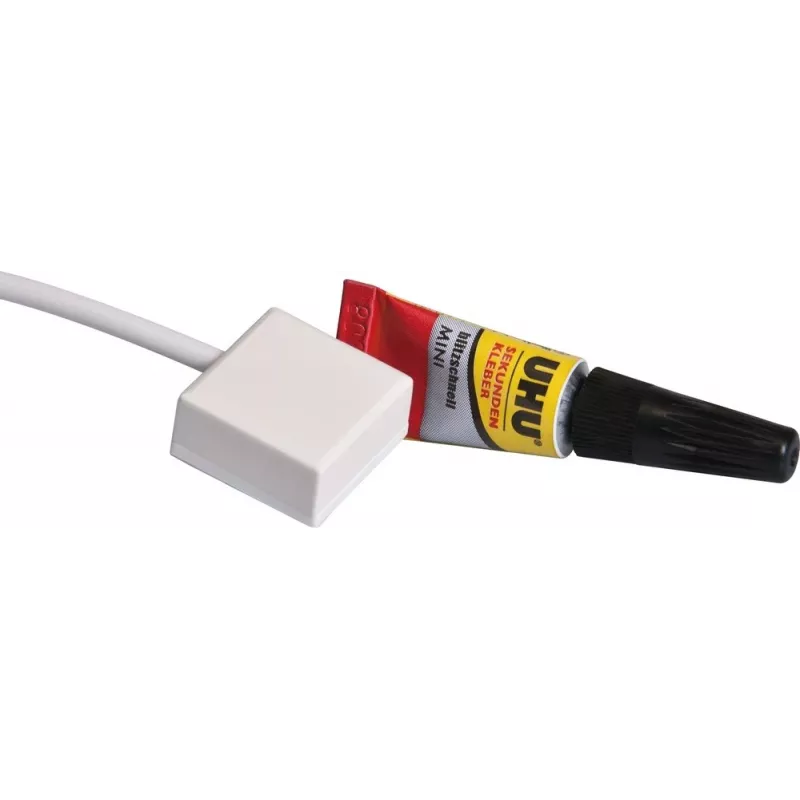

ABUS Security-Center FU7301W Detetor de quebra de vidro sem potencial com almofada adesiva, branco

Imagine a quiet office after hours, a retail storefront with large display windows, or a home with sliding glass doors. The ABUS Security-Center FU7301W glass breakage detector listens for the specific high-frequency sound of breaking glass and triggers an alarm, providing an extra layer of security for vulnerable glazed areas. It is a potential-free detector, meaning its relay output can be integrated into almost any alarm system or used to trigger other devices. The detector comes with an adhesive pad for quick, screw-free mounting on window frames or walls.

Key specifications

• Detection method: acoustic (piezoelectric sensor)
• Detection radius: approx. 2.5 m
• Output: potential-free relay contact (NO/NC selectable)
• Operating voltage: 9–15 V DC
• Current consumption: approx. 10 mA standby, 15 mA alarm
• Alarm output duration: approx. 2 seconds
• Connection: 4-wire cable, approx. 3 m length
• Mounting: surface mount with adhesive pad
• Operating temperature: -10 °C to +50 °C
• Protection class: IP30 (indoor use)
• Housing material: plastic
• Colour: white
• Compatible glass: normal window glass, laminated safety glass, tempered glass
• Max. glass thickness: 6 mm

Why choose it

The FU7301W offers reliable acoustic glass break detection without the need for direct contact with the glass. Its potential-free relay output makes it compatible with virtually any alarm control panel, home automation system, or simple siren circuit. The selectable NO/NC contact allows flexible integration. Installation is effortless thanks to the included adhesive pad.

Ideal use cases

• Securing office windows and glass partitions after business hours
• Protecting retail storefronts with large display windows
• Adding perimeter security to homes with sliding glass doors or conservatories
• Integrating with existing alarm systems for enhanced glass break detection

Good to know

The detector is designed for indoor use only (IP30). It detects the sound of breaking glass within a radius of approximately 2.5 meters, so position it centrally relative to the glass area. The potential-free relay output can be configured as normally open (NO) or normally closed (NC) to suit your system's requirements. The 4-wire cable provides flexibility for connection to power and alarm circuits.
