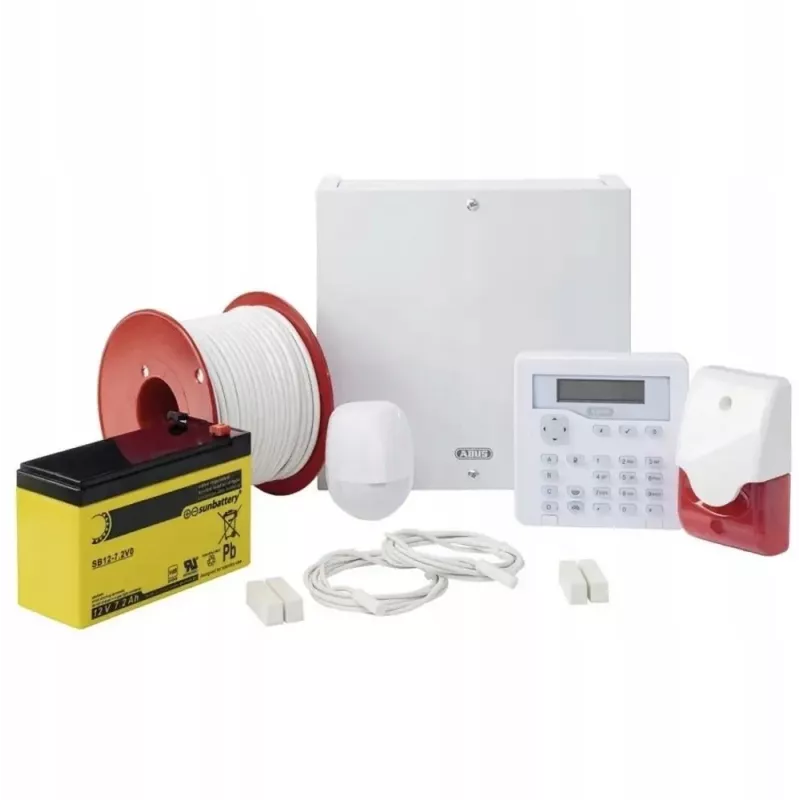

ABUS Terxon SX Central de alarme com fios com 8 zonas (AZAA10100)

For a small business owner securing a retail shop or a homeowner protecting a detached house, the ABUS Terxon SX wired alarm panel delivers dependable intrusion detection without complexity. This control unit forms the core of a hardwired security system, offering eight onboard zones for door contacts, motion detectors, or glass break sensors, plus a dedicated tamper zone to guard the housing itself. The panel runs on 230V AC mains and supports a 12V 7Ah backup battery (sold separately) to keep protection active during power cuts.

Key specifications

• 8 wired alarm zones, expandable to 32 with additional modules
• 1 tamper zone for housing protection
• 3 programmable transistor outputs (500mA each)
• 1 relay output (1A) for sirens or strobes
• Integrated PSTN dialer for alarm calls
• Supports up to 4 keypads and 8 user codes
• Event log capacity: 256 entries
• Metal housing, operating temperature -10°C to +40°C
• VdS Home certified (G109003)

Why choose it

Wired systems remain the most tamper-resistant and maintenance-free option for permanent installations. The Terxon SX offers professional-grade features like transistor and relay outputs for controlling external devices, and its PSTN dialer can notify you or a monitoring station by phone. The optional IP module (ABUS AZAA10000) adds network connectivity for remote management. With VdS Home certification, you get a panel tested to European security standards.

Ideal use cases

• Securing small shops, offices, or workshops
• Protecting homes with wired sensor infrastructure
• Upgrading an existing wired alarm system
• Installations requiring certified alarm transmission

Good to know

Installation requires basic electrical knowledge; a qualified technician is recommended. The panel is supplied without a backup battery, keypads, or sensors—these must be ordered separately. The metal housing ensures durability, and the wide operating temperature range suits unheated areas like garages.
