Acessório de objetiva para câmaras de segurança AXIS 03141-001 — distância focal 21,4 mm, ângulo de visão horizontal 19,9°, preto, pack de 4

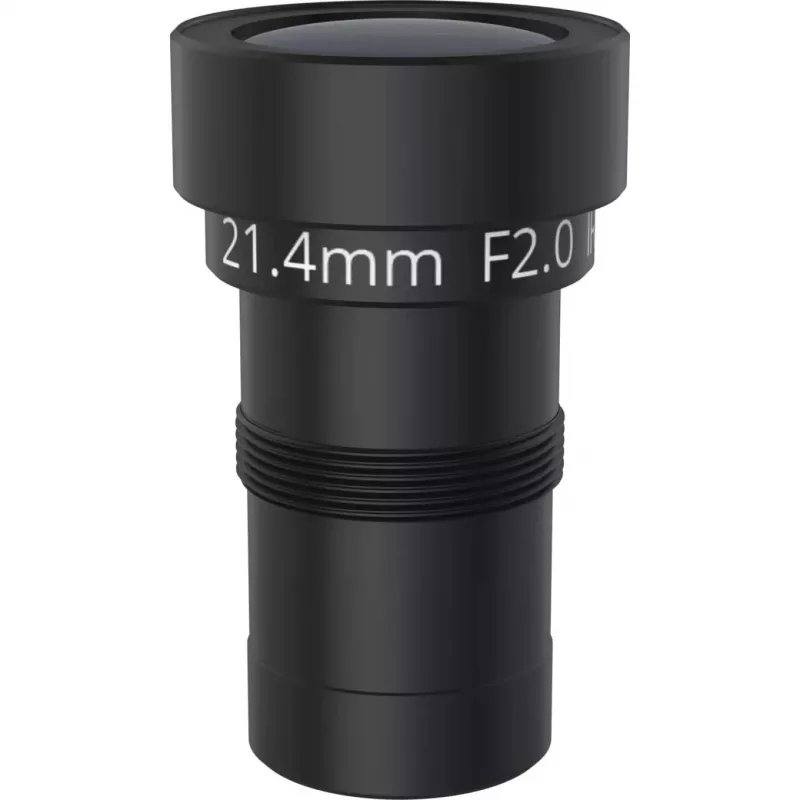

Lens M14 21.4 mm F2.0 IR is a fixed lens designed for use with AXIS Q6300-E and Q6020-E panoramic cameras. It delivers a 19.9° horizontal field of view (HFoV), making it suitable for monitoring a specific region of interest such as perimeters or highways. The lens is IR‑compensated, allowing visible and infrared light to be in focus simultaneously without the need to refocus.

Advantages

The IR compensation ensures sharp images in both visible and infrared illumination conditions. The narrow 19.9° HFoV provides targeted surveillance capability for distant or specific areas. Compatibility with AXIS Q6300-E and Q6020-E cameras enables easy integration into existing panoramic surveillance setups.

Key specifications

• Model: Lens M14 21.4 mm F2.0 IR
• Focal length: 21.4 mm
• Aperture: F2.0
• Horizontal field of view (HFoV): 19.9°
• IR compensation: Yes (visible and IR light focus matched)
• Compatible with: AXIS Q6300-E, AXIS Q6020-E panoramic cameras
• Type: Fixed lens

How to use

Mount the lens on a compatible AXIS Q6300-E or Q6020-E camera following the camera manufacturer’s mounting instructions. Aim the camera to cover the desired region of interest and secure the lens assembly. Adjust the camera orientation and zoom settings (if applicable) to frame the target area; no additional focus adjustment is required when switching between visible and IR illumination due to IR compensation.

Recommendations

Use this lens for targeted surveillance of distant or narrow areas such as perimeters, checkpoints, or highway lanes. Verify camera firmware compatibility and follow AXIS installation guidelines to ensure optimal performance.
