Acessório para cabo Bachmann 930.033 — prateado, espessura 2,4 cm, largura 90 mm

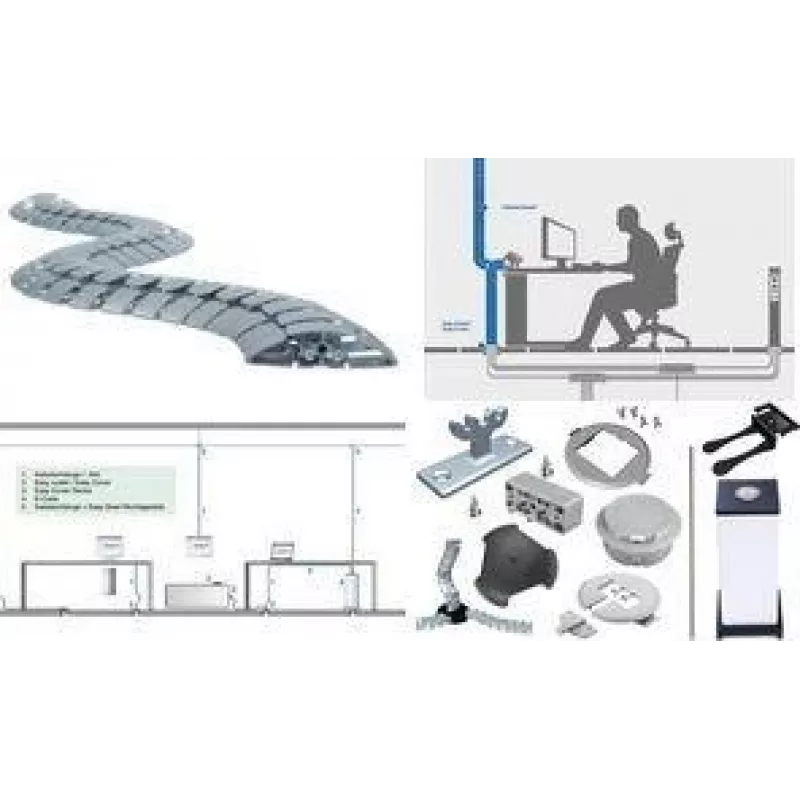

Bachmann 930.033 is a silver cable accessory designed to manage and protect cables in office and home environments. The product features a two-chamber system that separates data and power cables, reducing interference and improving cable organization. Constructed for increased resistance to foot traffic, it integrates with Bachmann systems and is compatible with Kabelschlange® Classic for flexible installation options.

Advantages

The two-chamber design provides defined channels for data and power lines, supporting safer and neater cable routing. A reinforced structure increases resistance to being stepped on, making it suitable for areas with regular pedestrian movement. The modular chain-link arrangement allows sections to be pushed together or separated to adjust length as needed while maintaining stable load-bearing capability for short-term loads. Compatibility with Kabelschlange® Classic enables straightforward extension or replacement within existing cable-management setups.

Suitable for

• Office cable routing and desk installations
• Home media centers and entertainment hubs
• Workspaces where separation of power and data cables is required
• High foot-traffic passages where increased resistance to stepping is needed

Key specifications

• Finish: silver
• Thickness / height: 2.4 cm
• Width: 90 mm
• Two-chamber system for separate cable paths
• 34 chain links; configuration allows compression and extension
• Length when separated: approx. 100 cm; pushed together: approx. 70 cm
• Five-link section rated for short-term loads up to 120 kg

How to use

Place the cable accessory along the intended route and guide cables into the separate chambers to keep power and data lines apart. Use the modular chain links to set the required length by separating or pushing segments together, then secure the ends to compatible mounting points or connect directly to Kabelschlange® Classic where applicable. Ensure cables are routed without excessive bending and that the assembly is positioned so that the reinforced side faces expected foot traffic for optimized protection.

Recommendations

For sustained load-bearing applications, avoid constant heavy loads; the five-link rating applies to short-term loads only. Regularly inspect the chain-link connections and cable placement to ensure the separation between data and power lines is maintained and replace any worn sections to preserve performance.
