Acessório para rack EFB Elektronik PRO-SOE200N.GR

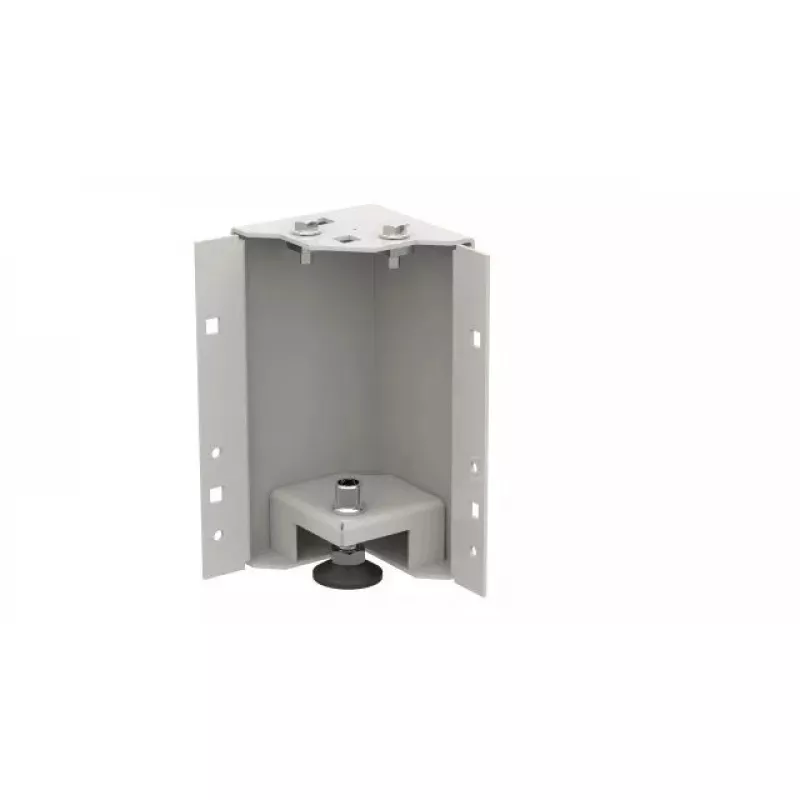

The EFB Elektronik PRO-SOE200N.GR set contains four stable plinth corners designed to raise and stabilise server and equipment racks. Each corner is made from steel sheet with a paint finish in RAL7035 (light grey) and is levellable to accommodate uneven floors. The set is intended for use with matching plinth covers (PRO-SOBxx) and is CE certified.

Advantages

Constructed from steel sheet for durability and stability, the plinth corners provide a uniform 200 mm plinth height and allow height adjustment to ensure stability on uneven surfaces. The painted finish in RAL7035 offers corrosion resistance and a consistent appearance when combined with compatible plinth covers. The product is CE certified and supplied as a set of four corners for individual assembly.

Suitable for

• Raising and stabilising server racks and network cabinets
• Integration with plinth covers PRO-SOBxx
• Installations on uneven floors requiring levelling

Key specifications

• Manufacturer: EFB Elektronik
• Model / MPN: PRO-SOE200N.GR
• Plinth height: 200 mm
• Material: Steel sheet
• Finish: Paint RAL7035 (light grey)
• Certification: CE
• Pack contents: 4 plinth corners (individual assembly)
• Colour: Grey
• EAN: 4049759219963

How to use

Fit the four plinth corners to the base of the rack or cabinet according to the manufacturer’s instructions, then attach appropriate PRO-SOBxx plinth covers if required. Adjust the levelling mechanism on each corner to achieve an even, stable installation on the floor. Ensure all fixings are tightened and the rack is checked for stability before placing equipment inside.

Recommendations

Use the PRO-SOE200N.GR set together with compatible PRO-SOBxx plinth covers for a finished appearance and improved protection. Verify floor load capacity and follow local installation standards and the rack manufacturer’s guidelines when levelling and securing equipment.
