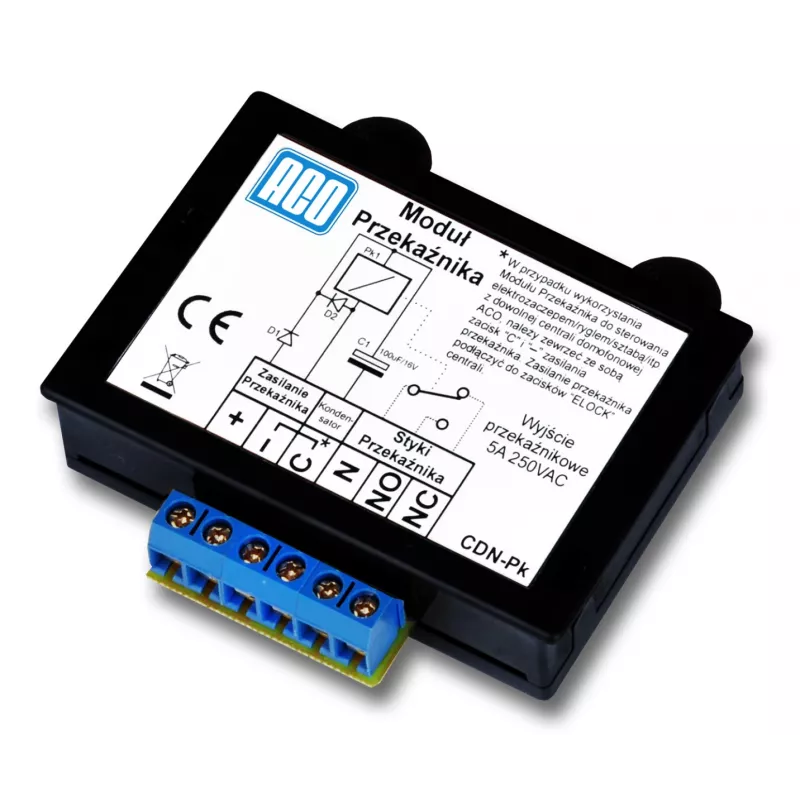

ACO CDN-PK Módulo de relé universal, ligação de fechadura

The ACO CDN-PK is a universal relay module designed for intercom and access control systems. It enables reliable control of external devices such as gates, doors, and lighting, and is compatible with the ACO CDN/CDNP series. The module features a potential-free relay with NO/NC contacts, configurable via jumpers for monostable, bistable, or time-controlled operation.

Advantages

Easy surface mount installation with screw terminal connections. Jumper-selectable modes provide flexibility for various applications. Compact design fits seamlessly into existing setups.

Suitable for

• Access control systems
• Gate and door control
• Lighting control
• Integration with ACO CDN/CDNP series

Key specifications

• Product Type: Relay Module
• Number of Relays: 1
• Relay Type: Potential-free (NO/NC)
• Max Switching Voltage (DC): 30V DC
• Max Switching Current (DC): 1A
• Max Switching Voltage (AC): 125V AC
• Max Switching Current (AC): 0.5A
• Power Supply: 12V DC (from bus or external)
• Configuration Method: Jumper Selectable
• Connection Interface: Screw Terminals
• Mounting Type: Surface Mount
• Operating Temperature Range: -20°C to +50°C
• Enclosure Material: ABS Plastic
• Color: White/Grey

Recommendations

For optimal performance, use with ACO CDN/CDNP series systems. Ensure proper jumper configuration before installation.
