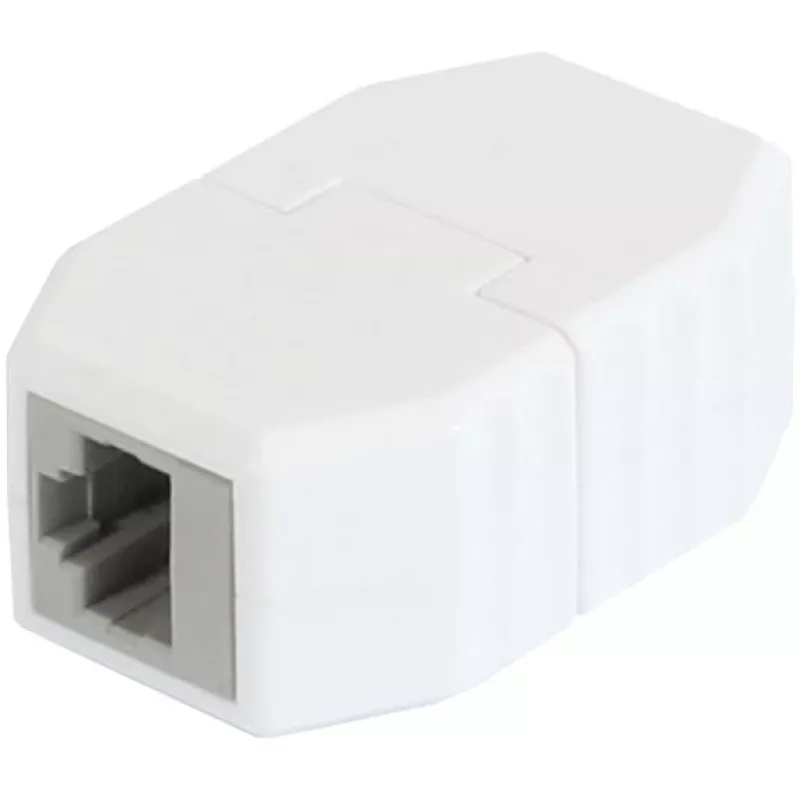

Acoplador RJ45 ALLNET TP-TP CAT6A 8 pinos magnético compatível com PoE 10G

Inline RJ45 coupling from ALLNET designed for TP-to-TP connections with CAT6A cabling support. The coupling incorporates 8-pin magnetic contacts and is PoE capable, allowing straightforward extension or repair of Ethernet runs without reterminating cable ends. It supports data rates up to 10G, making it suitable for modern office, server-room, and structured-cabling environments where maintaining signal integrity and power-over-Ethernet functionality is important.

Advantages

The ALLNET RJ45 coupling provides a compact, tool-free solution for joining two Ethernet cables while preserving 8P8C pin alignment and magnetic coupling for improved signal conditioning. PoE capability ensures connected devices can receive power where a direct feed is needed, and CAT6A compatibility allows the coupling to handle higher bandwidths up to 10 gigabits per second. Its inline form factor minimizes space requirements and simplifies temporary or permanent network extensions and repairs.

Suitable for

• Extending Ethernet runs in office and home networks
• Repairing damaged RJ45 cable ends without retermination
• Creating temporary network links for events or testing
• Maintaining PoE feeds to IP phones, wireless access points, and security cameras
• Use in server rooms and structured-cabling installations supporting CAT6A and 10G

Key specifications

• Connector type: inline RJ45 coupling for 8P8C plugs
• Cable category compatibility: CAT6A (backward compatible with lower categories)
• Data rate support: up to 10 Gbps

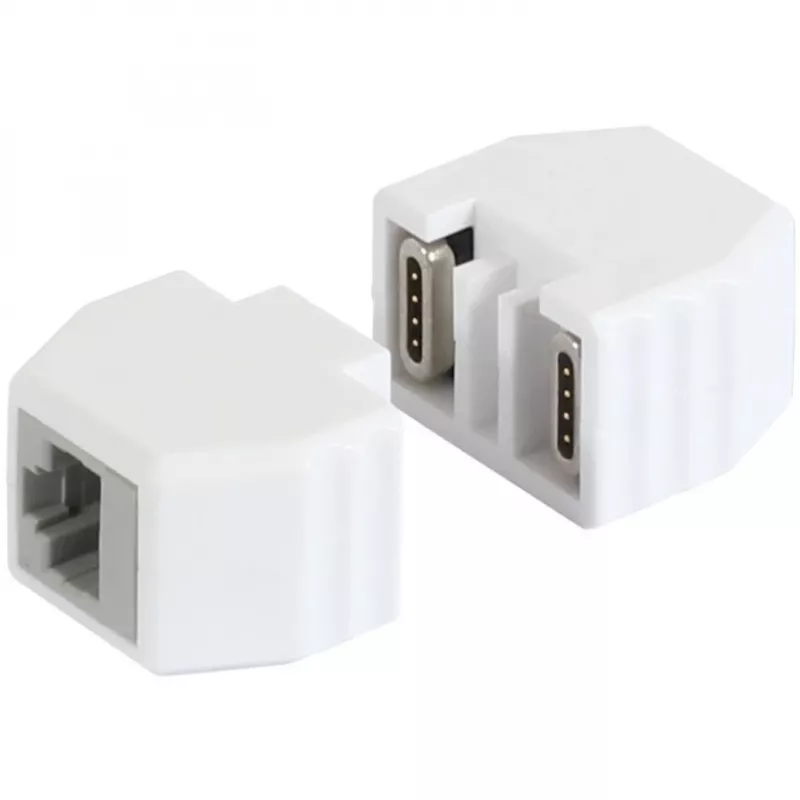

• Contacts: 8-pin magnetic coupling for improved signal integrity
• Power capability: supports Power over Ethernet (PoE) standards
• Form factor: compact inline adapter for easy installation

How to use

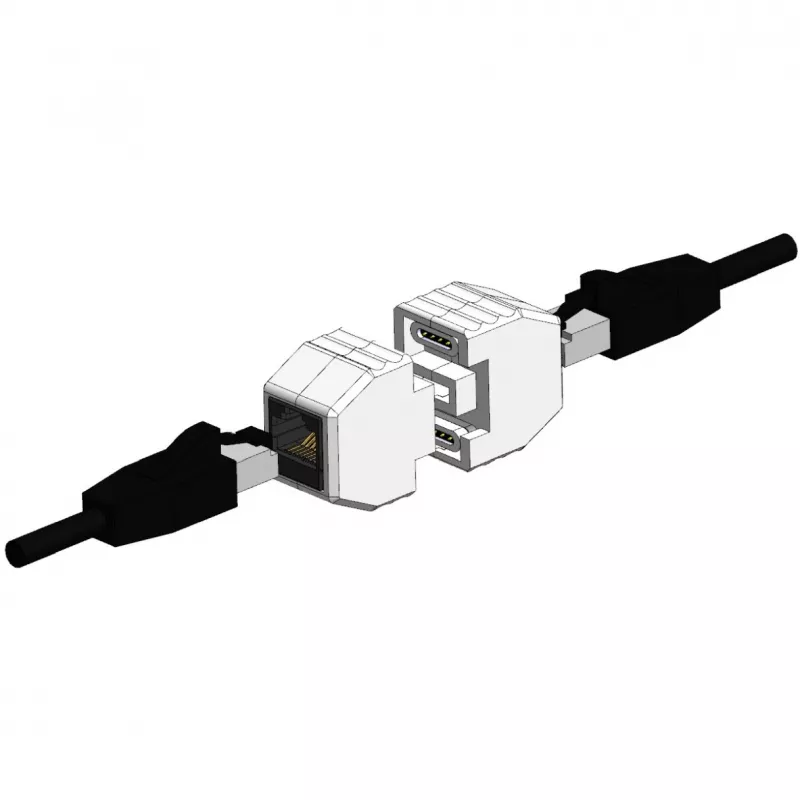

Insert one RJ45 plug from each Ethernet cable firmly into the coupling’s ends until both plugs click into place. Verify that the connector latches engage and that cable shielding or strain relief (if present) is properly positioned. After connecting, test the network link and PoE functionality with appropriate network diagnostic tools or the end device to confirm data and power transmission. To disconnect, depress the plug latch and pull the cable straight out to avoid damaging connector contacts.

Recommendations

Use the coupling in environments matching the cable category and data-rate requirements; avoid using it in exposed outdoor locations without additional protection. For permanent installations, ensure connectors and cable terminations meet local cabling standards and consider professional installation for critical network segments. When using PoE, confirm the power class and budget of the supplying device to prevent overloading downstream equipment.
