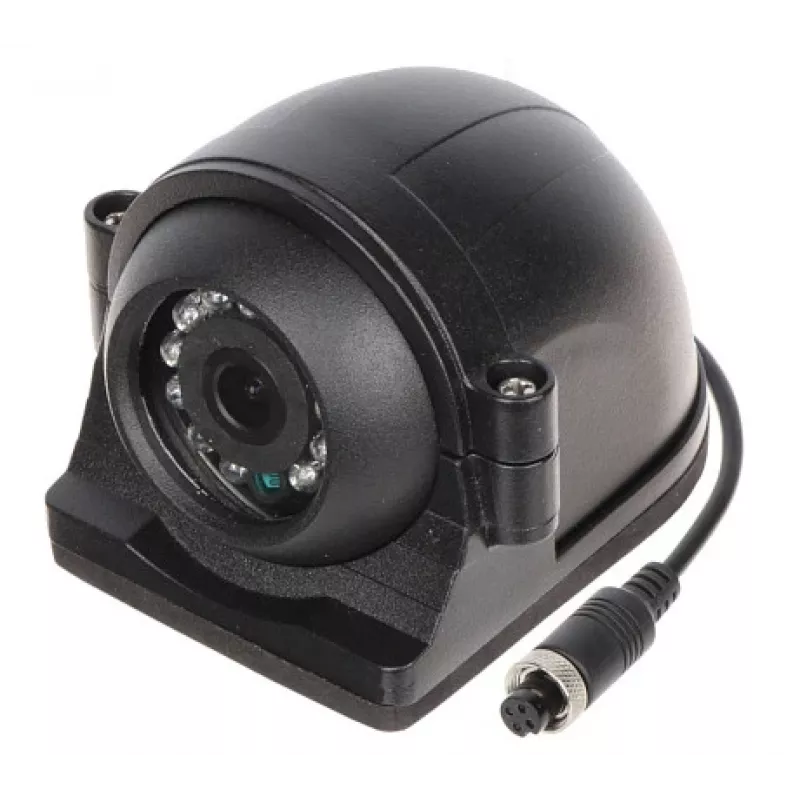

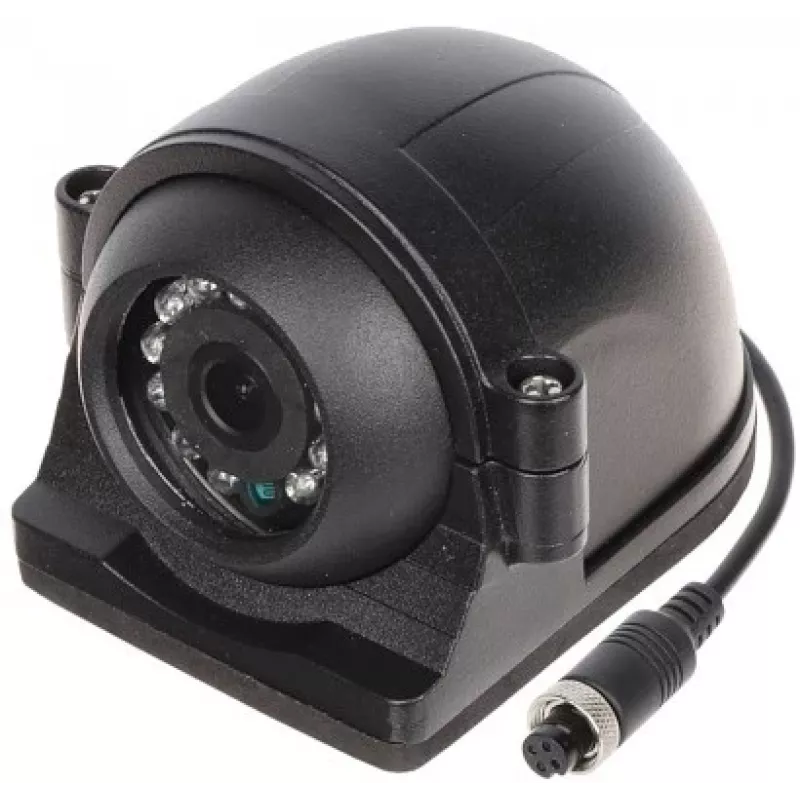

Câmara AHD móvel AUTONE ATE-CAM-AHD735HD, 1080p, objetiva de 2,8 mm, IR até 10 m

Blind spots on vehicles and machinery pose serious safety risks, but the ACTION ATE-CAM-AHD735HD Mobile AHD Camera eliminates them with crisp 1080p Full HD video. Its rugged IP68-rated aluminum housing shrugs off dust, water, and extreme temperatures, making it a dependable eye for any mobile or outdoor installation.

Who is it for

Fleet managers, truck owners, construction equipment operators, and security professionals who need a compact, robust camera to monitor blind spots, loading areas, or trailer interiors. The adjustable surface-mount bracket allows easy installation on any vehicle or structure.

Main features

• 1080p Full HD resolution with a 1/2.9" CMOS sensor for sharp, detailed images
• 105° horizontal viewing angle covers a wide area around your vehicle
• Built-in IR LEDs provide night vision up to 15-20 meters, ensuring 24/7 visibility
• IP68 ingress protection keeps out dust and water, perfect for outdoor and mobile use
• Switchable AHD 1080p / CVBS 960H output and PAL/NTSC compatibility for maximum flexibility

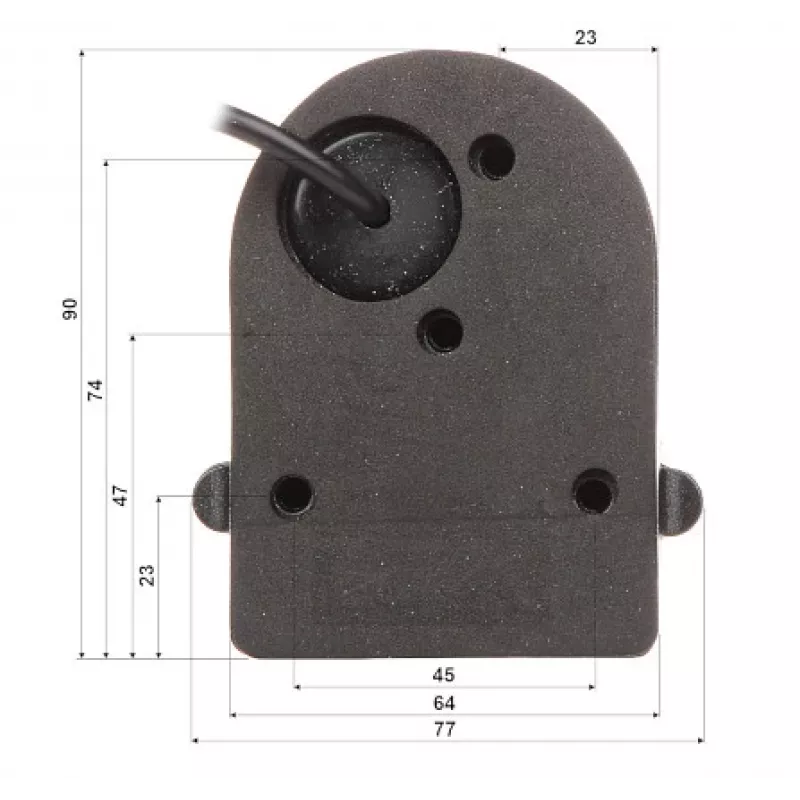

• Aluminum alloy housing with adjustable mounting bracket for secure installation

Specifications

• Image Sensor: 1/2.9" CMOS, 1920 x 1080 effective pixels
• Lens: Fixed 2.8mm, FHD angle
• Minimum Illumination: 0 Lux (IR on)
• IR Range: Up to 15-20 meters
• Video Output: AHD 1080p / CVBS 960H (switchable)
• TV System: PAL/NTSC
• Power: DC 12V, max 3W with IR
• Housing: Metal (aluminum alloy)
• Operating Temperature: -20°C to +70°C
• Ingress Protection: IP68

Tips

For optimal night vision, ensure the camera is mounted at a height that allows the IR LEDs to illuminate the target area without obstruction. When switching between AHD and CVBS modes, verify that your DVR or monitor supports the selected format to avoid signal loss.
