Adaptador ALLNET MKR Brick ALL-BRICK-0707 para Arduino MKR — placa breakout para módulos formato MKR

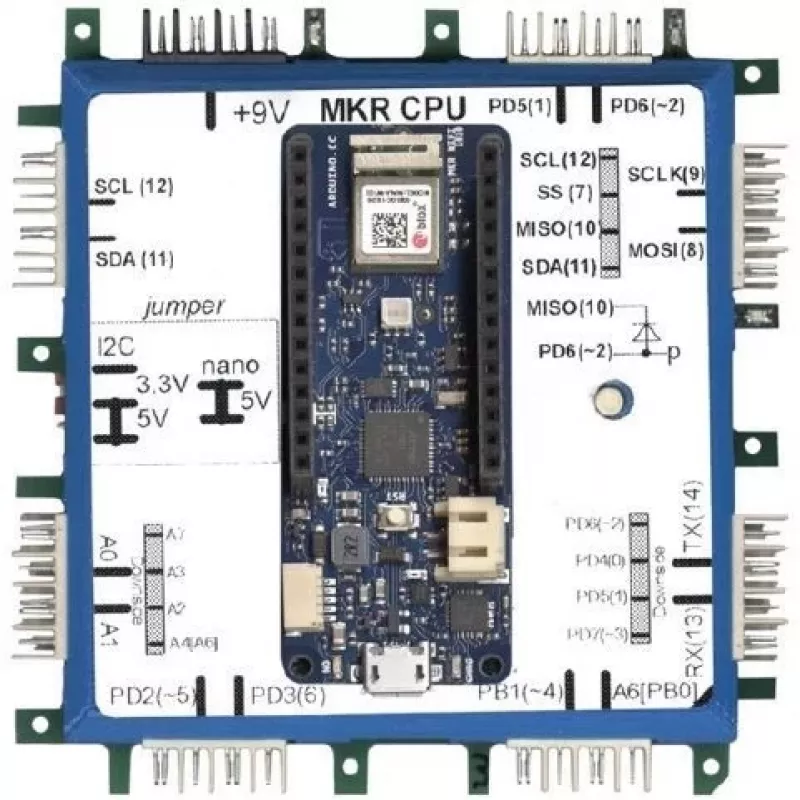

Adapter ALLNET MKR Brick ALL-BRICK-0707 for Arduino MKR is a breakout board designed to expose and organize the pins and common connections of MKR form-factor modules. The board converts the compact MKR pin layout into accessible headers and pads, making it easier to connect sensors, actuators, power supplies and communication lines during prototyping or when integrating MKR modules into larger systems. The adapter supports standard signal lines, power rails and common interfaces used on MKR boards to streamline wiring and testing.

Advantages

The adapter simplifies access to MKR module pins by breaking out signal, power and ground lines to clearly labeled headers and test pads, reducing wiring errors. Its compact footprint preserves the MKR form factor while adding practical connection points for breadboards, jumper wires and external peripherals. The organized layout speeds up prototyping and debugging by grouping related signals and providing stable mechanical support for the module during development.

Suitable for

• Rapid prototyping with Arduino MKR modules
• Testing sensors, actuators and communication peripherals
• Integrating MKR modules into IoT and embedded systems
• Educational projects and laboratory experiments

Key specifications

• Form factor: compatible with Arduino MKR standard pin layout
• Connection types: exposed headers and solder pads for signal, power and ground
• Supported interfaces: general-purpose I/O, power rails, common communication lines
• Physical characteristics: compact breakout board that preserves MKR footprint for mechanical compatibility

How to use

Mount the MKR module onto the adapter by aligning the module pins with the corresponding headers and press gently until fully seated. Connect power and ground lines from your supply to the adapter headers, then attach sensors, actuators or communication lines to the exposed signal headers or solder pads. Use standard jumper wires or soldered connections depending on whether you require temporary or permanent wiring. During development, verify pin assignments and power levels before applying full system power.

Recommendations

Use the adapter on a stable work surface and ensure correct orientation of the MKR module before powering the circuit. For temporary setups prefer jumper cables; for permanent installations use soldered connections. Observe voltage and current limits of the MKR module and connected devices and add appropriate level shifting or protection when interfacing with signals outside the module’s rated ranges.
