Adaptador Barrow TX360PX-21 S 360° G1/4 polegadas 21 mm offset prateado – conector para refrigeração líquida

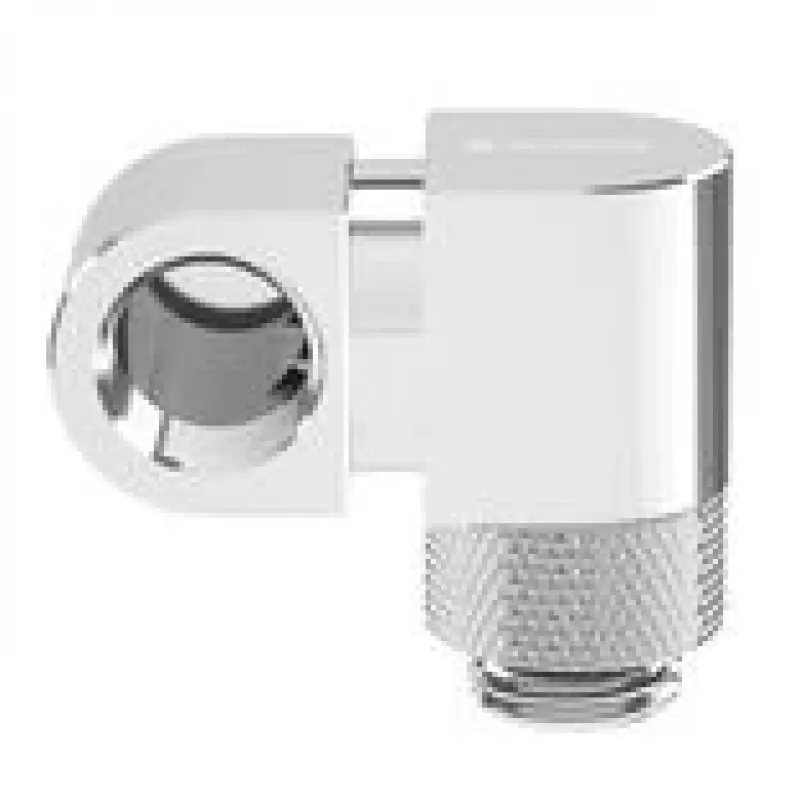

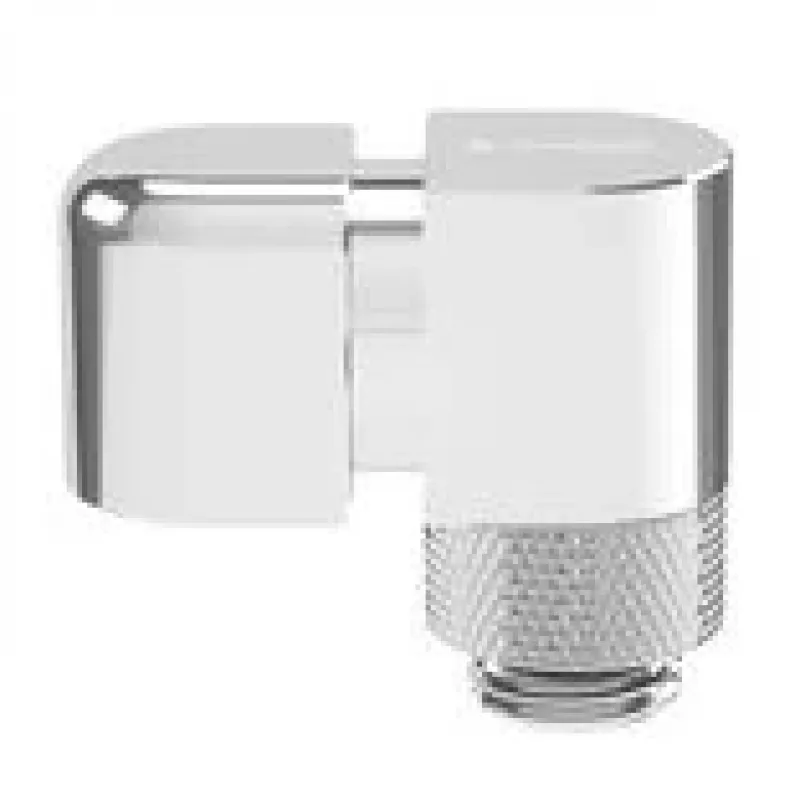

Barrow TX360PX-21 S is a 360° rotary adapter with a G1/4" thread and a 21 mm offset in a silver finish, engineered for liquid cooling applications in PC builds. The adapter permits full rotation while maintaining a sealed connection, enabling compact routing of tubing or fittings in confined spaces. Designed for standard G1/4" threaded water-cooling components, it reduces mechanical stress on hoses and simplifies alignment between blocks, radiators and reservoirs.

Advantages

The 360° swivel action allows unrestricted orientation after installation, providing precise alignment without twisting hoses. The 21 mm offset creates additional clearance where direct connections would interfere with other components or obstruct airflow. The silver finish offers corrosion resistance consistent with typical metal fittings and a neutral aesthetic that integrates with various system designs. The adapter is compatible with common G1/4" fittings used in PC liquid cooling loops.

Suitable for

• Routing coolant lines in tight case interiors where space is limited
• Connecting water blocks to radiators or pumps with offset requirements
• Orienting fittings to avoid contact with motherboard components or expansion cards
• Retrofit upgrades where existing tubing alignment must be adjusted without reworking components

Key specifications

• Thread type: G1/4" compatible connection
• Rotation: 360-degree swivel for full orientation adjustment
• Offset: 21 mm lateral offset for clearance and routing
• Material/finish: metal construction with silver surface finish
• Application: designed for PC liquid cooling loops and components

How to use

Install the adapter by hand-threading it into the corresponding G1/4" port on the component until finger-tight, then use an appropriate wrench to secure it without over-torquing. After initial tightening, rotate the adapter to the desired orientation to align tubing or subsequent fittings. Ensure sealing surfaces and any used O-rings are properly positioned before final tightening to prevent leaks. After assembly, pressurize and inspect the cooling loop for leaks according to standard leak-testing procedures.

Recommendations

Use compatible G1/4" fittings and check for material compatibility with your coolant. Avoid excessive torque when securing the adapter to prevent damage to threads or sealing elements. Perform a leak test with the system powered off and follow manufacturer guidance for maintenance intervals and coolant replacement.
