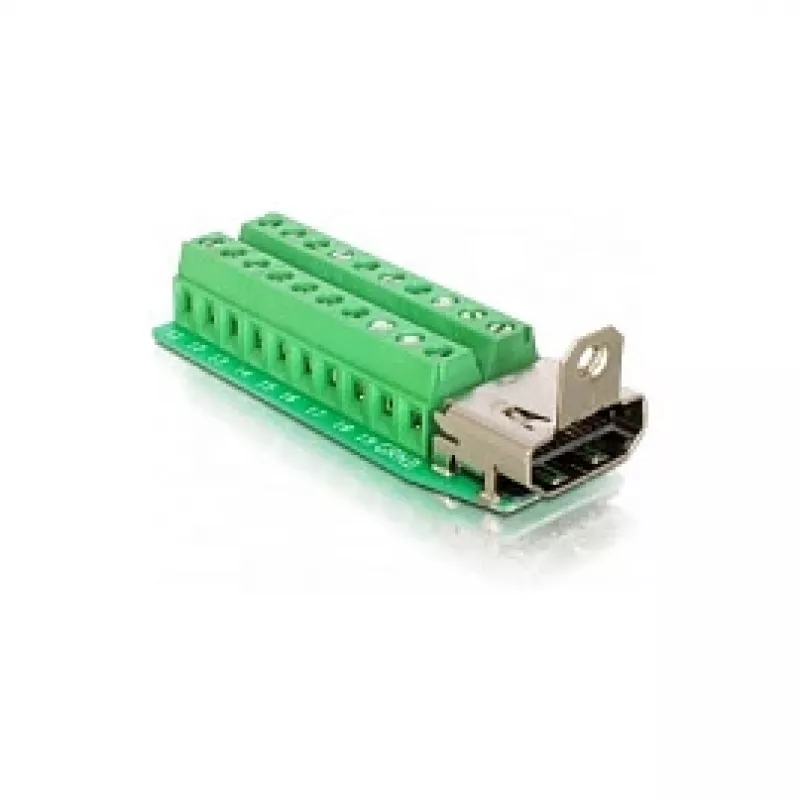

Adaptador conector fêmea HDMI para barra de terminais de 20 polos DeLOCK 65168

The DeLOCK Adapter HDMI female to Terminal Block 20pin (model 65168) converts a standard HDMI connection into a 20‑pin terminal block interface, enabling connection of individual wires with open cable ends for industrial or custom installations. It is intended for applications where HDMI signals need to be routed through a terminal block for flexible wiring and integration.

Advantages

This HDMI to Terminal Block adapter provides a compact solution for connecting HDMI devices to terminal blocks without soldering. The adapter supports transmission of high‑definition video and audio signals through a standard HDMI female connector and a 20‑pin terminal block, offering durable mechanical contact suitable for custom cabling and industrial setups.

Suitable for

• Custom installation projects requiring HDMI termination to individual wires
• Industrial equipment integration where terminal block wiring is used
• Prototyping and testing of HDMI signal wiring

Key specifications

• Brand: DELOCK
• Model / MPN: 65168
• Connector 1: HDMI female, 20‑pin
• Category: Cable interface and gender adapters
• EAN: 4040849933752

How to use

Insert an HDMI male plug into the HDMI female connector on the adapter. Strip the insulation from the individual wires to expose the conductors and insert them into the corresponding terminal block positions according to your wiring diagram. Secure each wire in the terminal block, ensuring firm contact. Verify signal wiring and polarity before powering connected devices.

Recommendations

Use this adapter in low‑voltage HDMI signal environments and follow standard HDMI wiring assignments when connecting individual conductors. For permanent or vibration‑prone installations, ensure wires are strain‑relieved and periodically check terminations for secure contact.
