Adaptador de cabo de vídeo DELOCK 61855 0,23 m DisplayPort DVI-I preto

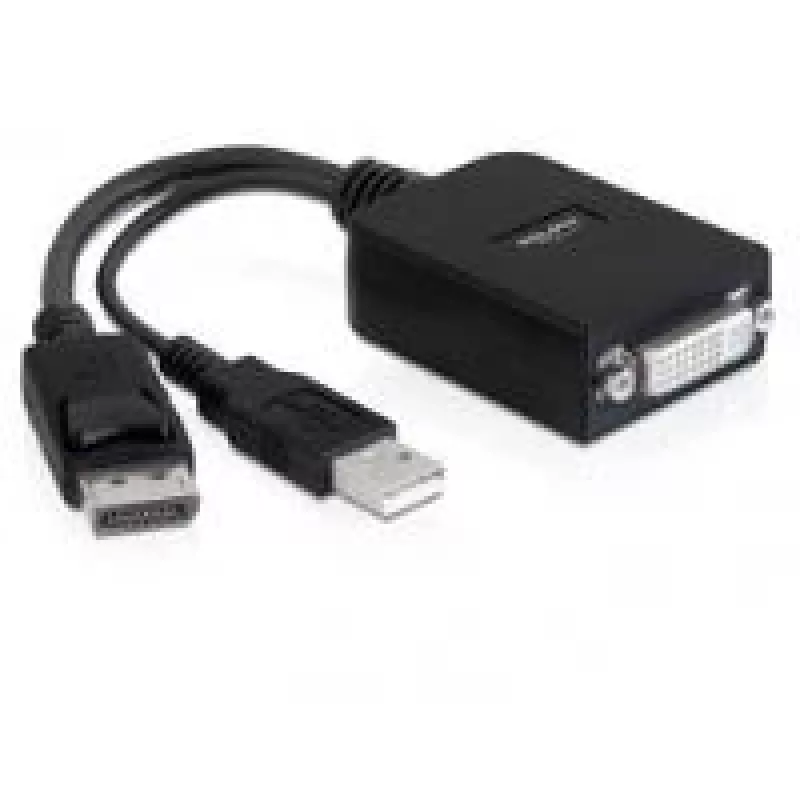

The DeLOCK 61855 active DisplayPort to DVI-I adapter allows connection of an additional DVI display, for example a monitor, to a PC with DisplayPort output. The adapter is externally powered via a USB-A port and supports use with ATI Eyefinity technology to connect up to three DVI displays to a compatible AMD Radeon HD 5000 series graphics card. The compact black cable measures approximately 23 cm including connectors and provides a resolution up to 1920 x 1200 without requiring driver installation.

Advantages

The adapter converts a 20‑pin DisplayPort male signal to a DVI‑I 24+5 female interface and includes a USB‑A power lead so no additional power source is required. It features a DVI‑I Dual Link connector with screw nuts for secure mounting and is OS independent, functioning without driver installation. Its support for ATI Eyefinity Multi‑Display technology enables multi‑monitor setups on compatible AMD graphics cards.

Suitable for

• Connecting a DVI‑I monitor to a DisplayPort output
• Expanding desktop display using ATI Eyefinity on AMD Radeon HD 5000 series
• Temporary or compact workstation setups where a short cable is preferred

Key specifications

• Connector 1: DisplayPort 20‑pin male
• Connector 2: DVI‑I 24+5 female (Dual Link) with screw nuts
• Power: USB‑A (for power supply)
• Maximum resolution: 1920 x 1200
• Cable length: approx. 23 cm (including connectors)
• Brand / MPN: DELock / 61855

How to use

Plug the DisplayPort male connector into the DisplayPort output of your computer and connect the DVI‑I cable from your monitor to the adapter’s DVI‑I female connector, securing it with the screw nuts. Connect the USB‑A plug to an available USB port on the computer to provide power to the active adapter. Once connected, the adapter is recognised by the system without additional drivers; configure display settings in your operating system or graphics driver as needed.

Recommendations

Use the adapter with compatible AMD Radeon HD 5000 series graphics cards when planning an Eyefinity multi‑display configuration. Ensure the connected DVI device supports the listed maximum resolution. For a stable connection, tighten the DVI screw nuts and use a nearby USB port for power.
