Adaptador de cabo de vídeo DeLOCK 84453 3m VGA D-Sub + 3,5mm preto

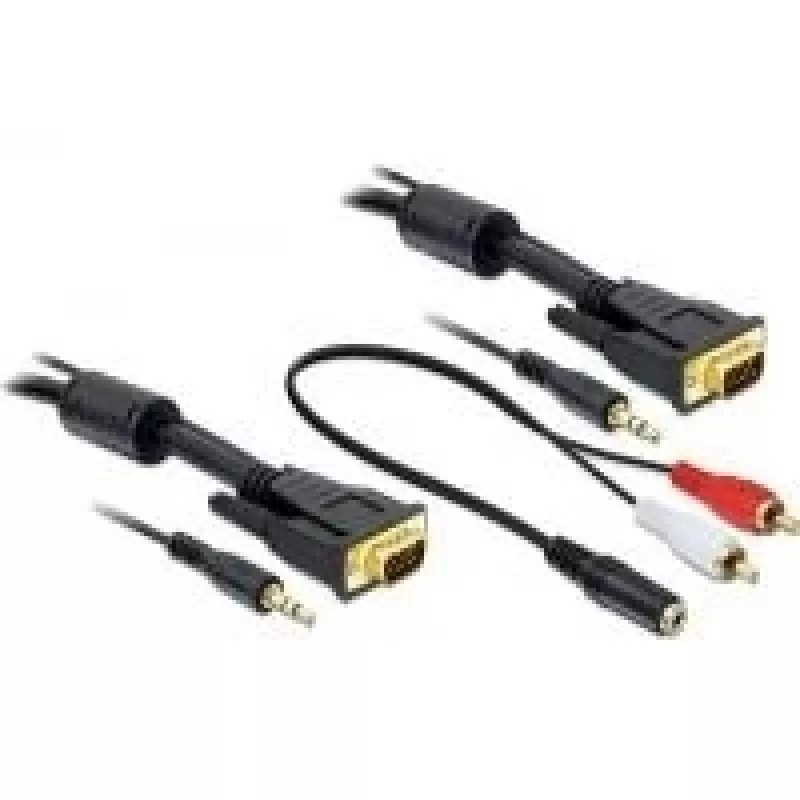

This Delock VGA cable allows connection of a monitor to a free VGA (D-Sub) port on a PC and carries stereo audio via two 3.5 mm connectors. The cable is 3 m long, black, and equipped with gold-plated VGA and 3.5 mm plugs to ensure reliable contact and signal transfer.

Advantages

The cable combines a 15‑pin VGA connection for analogue video with two 3.5 mm audio connectors for sound, eliminating the need for separate audio cabling. It features double-shielded coax RGB conductors, three coaxial inner conductors plus eight sync lines for stable video quality, ferrite cores to reduce electromagnetic interference, and gold-plated connectors to minimise corrosion and contact resistance.

Suitable for

• Connecting desktop PCs to monitors or projectors with VGA input
• Transmitting analogue video (VGA) together with stereo audio
• Use in office, classroom or home setups where VGA is required

Key specifications

• Cable length: 3 m
• Video connector: 15‑pin VGA (D-Sub) male–male
• Audio connector: 3.5 mm jack male–male (two leads: 30 cm and 60 cm)
• Inner conductor: 3 x coax (RGB) + 8 sync lines
• Shielding: double shielded
• Ferrite cores: 2
• Connector finish: gold plated
• Colour: black

How to use

Connect the VGA 15‑pin male plug to the VGA output of your PC and the other VGA plug to the VGA input of the monitor or projector. Plug the 3.5 mm audio connectors into the PC sound card outputs and the monitor or speaker inputs as required. Secure the VGA connectors by tightening the screws to ensure a stable mechanical and electrical connection.

Recommendations

For best video quality, use the cable for standard analogue VGA resolutions supported by both PC and display. Avoid running the cable parallel to high-power lines and route it away from strong EMI sources; if signal disturbances occur, ensure ferrite cores are positioned close to the source of interference.
