Adaptador de cabo de vídeo LogiLink CV0036B

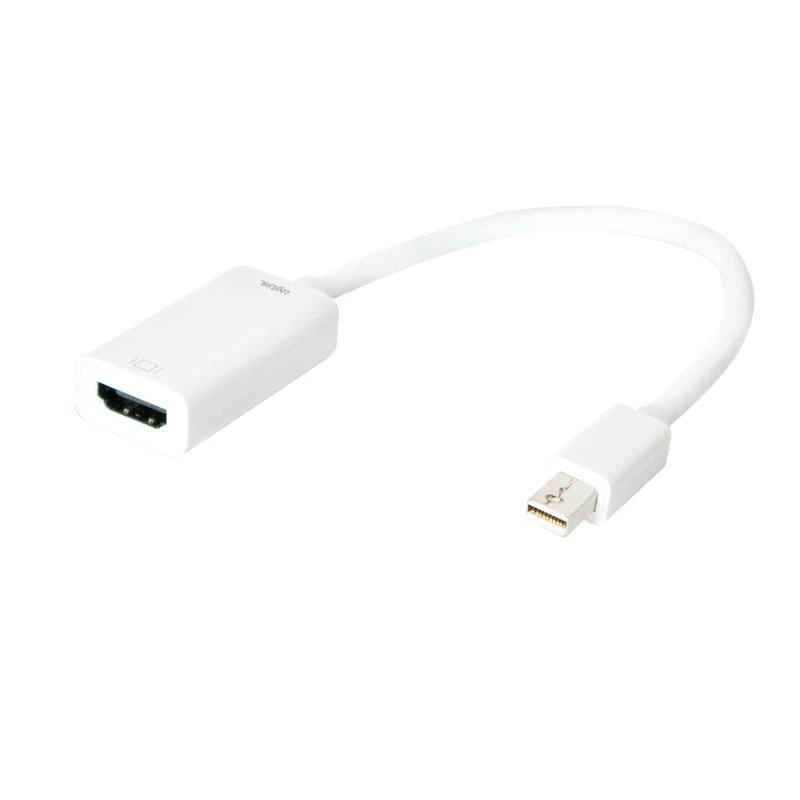

The LogiLink CV0036B Mini DisplayPort to HDMI adapter enables connection of Mini DisplayPort-equipped laptops or PCs to HDMI displays and projectors. Supporting HDMI 1.4 and a maximum resolution of up to 4K, the adapter transfers both video and audio signals. The adapter is compact (0.15 m cable length), lightweight (approx. 14.9 g) and draws power through the Mini DisplayPort.

Advantages

The adapter provides a straightforward plug-and-play connection from Mini DisplayPort to HDMI Type A, supports 4K resolution under HDMI 1.4, carries audio together with video, and has a small, lightweight design for easy transport and use with MacBook, MacBook Pro and other Mini DisplayPort devices.

Suitable for

• Connecting laptops with Mini DisplayPort output to HDMI TVs
• Connecting to HDMI projectors for presentations
• Connecting to monitors (TFT, LCD, plasma) with HDMI input

Key specifications

• Model: LogiLink CV0036B
• Connector 1: Mini DisplayPort
• Connector 2: HDMI Type A (Standard)
• Supported standard: HDMI 1.4
• Maximum resolution: up to 4K (per HDMI 1.4)
• Cable length: 0.15 m
• Weight: approx. 14.9 g
• Colour: White

How to use

Connect the Mini DisplayPort end to the Mini DisplayPort socket of your laptop or PC and plug the HDMI Type A end into the HDMI input of your display device. The adapter is powered via the Mini DisplayPort; no external power supply is required. After connection, select the correct HDMI input on the display and, if necessary, configure the display settings on the computer (resolution and audio output) to match the connected display.

Recommendations

Use certified HDMI cables for best signal quality and ensure your source device supports HDMI 1.4 features for 4K output. Avoid sharp bends in the short cable and connect/disconnect the adapter with the devices powered off when possible to reduce port stress.
