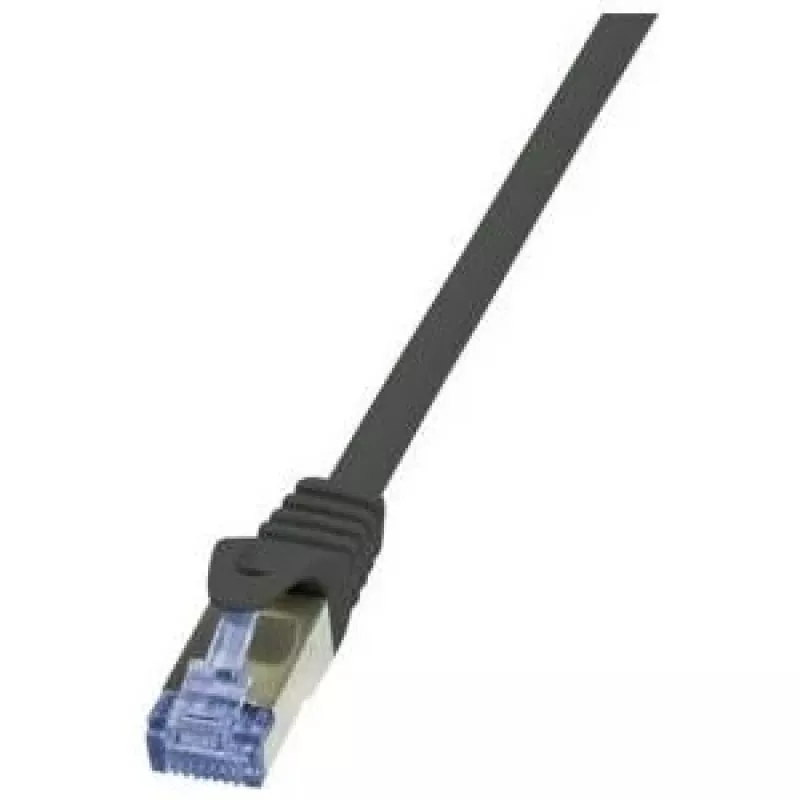

Cabo de rede LogiLink 10 m Cat.6A RJ-45 S/FTP preto

LogiLink Cat.6A patch cable, 10 m length, designed for high-speed network connections supporting up to 10 Gbps. The S/FTP (Shielded Foiled Twisted Pair with overall braid) construction and PIMF (Pairs in Metal Foil) shielding reduce electromagnetic interference and crosstalk. The cable uses bare copper conductors, LSZH (low smoke zero halogen) outer jacket and RJ45 connectors for standard Ethernet connections. The black 10 m cable is suitable for office and home network installations and complies with ISO/IEC 11801, EN50288 and TIA/EIA 568-C.2 standards.

Advantages

The cable provides reliable 10 Gbps data transmission and improved signal integrity thanks to S/FTP PIMF shielding. Bare copper conductors ensure stable electrical performance while the LSZH jacket minimizes toxic fumes in case of fire. Standard RJ45 terminations and compliance with international cabling standards ensure compatibility with existing Ethernet equipment.

Suitable for

• 10 Gbps Ethernet connections in data centers and server rooms
• High-speed LAN links for office workstations
• Home networks requiring long runs (up to 10 m)
• Shielded environments where EMI reduction is important

Key specifications

• Category: Cat.6A
• Length: 10 m
• Connector type: RJ45 – RJ45
• Cabling: S/FTP (PIMF), AWG 26/7
• Conductor: bare copper
• Jacket: LSZH (low smoke zero halogen)
• Weight: 0.35 kg
• Colour: Black
• Standards: ISO/IEC 11801, EN50288, TIA/EIA 568-C.2

How to use

Connect one RJ45 plug to your network device (switch, router, NIC) and the other end to the corresponding port. Avoid tight bending and excessive pulling; maintain recommended bend radius to preserve cable performance. Ensure shield continuity by using properly grounded shielded connectors and patch panels when installing in environments with high electromagnetic interference.

Recommendations

For optimal performance, route the cable away from high-voltage power lines and heavy machinery. Use shielded network components and maintain correct termination practices to fully benefit from S/FTP PIMF shielding.
