Adaptador de dispositivo Rittal 9635372 16 A AWG 14 unipolar L2 RiLine Comp

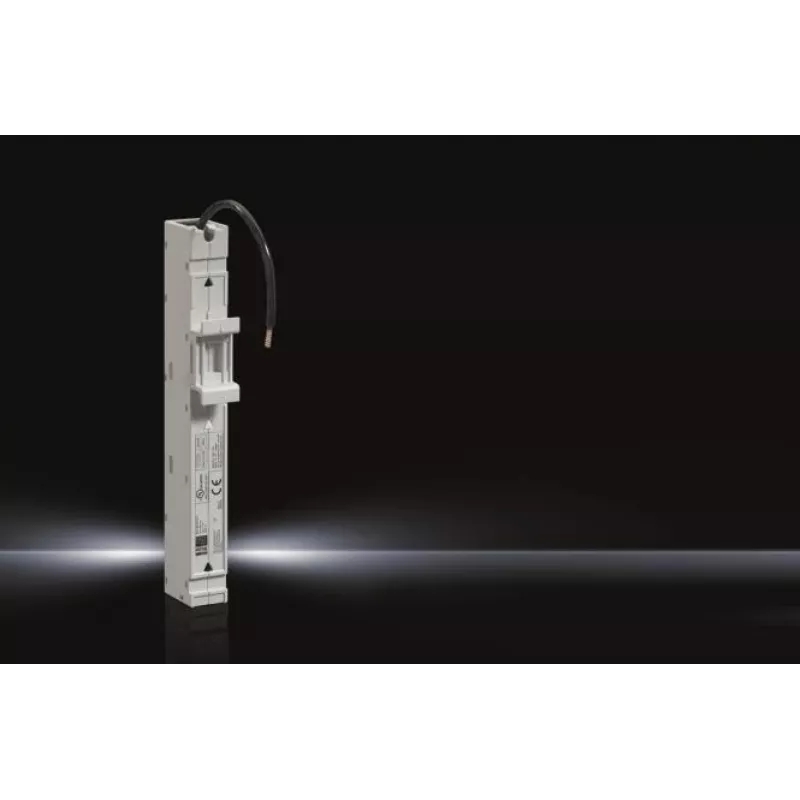

Device adapter Rittal model 9635372 is a single-pole RiLine Comp accessory designed for reliable electrical distribution in industrial enclosures. Rated for 16 A and compatible with AWG 14 conductors, this compact adapter provides a secure connection point for phase L2 within switchgear and distribution panels. The adapter integrates with Rittal RiLine Comp busbar systems and is intended for straightforward incorporation into device mounting and wiring layouts where a dedicated single-pole feed is required.

Advantages

The adapter offers a compact footprint that conserves space inside control cabinets while maintaining consistent electrical contact for a 16 A single-pole circuit. Its compatibility with AWG 14 conductors simplifies wiring with commonly used cable sizes. Designed for mechanical and electrical integration into RiLine Comp systems, the adapter supports organized routing and reliable phase L2 connections without additional modification to the busbar arrangement.

Suitable for

Key specifications

How to use

Mount the adapter onto the RiLine Comp busbar according to the enclosure manufacturer’s installation instructions, ensuring correct alignment with the L2 phase position. Prepare the AWG 14 conductor by stripping the insulation to the required length and insert it into the adapter’s connection point, then secure the conductor using the appropriate tightening torque specified in the technical documentation. Verify electrical continuity and correct phase assignment before energizing the circuit. Follow applicable safety procedures and lockout/tagout practices during installation and maintenance.

Recommendations

Use the adapter within its rated current and conductor size limits; avoid exceeding 16 A and ensure AWG 14 or equivalent conductor is used for proper contact and heat dissipation. Regularly inspect connections for tightness and signs of wear in high-vibration or high-load environments, and consult Rittal installation guides for torque values and compatibility with other RiLine Comp components.
