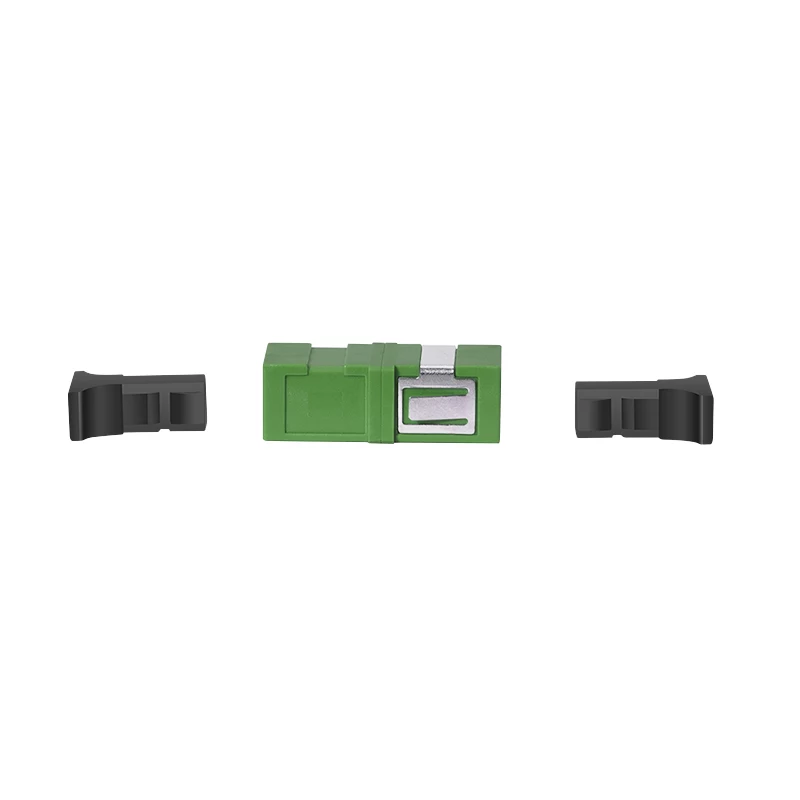

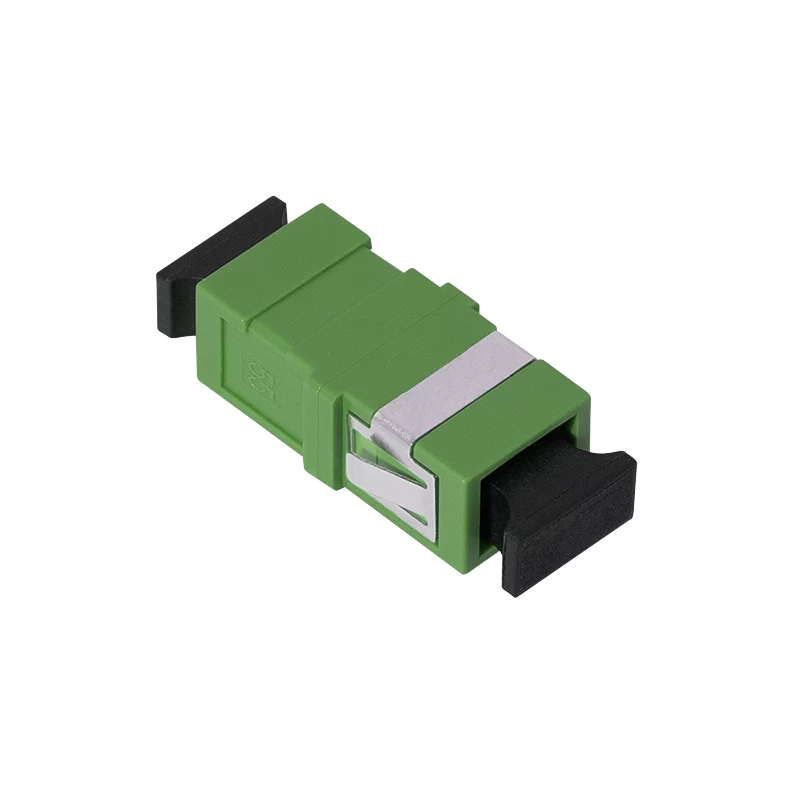

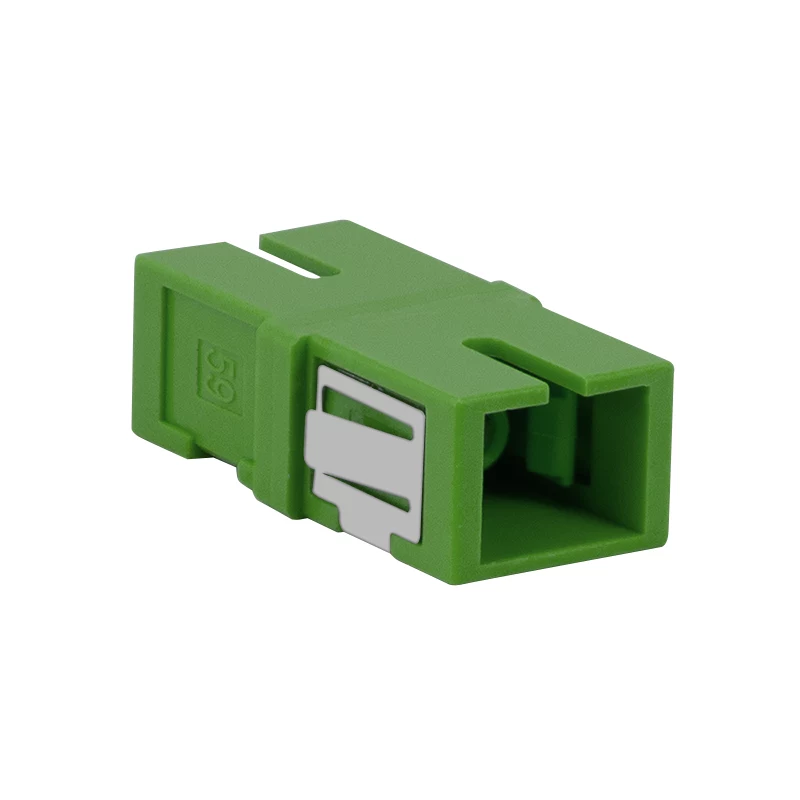

Adaptador de fibra ótica LogiLink FA01SC8 SC Simplex APC, sem flange, verde, pack de 12

Standard adapters merely align ferrules, but the LogiLink FA01SC8 goes further with precision zirconia ceramic sleeves that keep insertion loss below 0.2 dB and return loss beyond 60 dB. This matters most in single-mode APC links, where even minor reflections can degrade high-speed digital or analog signals. Each pack includes 12 flangeless SC simplex adapters in industry-standard green for APC identification, ready for high-density patch panels, wall outlets, or fiber distribution boxes.

Highlights

• SC simplex format with APC (angled physical contact) polishing for superior back reflection control
• Flangeless design mounts cleanly into panels or keystone openings without extra hardware
• Zirconia ceramic alignment sleeves ensure consistent mating over 500+ cycles

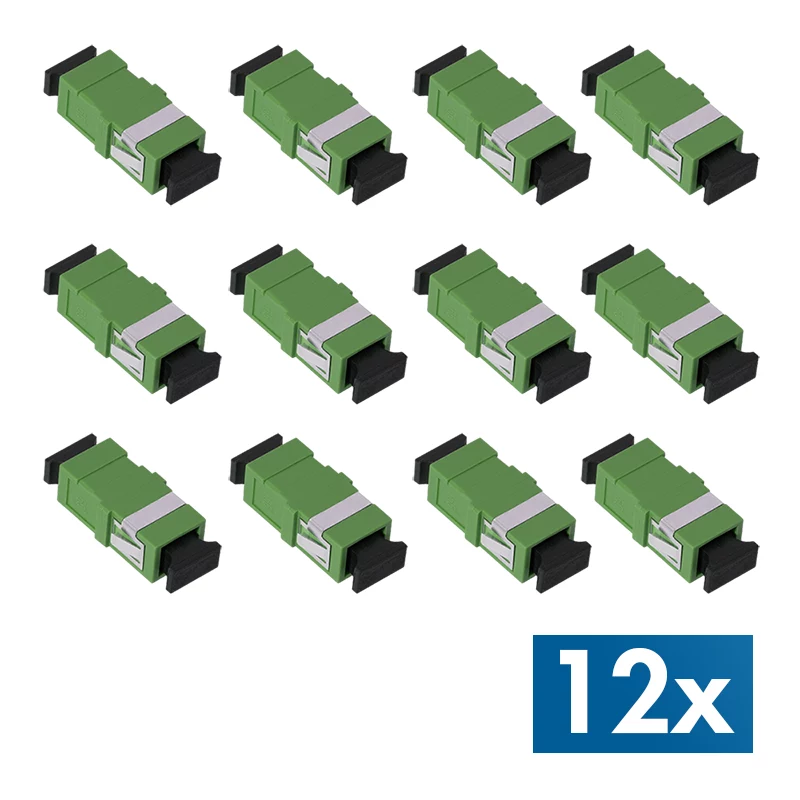

• 12 pieces per pack — economical for bulk installations or maintenance stock
• Green housing provides instant visual recognition of APC single-mode connections

In daily use

Built for reliability in FTTH, CATV, and enterprise single-mode networks, these adapters combine a lightweight yet durable plastic housing with a flangeless profile that allows side-by-side mounting in tight spaces. Whether terminating a new fiber run or replacing worn adapters, the FA01SC8 maintains low loss across a wide temperature range from -20°C to +70°C, with storage tolerance down to -40°C. The APC polish minimizes reflections that can degrade high-speed digital or analog signals, making it a smart choice for long-haul and high-power applications.

Full specifications

• Adapter Type: Fiber Optic Adapter
• Connector Type: SC Simplex
• Fiber Mode Compatibility: Single-mode (SM)
• Polishing Type: APC (Angled Physical Contact)
• Color: Green
• Mounting Type: Flangeless (without flange)
• Ferrule Material: Zirconia Ceramic
• Housing Material: Plastic
• Insertion Loss: < 0.2 dB
• Return Loss: > 60 dB
• Quantity per Pack: 12 pieces
• Durability: > 500 mating cycles
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Standards Compliance: RoHS, IEC 61754-4

Final note

For installers who demand consistent performance and easy identification, the FA01SC8 delivers precision, durability, and value in a single green package.
