Descrição

Full NVMe compatibility:Supports M.2 Key M and B+M SSDs with PCIe NVMe protocol for maximum performance.
Easy retrofitting:Enables quick installation of an NVMe SSD in PCs without an M.2 slot—ideal for upgrades.
Flexible design support:Compatible with common SSD lengths 2230, 2242, 2260, and 2280.
Powered directly via PCIe:No separate power cable required—power is supplied via the PCIe bus.
Universally applicable:Works in x1, x4, x8, and x16 slots under Windows and Linux.

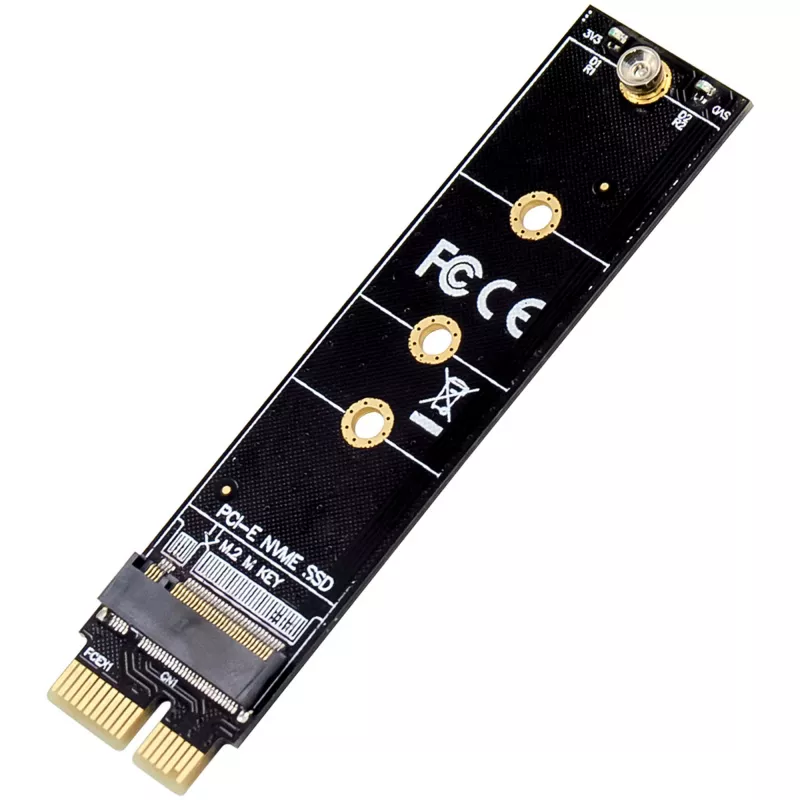

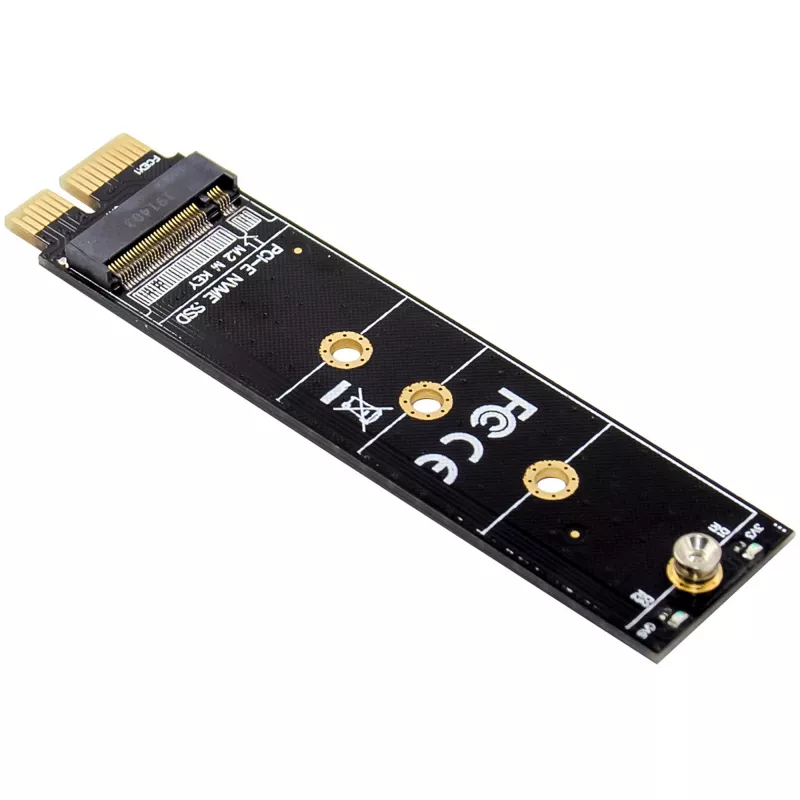

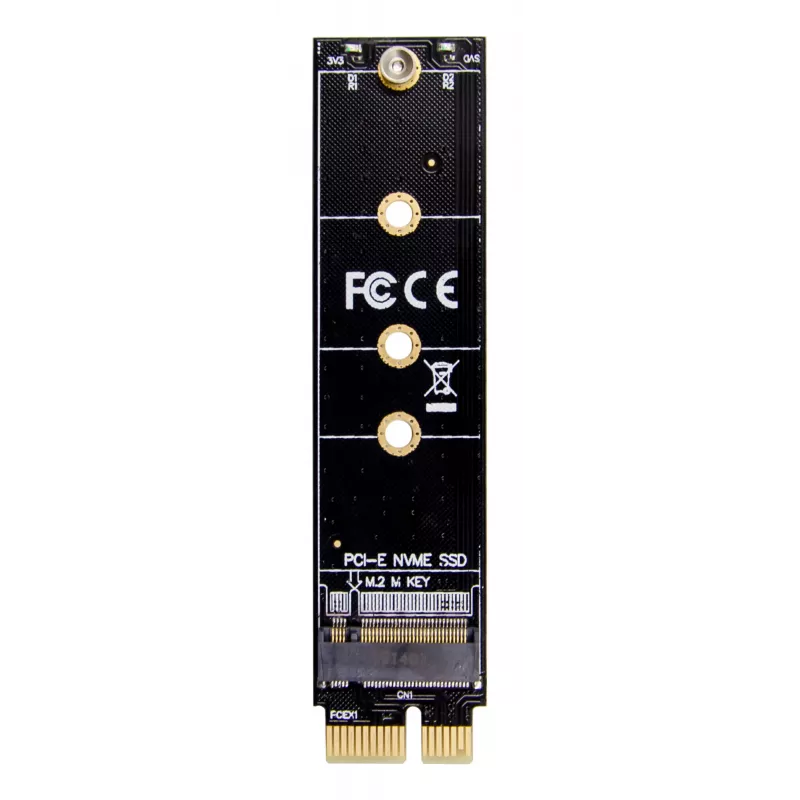

The InLine® PCIe x1 to M.2 Key M interface card enables quick and easy integration of NVMe SSDs into existing PC or server systems. The adapter was developed for professional applications and ambitious users who do not want to do without modern NVMe performance – even if the motherboard does not offer its own M.2 slot.
The card supports SSDs with M.2 Key M and B+M Key, provided they use the PCIe NVMe protocol. SATA SSDs or PCIe x2 solutions with B-Key are deliberately not supported in order to ensure maximum performance and compatibility. The flexible acceptance of SSDs in form factors 2230 to 2280 allows the use of a wide variety of modules – from compact industrial applications to powerful desktop upgrades.
An additional highlight: Power is supplied entirely via the PCIe bus, eliminating the need for external cabling. The mechanical design allows use in different PCIe slots – from x1 to x16. The included components, such as a screwdriver, screw, and passive heat sink, make commissioning particularly convenient.
Thanks to support for current Windows and Linux versions, the adapter is versatile—for example, in workstations, test systems, or as a fast memory expansion. The InLine® PCIe x1 interface card stands for reliability, easy handling, and high data rates—in a compact format.

PCIe version: PCIe v3.0 x1 lane (backward compatible with PCIe v2.0 / v1.0)
Interface: PCIe x1 lane (mechanically usable in x4/x8/x16 slots)
Supported SSD formats: 2230 / 2242 / 2260 / 2280
Supported SSD types:
- M.2 Key M (NVMe)
- M.2 Key B+M (NVMe only, no SATA)
Not compatible:
- M.2 SATA SSDs (B-Key)
- M.2 PCIe x2 SSDs (B-Key)
Protocol: NVMe (Non-Volatile Memory Express, optimized for high I/O performance)
Power supply: Directly via PCIe bus (3.3 V)
Operating temperature: -40 °C to +85 °C
Storage temperature: -40 °C to +85 °C
Maximum humidity: 90%, non-condensing
Supported operating systems:
Windows 8 / 8.1 / 10 / 11
Windows Server 2012 R2 or newer
Linux (with NVMe support)
A free PCIe x1, x4, x8, or x16 slot is required.

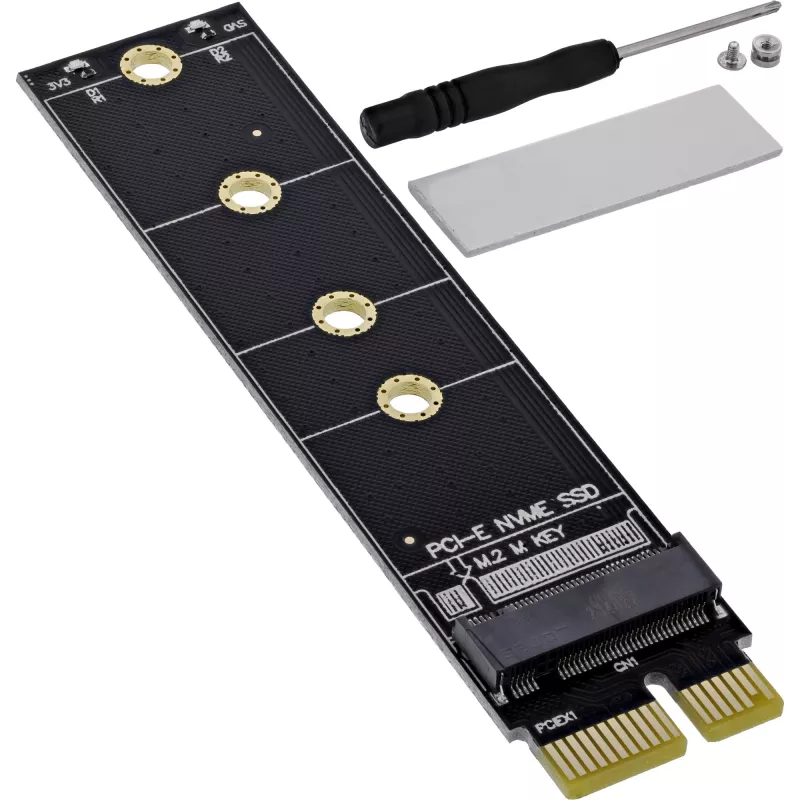

Scope of delivery:
1x InLine PCIe x1 interface card to M.2 Key M
1x heat sink
1x screwdriver
1x screw
1x user manual German/English

InLine 76619H. Host interface: PCIe, Output interface: M.2, Host interface gender: Male. Country of origin: Taiwan. Windows operating systems supported: Windows 10, Windows 11, Windows 8, Windows 8.1, Server operating systems supported: Windows Server 2012 R2, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows.... Width: 100 mm, Height: 24 mm, Weight: 700 g. Package weight: 9 g, Package volume: 1000 cm³

How to use

Insert the adapter into a free PCIe x1, x4, x8 or x16 slot on the motherboard. Mount an NVMe M.2 SSD (Key M or B+M using NVMe protocol) into the M.2 socket and secure it with the supplied screw. Attach the included passive heat sink if required for thermal management. No additional power cable is necessary since the card receives power from the PCIe bus. After installation, boot the system and verify that the operating system recognizes the NVMe drive; install drivers or enable NVMe support in the OS if necessary.

Recommendations

Use NVMe M.2 SSDs in Key M or B+M (NVMe only) form factors for full compatibility and performance. Do not install SATA M.2 or B‑Key PCIe x2 modules. Ensure the system BIOS/UEFI and OS support NVMe and update drivers or firmware as needed. For sustained heavy workloads, install the provided heat sink or additional cooling to maintain optimal temperatures.

Destaques principais
  • Upgrading desktop PCs or workstations that lack an M.2 slot
  • Adding a fast NVMe drive to test systems or lab machines
  • Expanding storage capacity in servers or embedded systems with available PCIe slots
  • PCIe version: PCIe 3.0 x1 (backward compatible with PCIe 2.0 / 1.0)
  • Mechanical compatibility: usable in PCIe x1, x4, x8 and x16 slots
  • Supported M.2 lengths: 2230, 2242, 2260, 2280
  • Supported SSD types: M.2 Key M (NVMe), M.2 Key B+M (NVMe only)
  • Unsupported SSD types: M.2 SATA (B‑Key), M.2 PCIe x2 (B‑Key)
  • Protocol: NVMe (optimized for high I/O performance)
  • Power supply: via PCIe bus (3.3 V)
  • Operating temperature range: -40 °C to +85 °C
  • Storage temperature range: -40 °C to +85 °C
  • Maximum relative humidity: 90% non‑condensing
  • Compatible operating systems: Windows 8 / 8.1 / 10 / 11, Windows Server 2012 R2 or newer, Linux with NVMe support

Especificações

Especificações
Altura
24 mm
Certificados de conformidade
CE, Comissão Federal das Comunicações (FCC), marca TÜV
Género da interface do host
Macho
Interface de saída
M.2
Interface do anfitrião
PCIe
Interno
Sim
Largura
100 mm
Manual
Sim
Norma da placa de expansão
PCIe 3.0
Número de ranhuras M.2 (M)
1
NVMe
Sim
País de origem
Taiwan
Peso
700 g
Peso da embalagem
9 g
Sistemas operativos de servidor compatíveis
Windows Server 2012 R2, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows Server 2022
Sistemas operativos Linux compatíveis
Sim
Sistemas operativos Windows compatíveis
Windows 10, Windows 11, Windows 8, Windows 8.1
Temperatura de armazenamento (T-T)
-40 - 85 °C
Temperatura de funcionamento (T-T)
-40 - 85 °C
Volume da embalagem
1000 cm³
