Adaptador de módulo de transferência DeLOCK M12, 17 pinos, codificação A, fêmea para bloco de terminais de 18 pinos

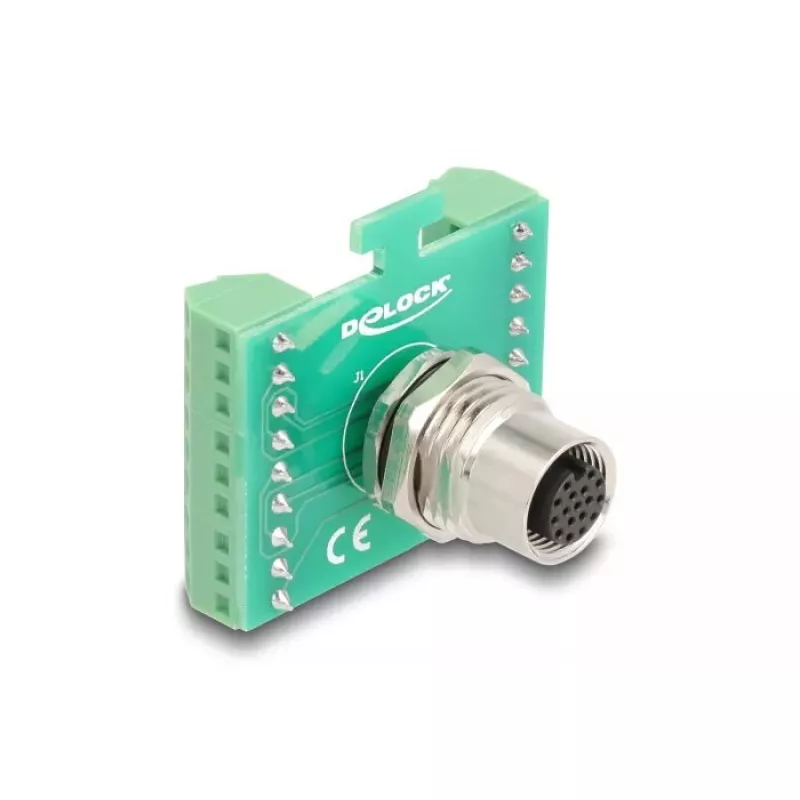

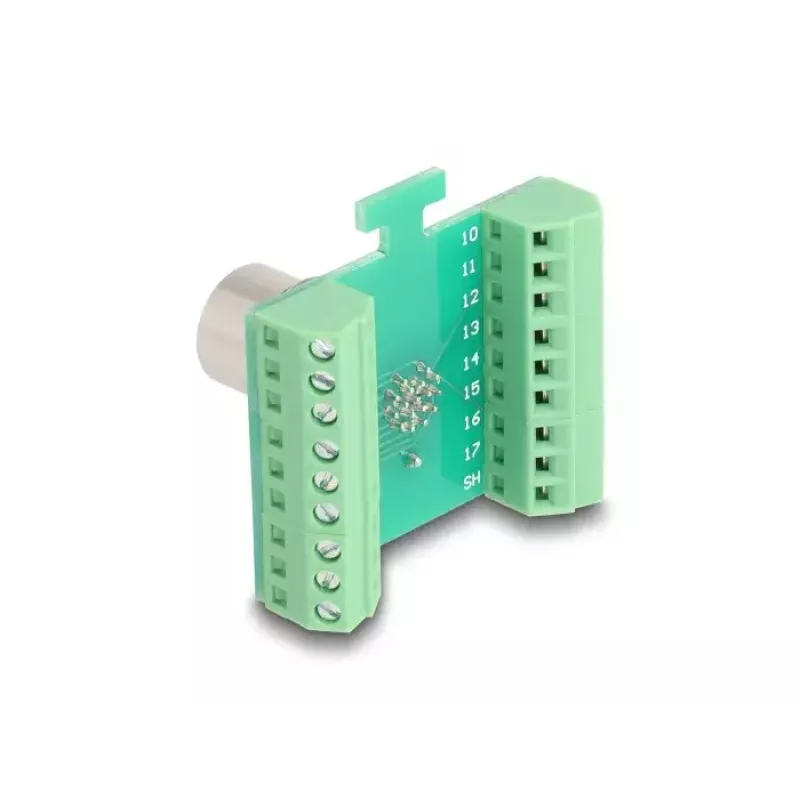

The DeLOCK M12 Transfer Module Adapter provides a straightforward connection between devices with M12 A-coded female connectors and electrical circuits using an 18‑pin terminal block. The adapter features a 17‑pin M12 A-coded female interface on one side and an 18‑pin removable terminal block on the other, offering a compact solution for installations where space is limited. Its compact dimensions (38.9 mm × 41.9 mm × 34.3 mm) and green housing make it suitable for integration into control cabinets and automation systems.

Advantages

The adapter enables secure and reliable signal wiring between M12-equipped devices and terminal-block-based circuits without tools for connector conversion. Its compact form factor simplifies mounting in confined spaces such as switch cabinets. The removable terminal block allows easy wiring and maintenance, while the A-coded 17‑pin M12 female connector ensures compatibility with standard industrial cabling.

Suitable for

• Industrial automation systems
• Building automation and control cabinets
• Machine I/O wiring and sensor/actuator connections
• Prototyping and control panel assemblies

Key specifications

• Manufacturer: DELOCK
• Model / MPN: 60660
• EAN: 4043619606603
• Connector A: M12 A‑coded female, 17 pins
• Connector B: 18‑pin removable terminal block
• Dimensions: 38.9 mm (W) × 41.9 mm (D) × 34.3 mm (H)
• Colour: Green
• Pack quantity: 1

How to use

Mount the adapter in the desired location inside the control cabinet or on a panel. Insert and secure the 18‑pin wires into the removable terminal block according to the wiring diagram of your system, then plug the terminal block into the adapter housing. Connect the M12 A‑coded male cable from your device to the 17‑pin M12 female connector until it locks. Verify continuity and correct wiring before powering the system.

Recommendations

Use the adapter in environments consistent with the specifications of the connected devices. Ensure correct pin assignment and tighten all terminations to the manufacturer's recommended torque. Avoid exposure to excessive moisture or corrosive substances unless additional protective measures are applied.
