Adaptador de teste GMC Instruments VL2 E para cabo de extensão trifásico, CEE 16A/32A para tomada com contacto de proteção

Test 3-phase extension cables with confidence using the GMC Instruments VL2 E. This adapter connects CEE 16 A or 32 A (5-pin) plugs to a safety socket, enabling comprehensive testing with Gossen Metrawatt SECUTEST series PAT testers. It supports protective conductor resistance, insulation resistance, leakage current, continuity, and phase sequence tests up to 400 V AC.

Overview

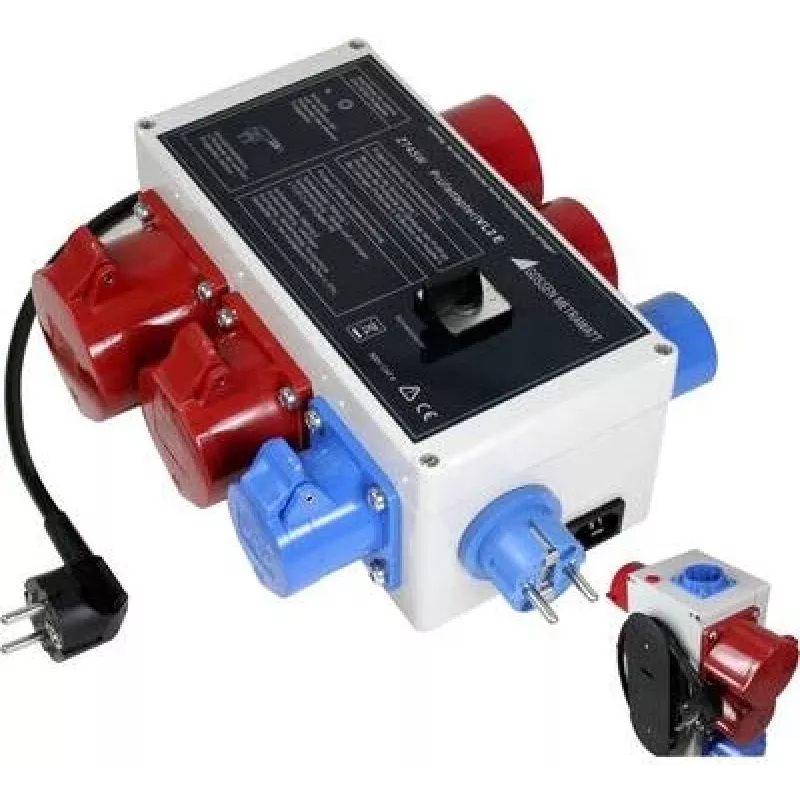

The VL2 E is a test adapter designed for verifying the safety of 3-phase extension cables. It features a rotary switch to select between CEE 16 A and CEE 32 A inputs, and an LED indicator for phase sequence (L1, L2, L3). The robust plastic housing ensures durability in testing environments.

What stands out

• Dual input: CEE 16 A and CEE 32 A (5-pin) connectors
• Safety socket output for direct connection to PAT testers
• LED phase sequence indicator for quick verification
• Compatible with Gossen Metrawatt SECUTEST series
• Supports multiple test functions: R_PE, R_ISO, leakage current, continuity, phase sequence

Technical details

• Nominal voltage: up to 400 V AC
• Nominal current: 16 A / 32 A
• Measurement category: CAT II 300 V
• Protection class: IP40
• Operating temperature: 0 to +40 °C
• Storage temperature: -10 to +60 °C
• Housing material: robust plastic
• Safety standards: IEC 61010-1, VDE 0411-1

Our verdict

The VL2 E is a practical tool for electricians and test technicians who need to verify 3-phase extension cables efficiently. Its dual CEE inputs and clear phase indication streamline the testing process.
