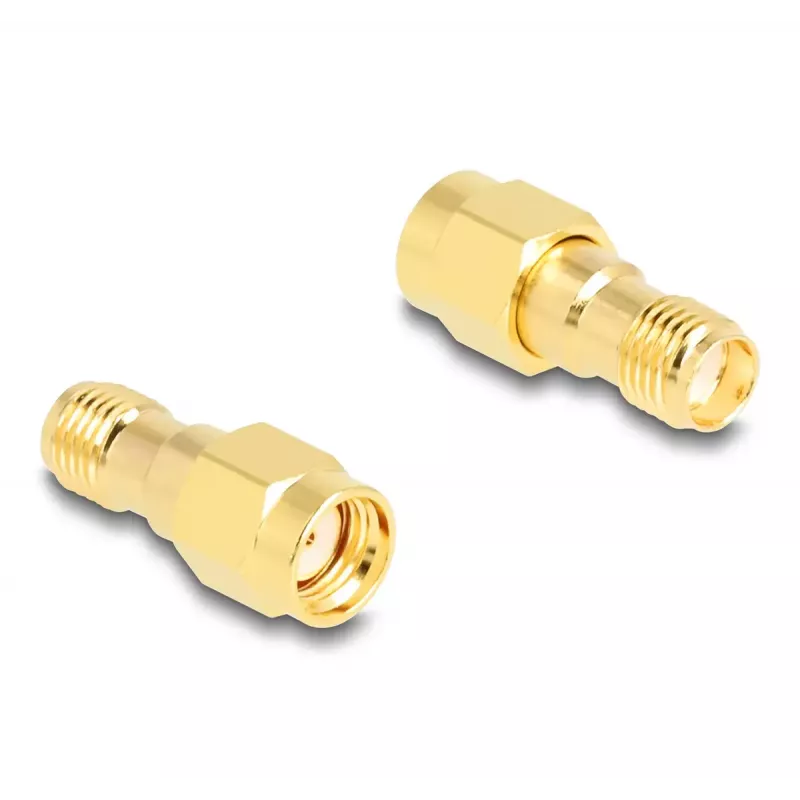

Adaptador DeLOCK RP-SMA ficha macho para SMA conector fêmea HBI59-1 tipo de conector SMA diâmetro 8 mm

The DeLOCK Adapter RP-SMA male to SMA female HBI59-1 is designed for connecting components in radio frequency (RF) systems. It features an RP-SMA male on one side and an SMA female on the other, with a connector diameter of 8 mm and an overall depth of 20.4 mm. The adapter is supplied as a single piece in a polybag and is suitable for use with various RF applications that require RP-SMA to SMA interfacing.

Advantages

This adapter provides a straightforward mechanical and electrical connection between RP-SMA male and SMA female interfaces, maintaining signal continuity in RF chains. Its compact form factor and standard SMA threading ensure compatibility with common antennas, cables and RF modules. Supplied individually in a polybag, it is convenient for replacement or small installations.

Suitable for

Key specifications

How to use

Align the RP-SMA male side of the adapter with the RP-SMA female connector on the cable or antenna and screw gently until hand-tight to avoid cross-threading. On the SMA female side, attach the SMA male connector of the device or cable and tighten by hand; use a torque wrench with appropriate specifications only if required by the equipment documentation. Verify the mechanical fit and check the RF connection for signal continuity after installation.

Recommendations

Use the adapter only within the mechanical and electrical limits of connected equipment. Avoid excessive torque when fastening to prevent damage to connectors. Store in a dry environment and protect connectors from dust and moisture when not in use.
