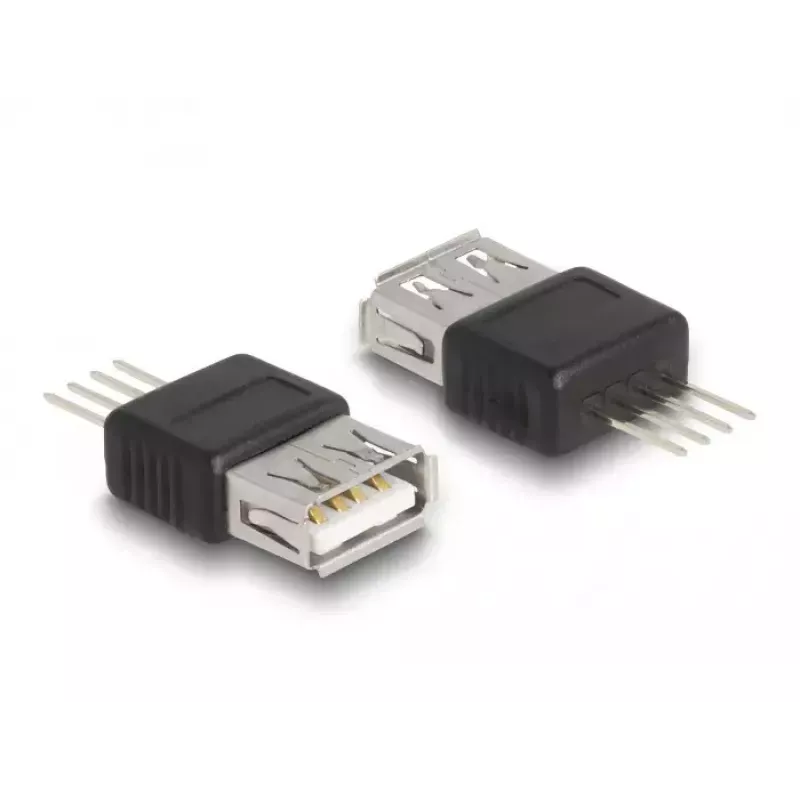

Adaptador DeLOCK USB 2.0 conector fêmea Type-A para 4 pinos preto prateado 5V

This Delock USB connector is a through-hole mounted adapter designed to connect USB 2.0 Type-A devices to a 4‑pin header. It has a straight form factor, is available in black and silver, and operates at 5 V. Its compact dimensions (16 mm × 32.3 mm × 8 mm) make it suitable for integration into various electronic enclosures and PCB assemblies.

Advantages

The adapter provides a reliable mechanical and electrical interface between a USB 2.0 Type-A plug and a standard 4‑pin connector on a circuit board. Through-hole mounting ensures secure attachment and durability in applications where a firm physical connection is required. The compact size and standard USB 2.0 compatibility facilitate straightforward connection of peripherals while keeping board space to a minimum.

Suitable for

• Prototyping and small-scale electronics projects
• Integrating USB Type-A ports into custom enclosures
• Connecting USB peripherals to PCBs with a 4‑pin header
• Repair or replacement of damaged USB Type-A connectors in devices

Key specifications

• Brand: DELOCK
• Model/MPN: 66653
• EAN: 4043619666539
• Interface: USB 2.0 Type-A female to 4‑pin header
• USB version: 2.0
• Input voltage: 5 V
• Colour: Black, Silver
• Dimensions (W × D × H): 16 mm × 32.3 mm × 8 mm
• Mounting type: Through-hole

How to use

Insert the adapter into the PCB so the through-hole leads align with the board drill holes, then solder the pins on the underside of the board to establish electrical and mechanical connection. Mount a USB 2.0 Type-A plug into the female port to connect peripherals. Observe correct orientation of the connector and ensure secure solder joints to maintain signal integrity and mechanical stability.

Recommendations

For reliable USB 2.0 performance, use shielded cables where appropriate, avoid excessive mechanical stress on the connector, and verify solder joints and board clearances during assembly. Do not exceed the specified 5 V input.
