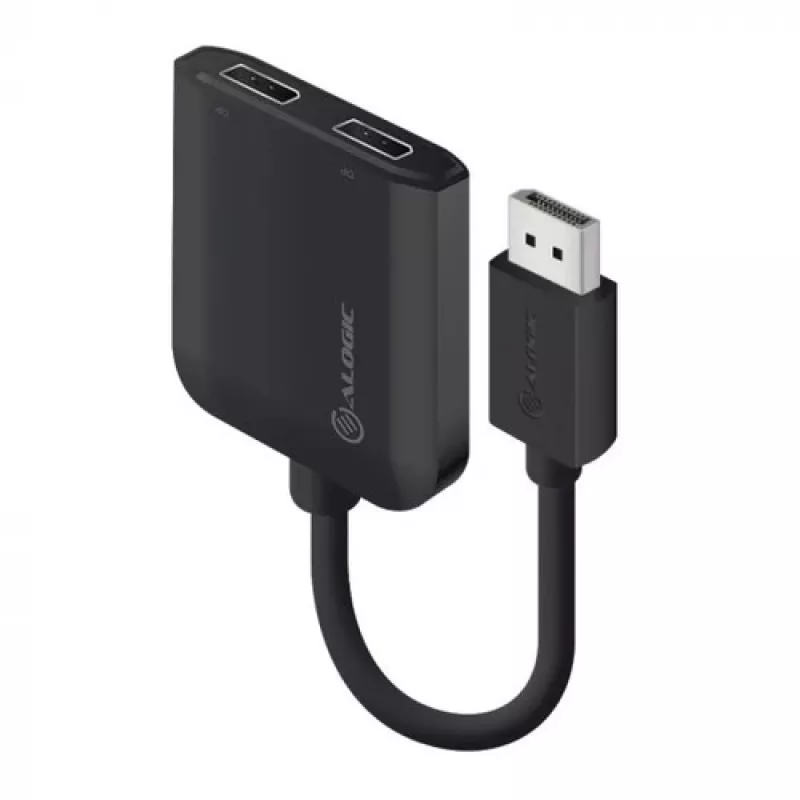

Adaptador DisplayPort para DisplayPort duplo ALOGIC 4K 30 Hz

The ALOGIC DisplayPort to Dual DisplayPort 1.2 Adapter lets you connect a single DisplayPort source to two DisplayPort displays, supporting up to 4K at 30Hz. It includes a male DisplayPort connector and a Micro USB cable, and is compact and lightweight for use in multi-monitor setups.

Advantages

This adapter supports DP 1.2 MST functionality to drive two displays simultaneously in extended or mirrored configurations when connected to a DP 1.2 output. With a DP 1.1 source it will operate as a splitter and mirror the same image across both monitors. The compact black housing and low weight make it easy to install and carry, and it accepts displays with different input types when used with appropriate converters.

Suitable for

• Office multitasking with two monitors
• Video editing and content review on dual 4K screens
• CAD drafting and design work requiring additional screen space
• Medical image review or other professional imaging workflows

Key specifications

• Input connector: DisplayPort (male)
• Output connectors: 2 x DisplayPort
• Maximum resolution: Dual 4K @ 30Hz
• DP standard: DisplayPort 1.2 compliant (MST supported)
• Included accessories: Micro USB cable
• Weight: 0.057 kg
• Colour: Black
• Brand / MPN: ALOGIC / DP2DP-ADP

How to use

Connect the male DisplayPort plug of the adapter to the DisplayPort output on your computer. Attach up to two DisplayPort monitors to the adapter outputs. If your monitors use HDMI, DVI or VGA, connect suitable passive or active converters to the adapter outputs before attaching the displays. If required, connect the Micro USB cable to a USB power source to ensure stable operation. Configure display mode (extend or mirror) in your operating system display settings.

Recommendations

For dual 4K@30Hz operation ensure the host GPU and DisplayPort output support DP 1.2 MST. If using a DP 1.1 source the adapter will mirror displays rather than extend them. Use certified DisplayPort cables and, when converting to HDMI/DVI/VGA, use appropriate active adapters for higher resolutions to maintain signal quality.
