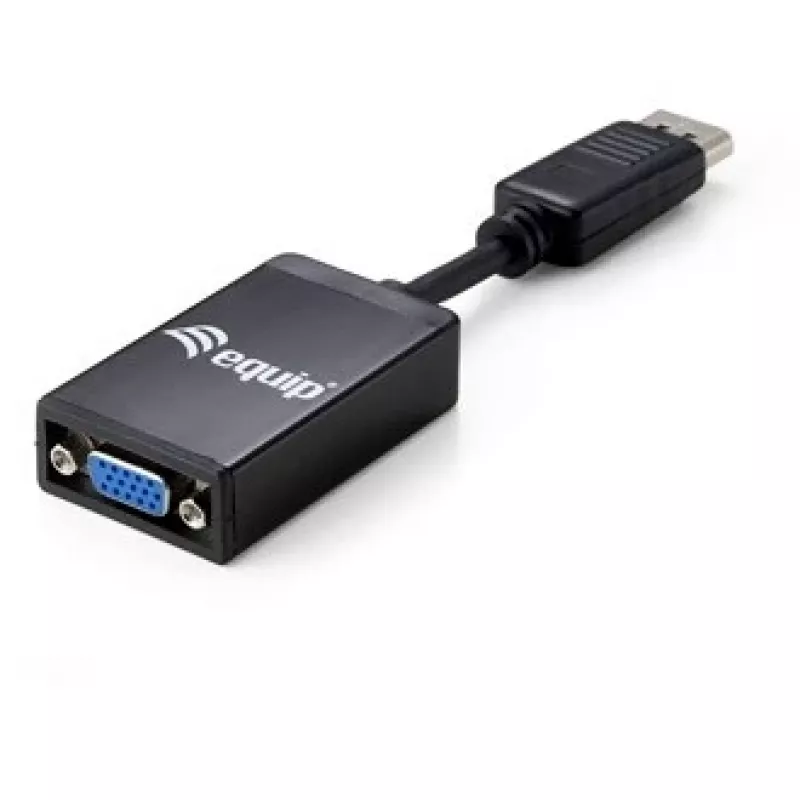

Adaptador DisplayPort para HD15 VGA Equip 133435

The equip® DisplayPort to VGA adapter is an economical, compact solution for connecting DisplayPort-enabled devices to VGA displays. Designed from quality materials, it enables a straightforward connection between PCs or laptops with DisplayPort outputs and monitors or projectors with VGA (HD15) inputs. With a total cable length of 0.15 m and a lightweight black housing, the adapter is convenient to carry and position on a desk or in a bag.

Advantages

This adapter supports resolutions up to 1080p and uses a 10-bit, 162 MHz DAC to provide clear analog video output from DisplayPort sources. It is compatible with DisplayPort 1.1a devices, has a compact form factor (0.15 m cable) and low weight (37.5 g), and requires no additional power or driver installation for typical use cases.

Suitable for

• Connecting laptops with DisplayPort to VGA monitors
• Connecting desktop PCs with DisplayPort to VGA projectors
• Temporary setups in meeting rooms, classrooms, or offices

Key specifications

• Connector 1: DisplayPort
• Connector 2: VGA (HD15)
• Cable length: 0.15 m
• Supported resolution: up to 1080p
• DAC: 10-bit, 162 MHz
• DisplayPort compatibility: 1.1a
• Weight: 0.0375 kg
• Colour: Black

How to use

Connect the DisplayPort end of the adapter to the DisplayPort output on your laptop or PC and plug the VGA (HD15) connector into the VGA input of the monitor or projector. Power on both devices. The connected display should be detected automatically; adjust the resolution in your operating system display settings if necessary to achieve the desired 1080p output.

Recommendations

The adapter converts digital DisplayPort signals to analog VGA. For best results use short VGA cables and set the output resolution to 1920×1080 or lower; higher resolutions are not supported. Avoid bending the short cable sharply and disconnect the adapter when not in use to prolong its lifespan.
