Adaptador interno DeLOCK 90344 USB 3.2 Gen 1 PCIe USB Type-C

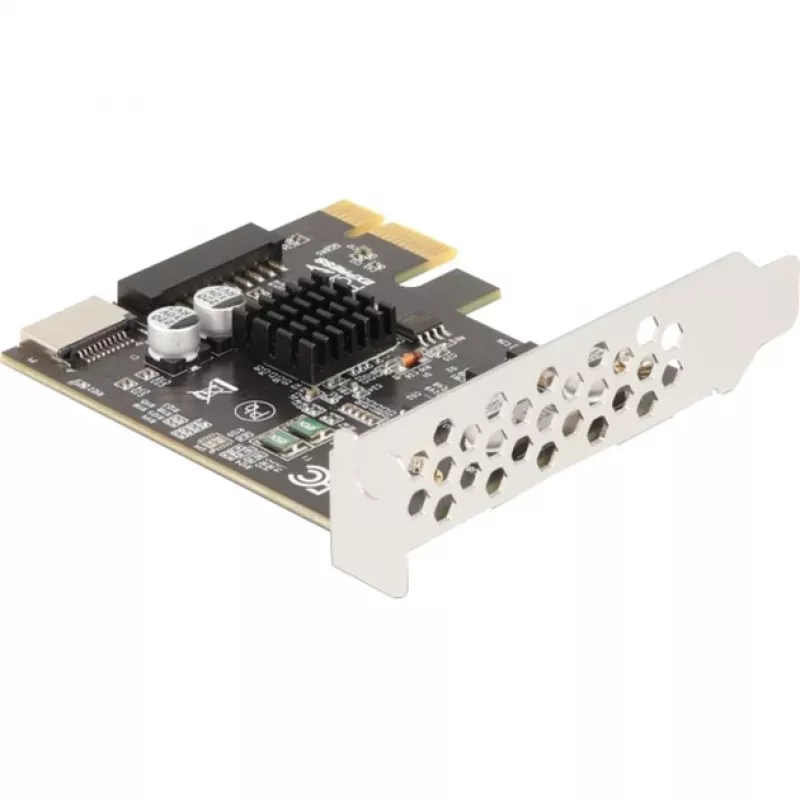

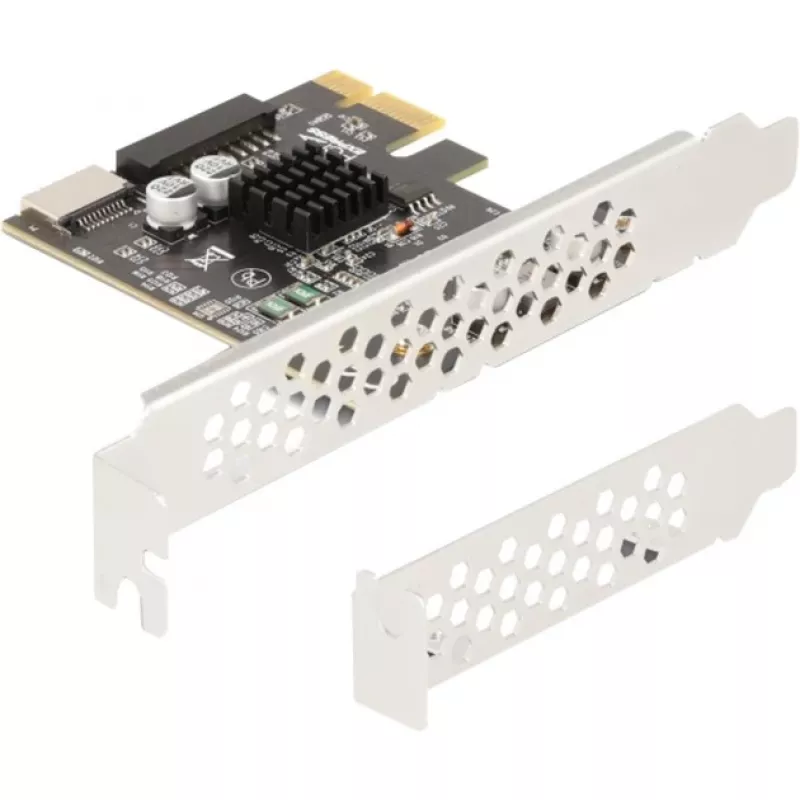

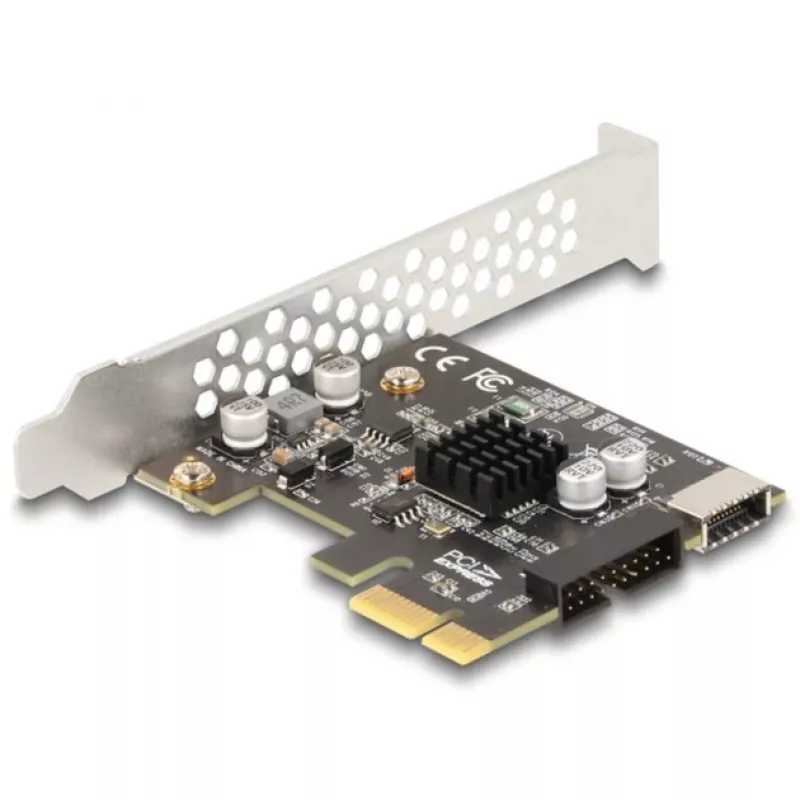

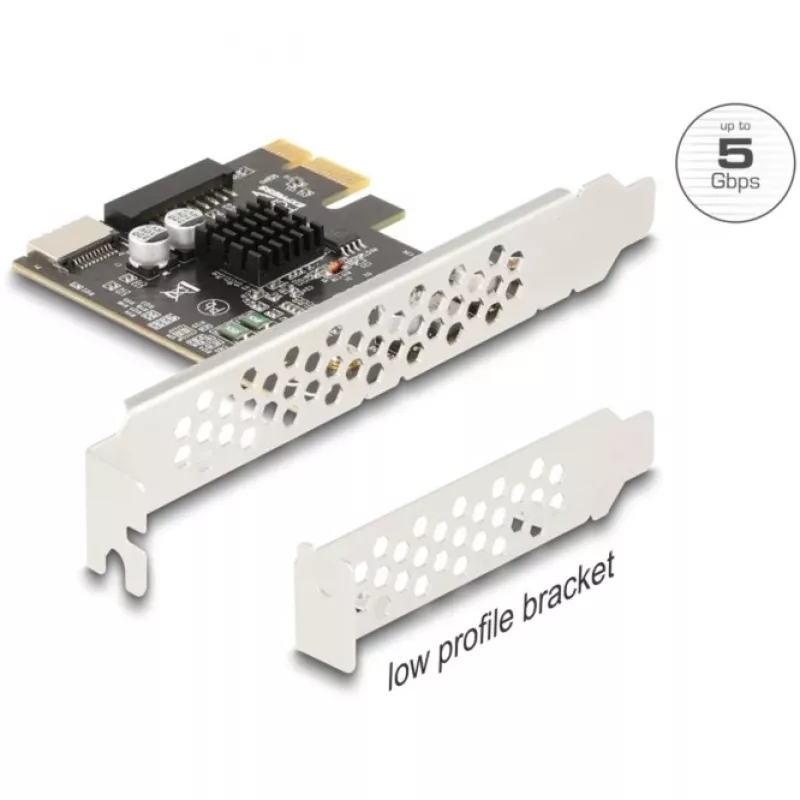

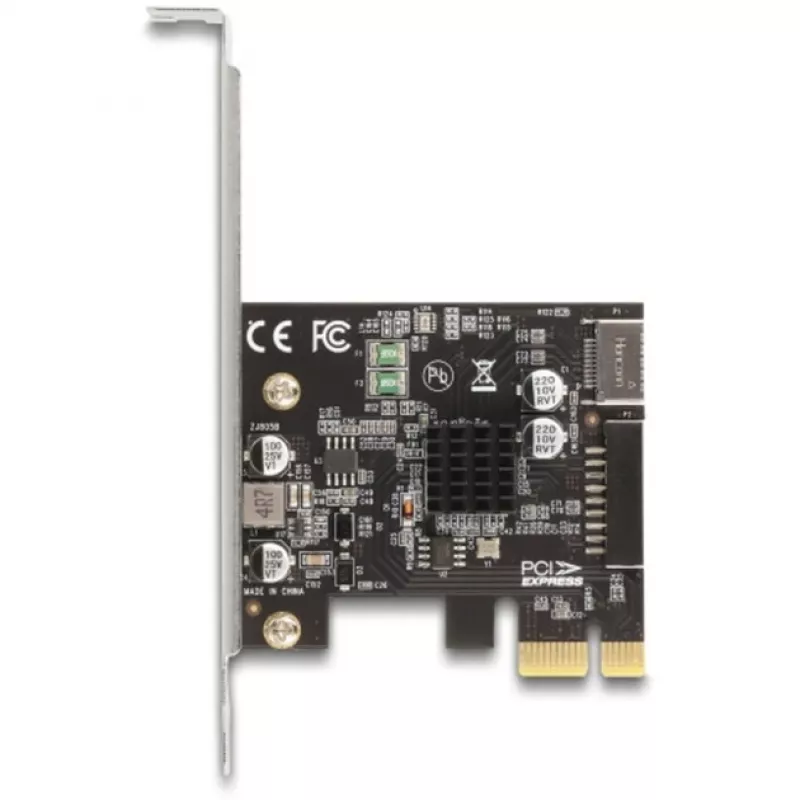

The DeLOCK 90344 is an internal PCI Express adapter that adds one internal USB 3.2 Gen 1 (5 Gbps) Type‑E key A female port and a 19‑pin USB internal header to a PC. The card provides a choice of connected cables to deliver either a front or internal USB Type‑C connector or a USB Type‑A interface and is powered solely via the PCI Express slot, so no additional power connector is required.

Advantages

This PCIe adapter supports USB 3.2 Gen 1 transfer speeds up to 5 Gbit/s and offers flexible connection options through the included Type‑E female port and 19‑pin header. Installation is simplified because the card draws power directly from the PCI Express interface and is compatible with common operating systems such as Windows 10 and Windows 11.

Suitable for

• Adding an internal USB Type‑C port to a desktop PC
• Providing an internal or front-panel USB Type‑A connection via a cable
• Expanding USB 3.2 Gen 1 connectivity for peripherals and storage devices

Key specifications

• Manufacturer: DELOCK
• Model: 90344
• Interface: PCI Express (PCIe)
• Output: USB 3.2 Gen 1 (5 Gbit/s), Type‑E key A female and 19‑pin internal USB header
• Power: Supplied via PCIe slot (no additional power connector needed)
• Compatibility: Windows 10, Windows 11 (typical PC compatibility)
• EAN: 4043619903443

How to use

Power off the PC, open the case and insert the DeLOCK 90344 into an available PCI Express slot. Secure the card in the chassis and connect a suitable cable to the Type‑E female port or to the 19‑pin internal header depending on whether you need a Type‑C or Type‑A output. Close the case, power on the system and install drivers if required by the operating system.

Recommendations

For reliable operation, use a high-quality USB 3.2 Gen 1 cable and ensure the PCIe slot provides sufficient power. If front-panel connections are required, select a compatible bracket or cable assembly designed for the card's Type‑E and 19‑pin connectors.
