Adaptador LogiLink CUA0204 USB-C para DisplayPort preto cinzento

LogiLink CUA0204 is a USB-C to DisplayPort gender changer adapter that enables connection of laptops, tablets or computers with a USB-C port to monitors or projectors with a DisplayPort input. The compact aluminium-bodied adapter with gold-plated contacts supports video output up to Ultra HD 8K (7680 x 4320) when used with a compatible source device and DisplayPort cable. The product is finished in black and grey and weighs approximately 0.007 kg.

Advantages

The adapter provides a straightforward USB-C/M to DP/F conversion without additional drivers, with gold-plated contacts for improved signal transmission and an aluminium housing for durability and heat dissipation. It supports high-resolution video up to 8K and is small enough for portable use in home and office setups.

Suitable for

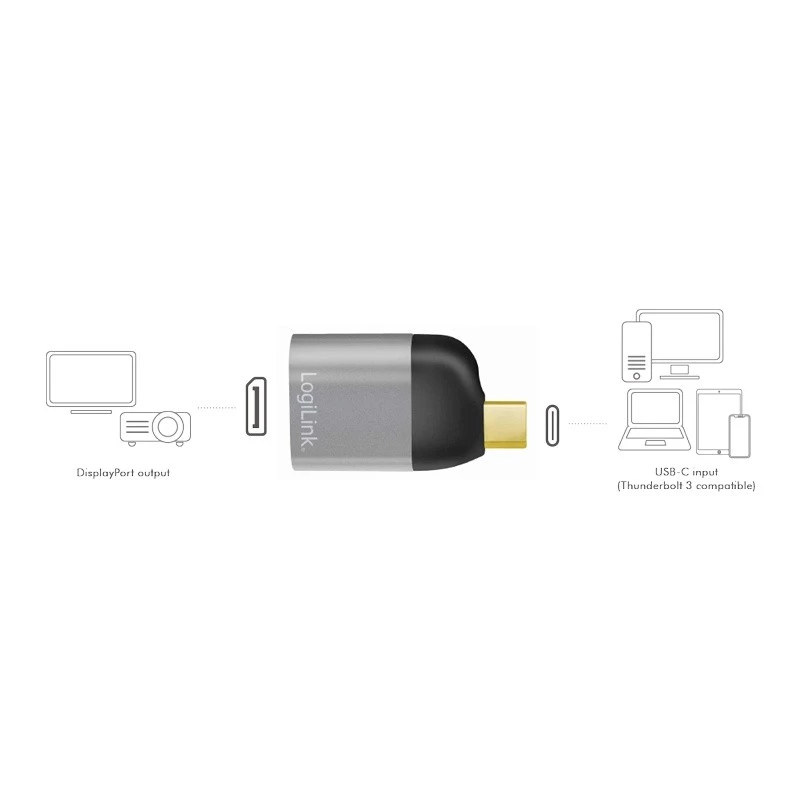

• Connecting USB-C laptops or tablets to DisplayPort monitors or projectors
• High-resolution video output (up to 8K) for presentations and content playback
• Portable workstation setups and travel use

Key specifications

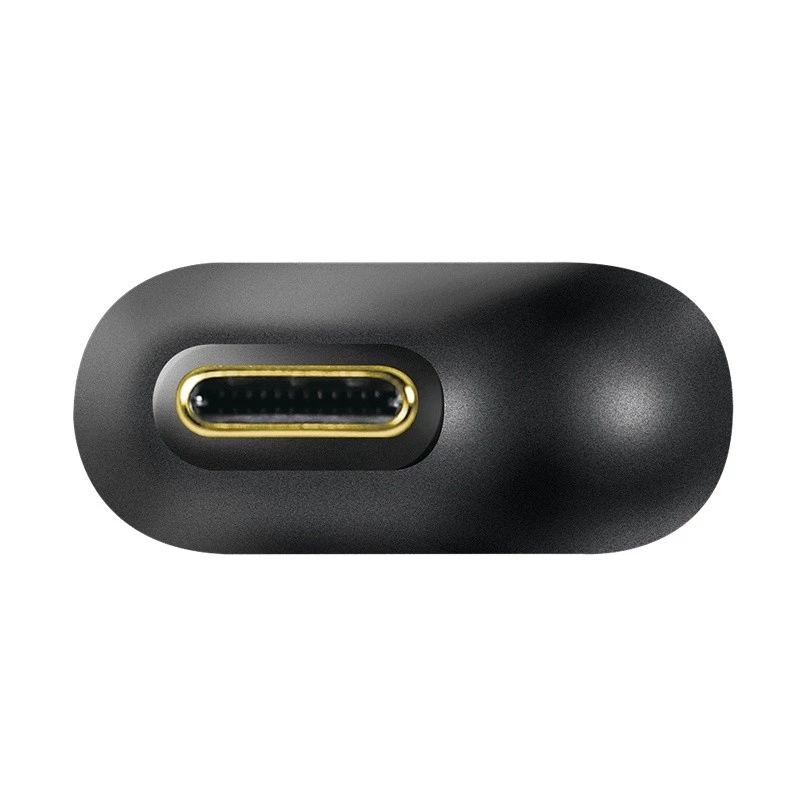

• Connector 1: USB-C (male)
• Connector 2: DisplayPort (female)
• Supported resolution: up to Ultra HD 8K (7680 x 4320)
• Contacts: gold-plated
• Housing: aluminium
• Colour: Black, Grey
• Weight: 0.007 kg
• Brand: LOGILINK, MPN: CUA0204, EAN: 4052792068900

How to use

Connect the USB-C (male) end of the adapter to the USB-C port on your source device. Attach a standard DisplayPort cable to the adapter's DisplayPort (female) connector and then connect the other end of the DisplayPort cable to the monitor or projector. Ensure the source device supports DisplayPort Alternate Mode over USB-C for video output and select the correct input on the display. Use appropriate display settings on your device to configure resolution and refresh rate.

Recommendations

Use a high-quality DisplayPort cable rated for the desired resolution and check that your USB-C source supports DisplayPort Alt Mode. Avoid excessive bending near the connectors and disconnect by pulling the connector body, not the cable itself.
