Adaptador M.2 Key M para PCIe x4 NVMe DeLOCK 64132

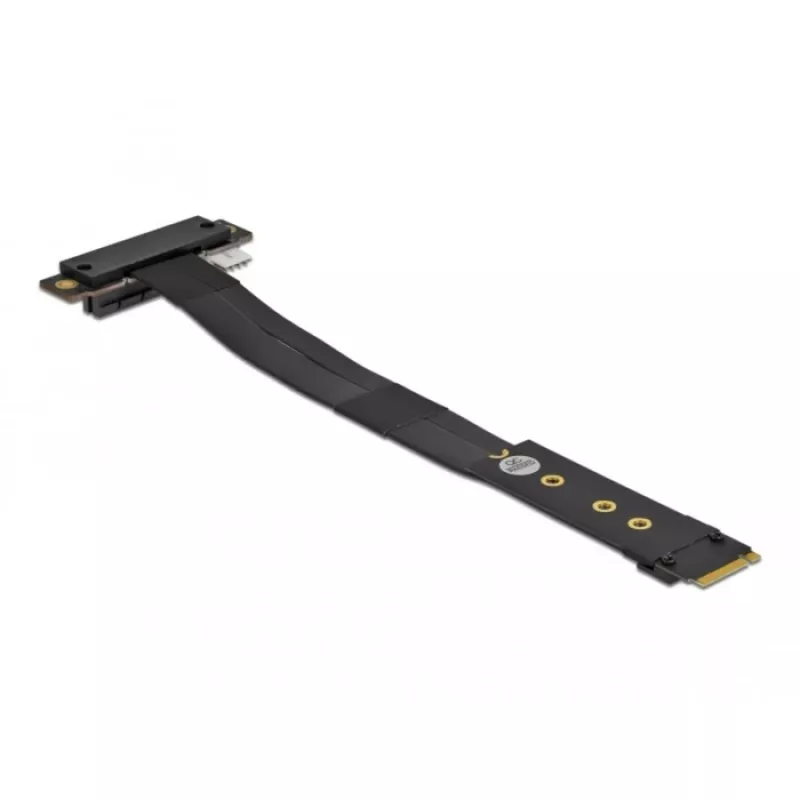

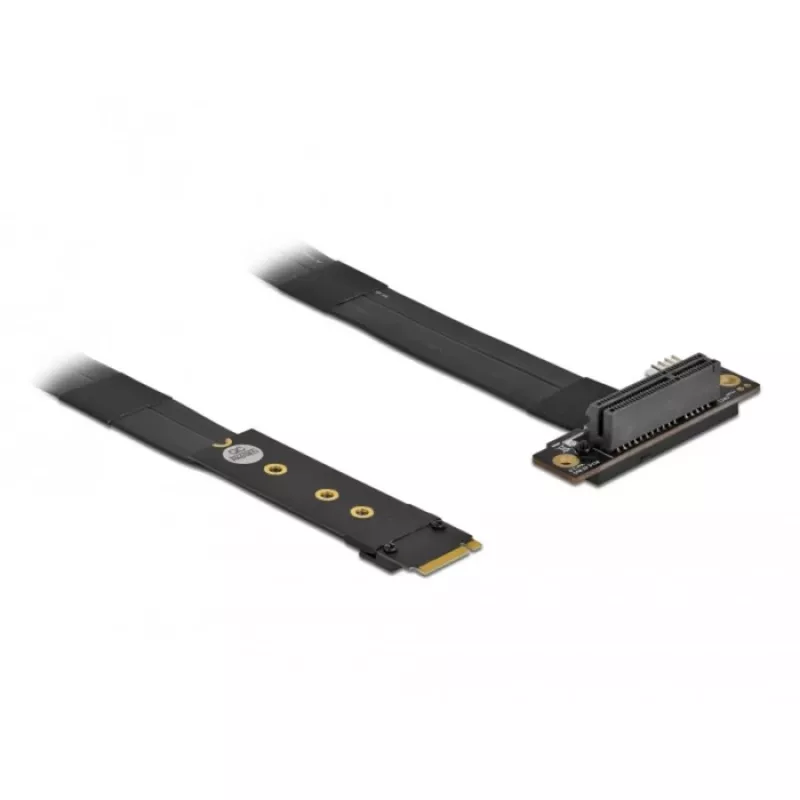

The DeLOCK M.2 Key M to PCIe x4 NVMe Adapter (model 64132) enables connection of an M.2 Key M slot to a PCI Express x4 NVMe card. The adapter uses a 20 cm flexible cable allowing space-saving installation inside a computer case. It is an internal, compact black adapter suitable for integrating PCIe NVMe cards where direct motherboard slots are limited.

Advantages

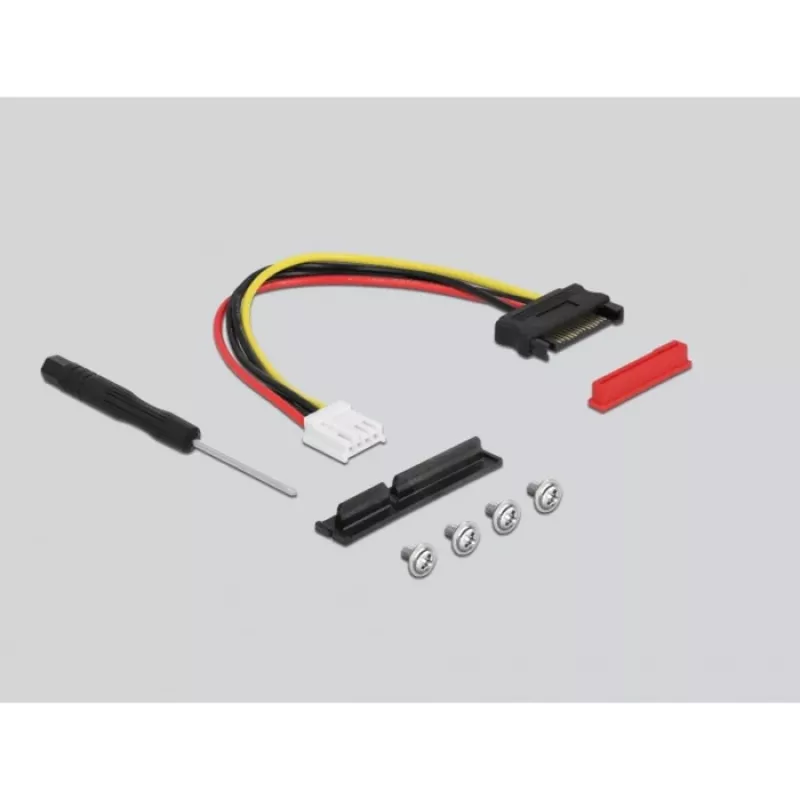

The flexible 20 cm cable permits versatile placement of the PCIe card within the chassis. The adapter supports PCIe x4 NVMe cards and includes an additional 12 V power connector to supply cards that require external power. Its compact internal design saves space and facilitates installation in small form-factor systems.

Suitable for

• Adding an NVMe PCIe x4 card via an M.2 Key M slot
• Upgrading systems with limited free PCIe slots
• Small form-factor or compact PC builds requiring flexible component placement

Key specifications

• Host interface: M.2 Key M
• Output interface: PCIe x4 (NVMe)
• Cable length: 20 cm (flexible)
• Internal installation: yes
• Product colour: Black
• Manufacturer: DELOCK, model 64132, EAN 4043619641321

How to use

Install the adapter into an M.2 Key M slot on the motherboard and secure it according to the motherboard’s M.2 installation procedure. Connect the PCIe x4 NVMe card to the adapter’s PCIe connector and route the flexible cable to position the card inside the case. If the PCIe card requires additional power, connect the adapter’s 12 V power connector to an appropriate power source. After installation, power on the system and verify that the NVMe device is recognized in BIOS/UEFI and the operating system.

Recommendations

Ensure the motherboard supports M.2 Key M in PCIe mode (not only SATA) and verify power requirements of the PCIe NVMe card before installation. Avoid sharp bends in the flexible cable and secure the card to prevent movement during operation.
