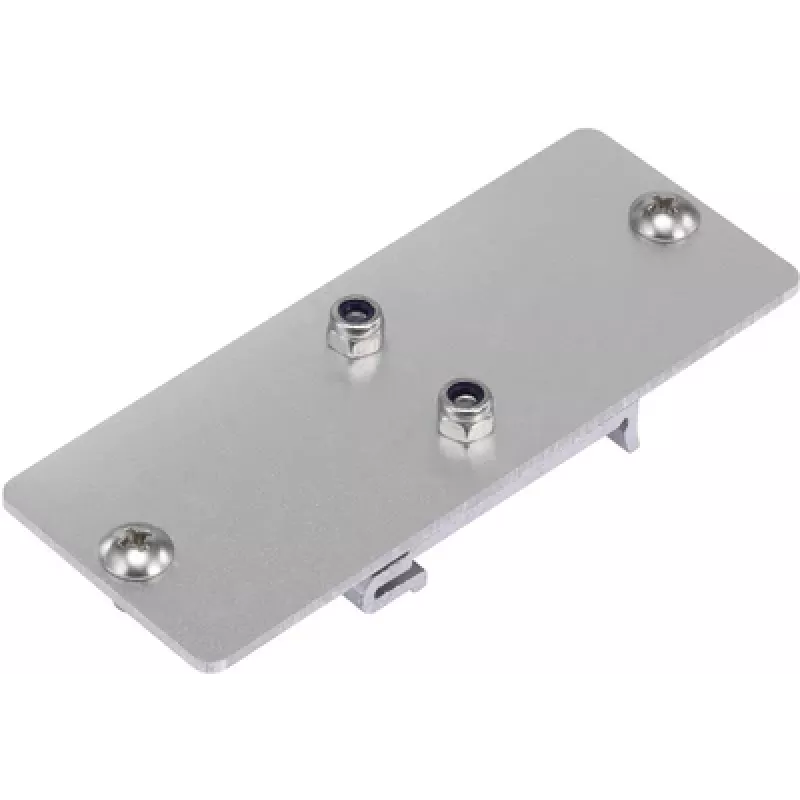

Adaptador para calha DIN Renkforce RF-2826052, adaptador de montagem de uma peça para calha DIN

Renkforce RF-2826052 is a single-piece mounting adapter designed to attach compatible devices to standard DIN rails. The compact adapter provides a secure mechanical connection and simplifies installation in control cabinets, electrical panels and industrial enclosures. It is intended for retrofitting and replacement tasks where a straightforward, space-saving mounting solution is required.

Advantages

The single-piece construction reduces assembly steps and lowers the risk of loose parts during installation. Its compact profile helps save space on the DIN rail while providing stable support for mounted equipment. The adapter is made to provide consistent retention force and straightforward engagement with standard rail profiles, enabling predictable mounting and removal without tools in many cases.

Suitable for

• Mounting compatible control modules and small automation devices on 35 mm DIN rails
• Retrofit and replacement of existing DIN rail-mounted components
• Organising equipment in electrical distribution panels and industrial enclosures
• Applications where compact, reliable mechanical support is required

Key specifications

• Mounting type: single-piece DIN rail adapter for standard rail profiles
• Compatibility: suitable for devices designed to interface with DIN rail adapters and standard 35 mm rails
• Material characteristics: durable molded construction intended for mechanical support in enclosure environments
• Form factor: compact profile to minimise occupied rail length

How to use

Position the adapter against the DIN rail and engage the adapter’s rail hook until it snaps or slots into place according to the rail profile. Attach the compatible device to the adapter following the device manufacturer’s mounting instructions, ensuring secure engagement and correct orientation. To remove, release the adapter from the rail by reversing the engagement action—this may require pressing a release tab or prying at a designed entry point depending on the mounted assembly.

Recommendations

Verify compatibility between the adapter and the device to be mounted before installation, and inspect the DIN rail and surrounding components for adequate clearance and electrical safety. Follow enclosure and panel manufacturer guidance for spacing and ventilation, and, where applicable, observe workplace safety procedures when working on live installations.
