Adaptador PoE Cudy POE25

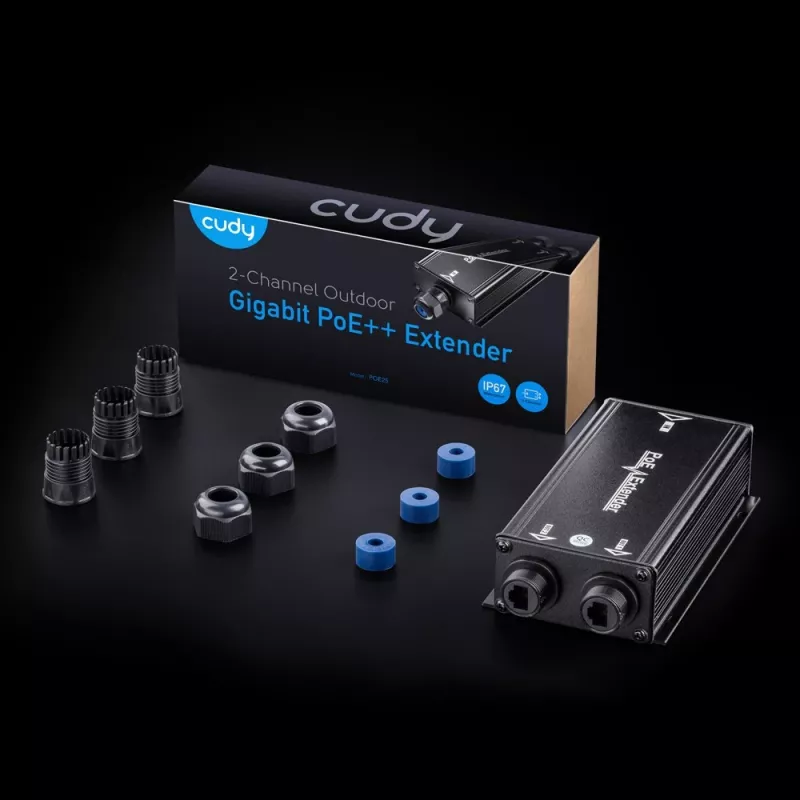

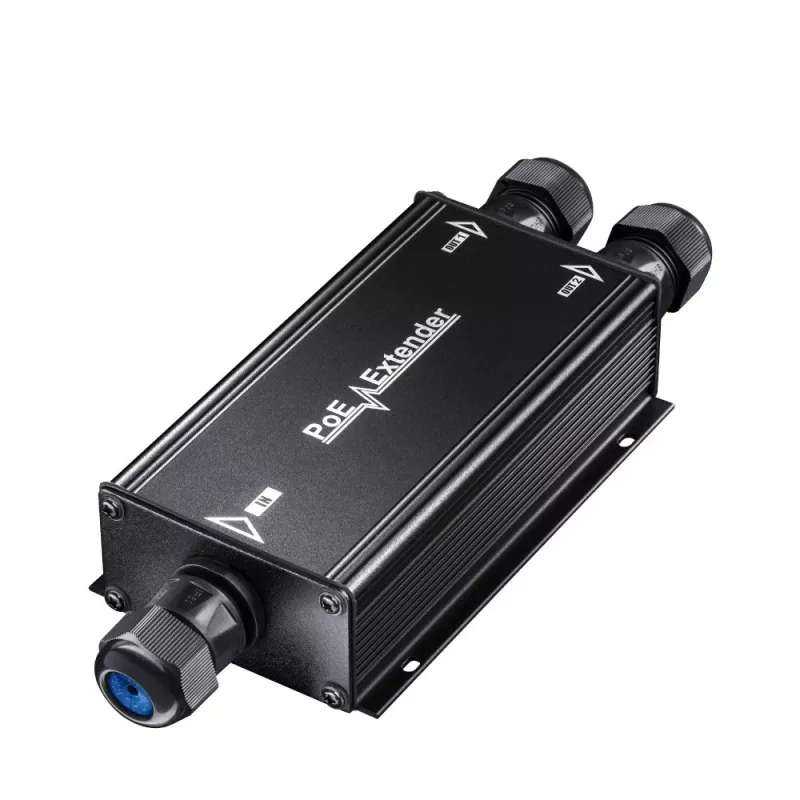

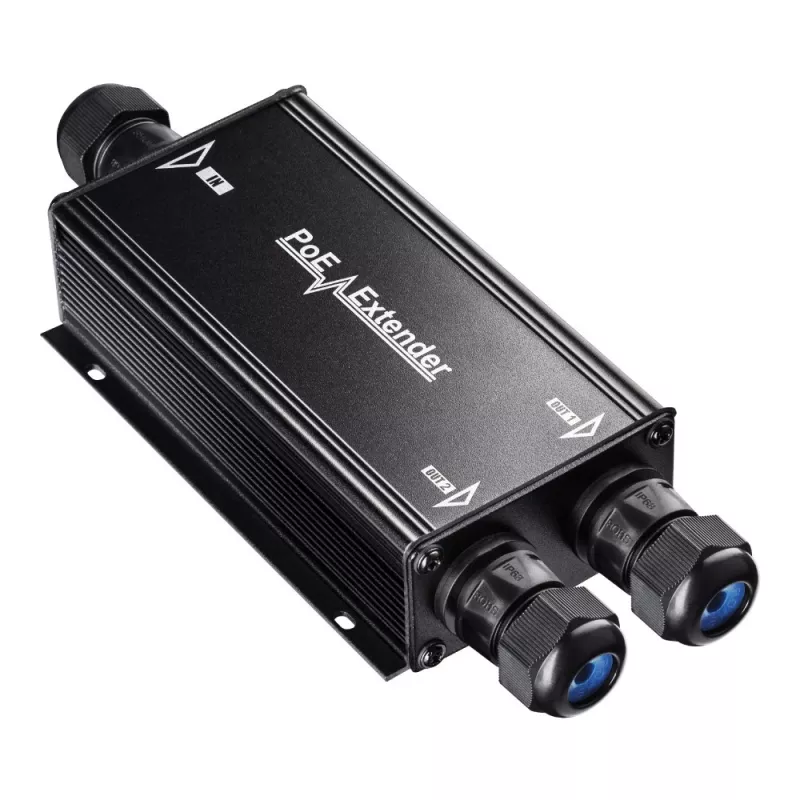

The Cudy POE25 is a Gigabit Ethernet PoE adapter designed to deliver both data and power over a single Ethernet cable. Supporting 10/100/1000 Mbit/s data rates, it provides a compact solution for supplying power to compatible PoE devices while maintaining full Gigabit network performance. The adapter has a compact black housing with dimensions of 230 mm x 90 mm x 40 mm and operates at a PoE voltage of 100 V. The unit uses a specific pin assignment for power and data: power on pins 1/2(-), 3/6(+), 4/5(+), 7/8(-) and data on pins 1/2(+), 3/6(-), ensuring compatibility with devices that follow this wiring convention.

Advantages

The Cudy POE25 combines Gigabit throughput with power delivery over Ethernet, removing the need for separate power cabling and simplifying installation. Its compact form factor allows placement in tight spaces or equipment racks. With a clear pin assignment for power and data, the adapter supports predictable wiring and reduces the risk of connection errors when integrating with devices designed for this PoE configuration. The black finish is suitable for professional installations where low visual impact is preferred.

Suitable for

• Powering PoE-compatible IP cameras and network access points that accept the specified pin assignment
• Office and small business network deployments requiring Gigabit data plus inline power
• Locations where reducing separate power cabling simplifies installation and maintenance

Key specifications

• Data rate: 10/100/1000 Mbit/s (Gigabit Ethernet)
• PoE voltage: 100 V
• Dimensions: 230 mm x 90 mm x 40 mm
• Colour: Black
• Power pin assignment: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• Data pin assignment: 1/2(+), 3/6(-)

How to use

Connect the Cudy POE25 inline between your Ethernet switch or injector and the powered device using standard Ethernet cables. Ensure the source provides compatible power and that the powered device accepts the adapter's pin assignment. Verify link activity and data throughput to confirm Gigabit operation. Place the adapter in a ventilated location and avoid exposure to moisture or extreme temperatures. Follow any safety and installation guidelines provided by the powered device manufacturer.

Recommendations

Before installation, confirm that the target device supports PoE at 100 V and the adapter's pin assignment. Use quality shielded or unshielded Ethernet cables rated for Gigabit transmission to maintain data integrity. For permanent or critical installations, mount the adapter in an accessible location to facilitate inspection and maintenance.
