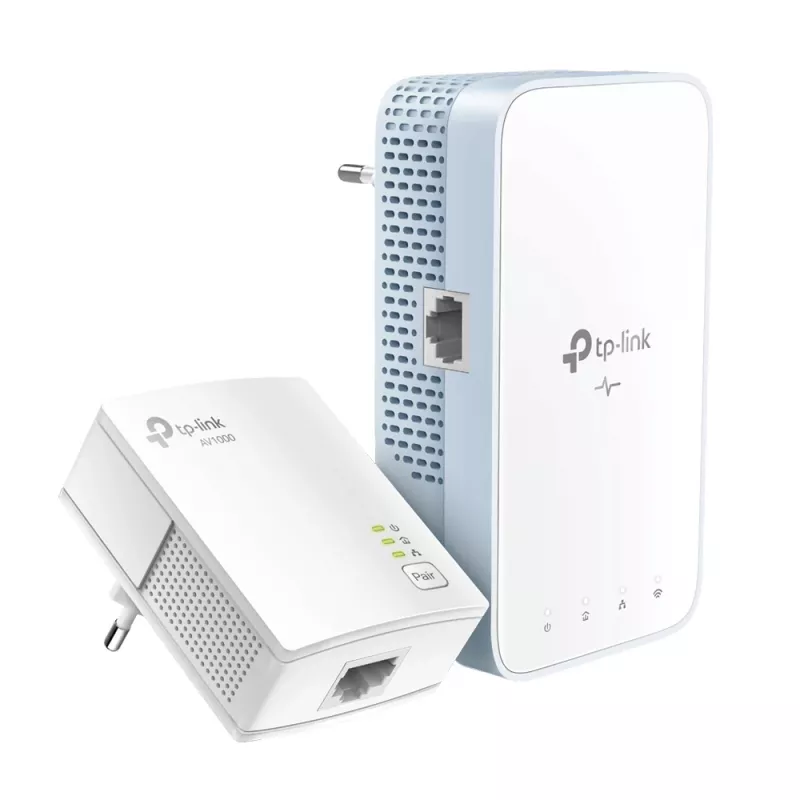

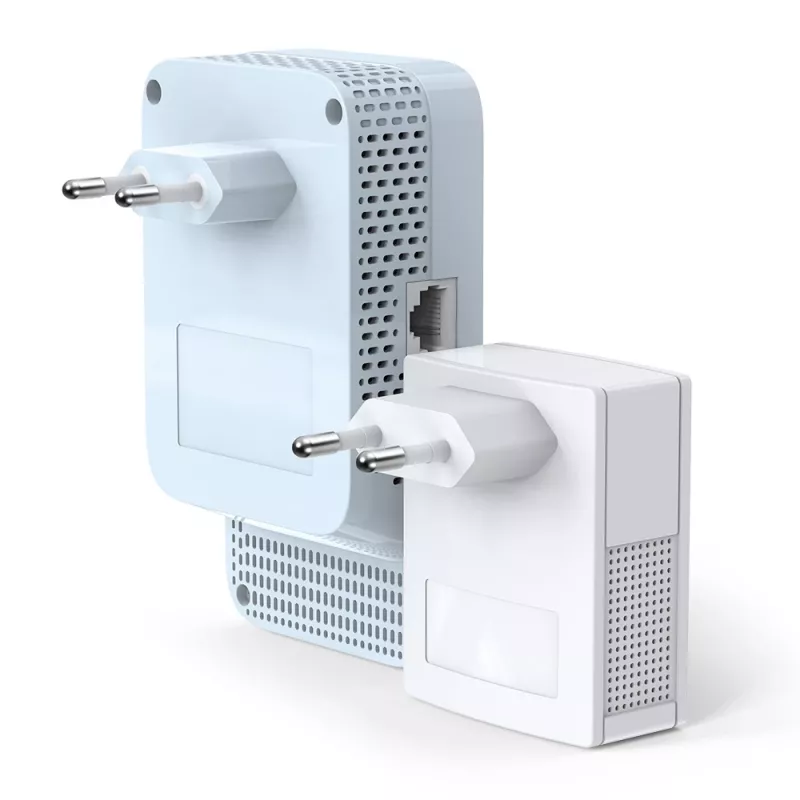

Adaptador PowerLine TP-Link TL-WPA1000 KIT 1000 Mbit/s Ethernet LAN Wi-Fi branco 2 unid.

The TP-Link TL-WPA1000 KIT converts an existing electrical wiring into a Gigabit-capable network, delivering wired and wireless connectivity wherever there is a power outlet. The kit includes two adapters and requires at least two units on the same electrical circuit to operate. It extends network coverage without drilling or new cabling, and additional extenders can be added to expand the network further.

Advantages

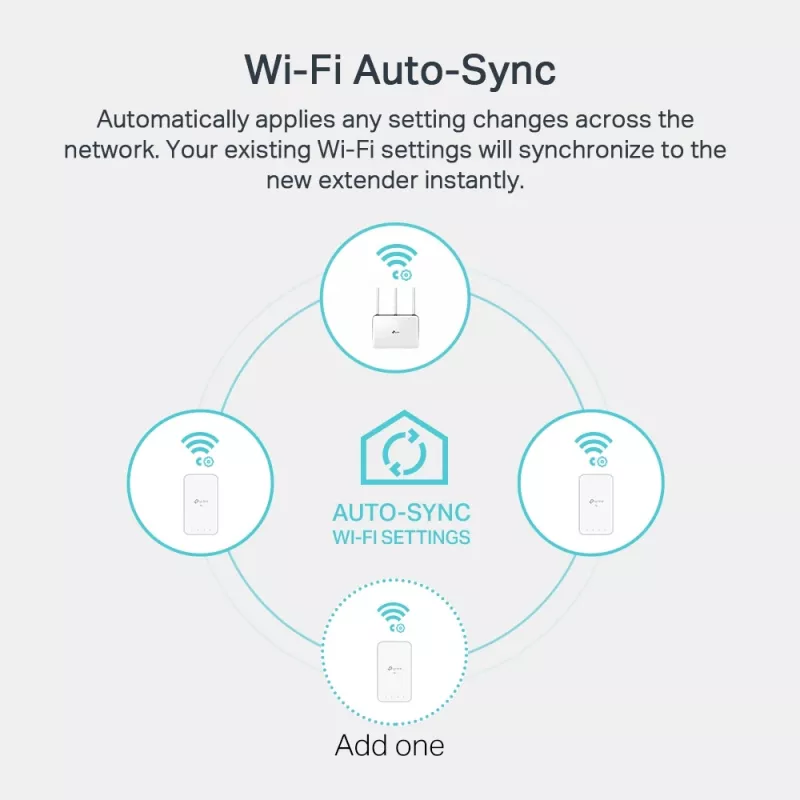

The kit uses HomePlug AV2 technology to provide powerline data rates up to 1000 Mbps over distances up to 300 meters along the electrical wiring, supporting stable streaming, online gaming and large file transfers. Integrated AC1200 dual-band Wi‑Fi offers simultaneous 2.4 GHz (up to 300 Mbps) and 5 GHz (up to 867 Mbps) connections. One-touch Wi‑Fi configuration copies your router SSID and password for quick setup, while Wi‑Fi Auto-Sync propagates setting changes across the extended network. A Gigabit Ethernet port enables high-speed wired connections for bandwidth-intensive devices, and the built-in power socket preserves the wall outlet for other devices. Management is available via the tpPLC mobile app or PC utility.

Suitable for

• Extending home network coverage to rooms without network cabling
• Streaming HD video and online gaming on smart TVs and consoles
• Connecting bandwidth‑intensive devices via Gigabit Ethernet
• Adding wired or wireless access points without drilling or new cabling

Key specifications

• Model: TL-WPA1000 KIT (2-piece kit)
• Powerline standard: HomePlug AV2
• Maximum powerline data rate: up to 1000 Mbps
• Powerline range: up to 300 meters over electrical wiring
• Wi‑Fi: AC1200 dual-band (2.4 GHz up to 300 Mbps; 5 GHz up to 867 Mbps)

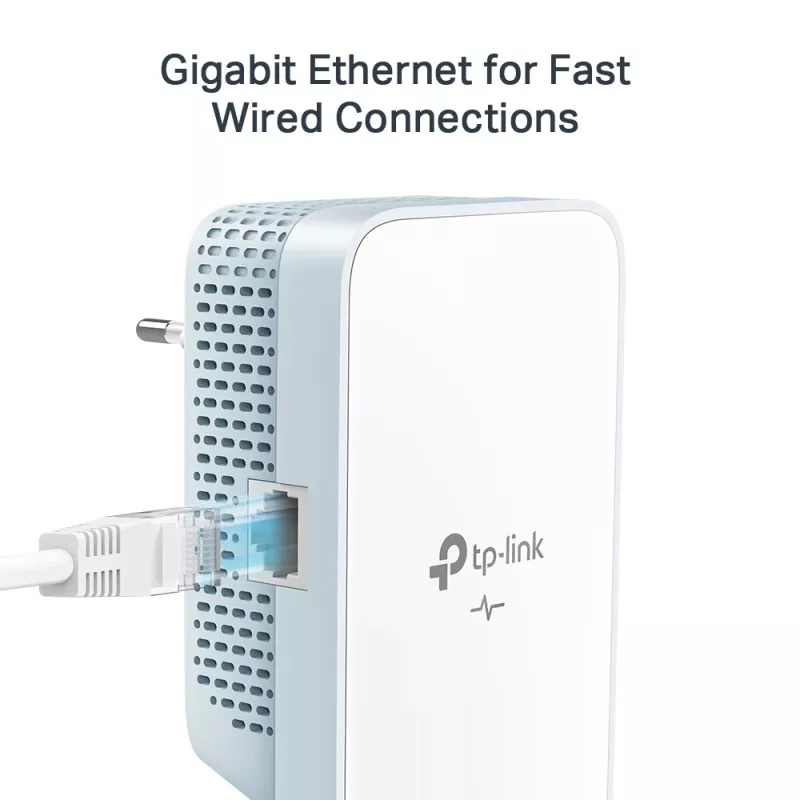

• Ethernet: 1 × Gigabit Ethernet port
• Built-in power socket: Yes
• Supported standards: IEEE 802.11a/b/g/n/ac, IEEE 802.3/802.3u/802.3ab, IEEE 1901
• Compatibility: Windows and Mac (management via tpPLC app for Android/iOS or PC utility)

How to use

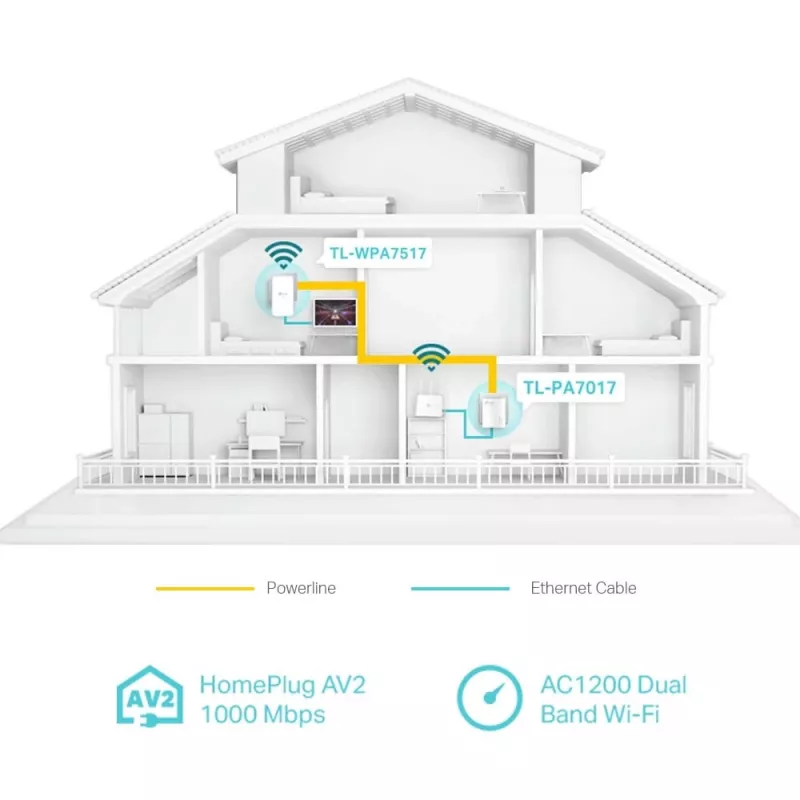

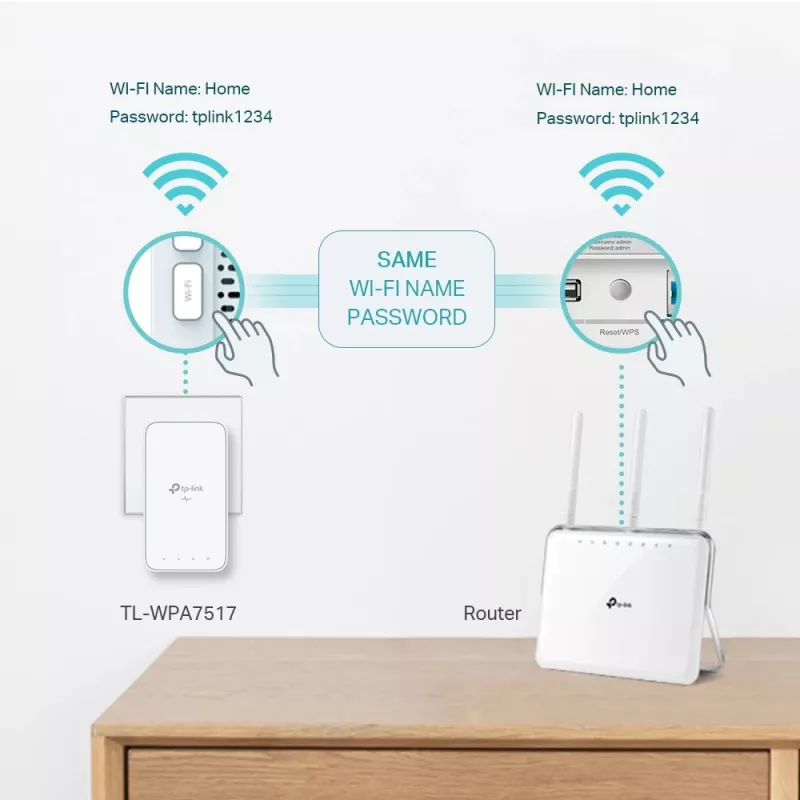

Connect one adapter (TL-PA7017) to your router with an Ethernet cable and plug it into a wall socket. Plug the TL-WPA7517 adapter into a wall socket in the room where you need network access. Press the pair buttons if required to establish the powerline link. Use the one-touch Wi‑Fi button to copy the router's SSID and password to the extender, or let Wi‑Fi Auto-Sync apply changes automatically. Connect devices to the extender via Wi‑Fi or the Gigabit Ethernet port. Two Ethernet cables are included in the package for wired connections.

Recommendations

For optimal performance, plug adapters directly into wall outlets rather than into power strips or surge protectors, ensure both adapters are on the same electrical circuit, and avoid connecting across different phases or separate meters. Place the Wi‑Fi extender in a central location near the devices that require network access and use the tpPLC app to monitor real-time powerline speeds and control LED indicators.
