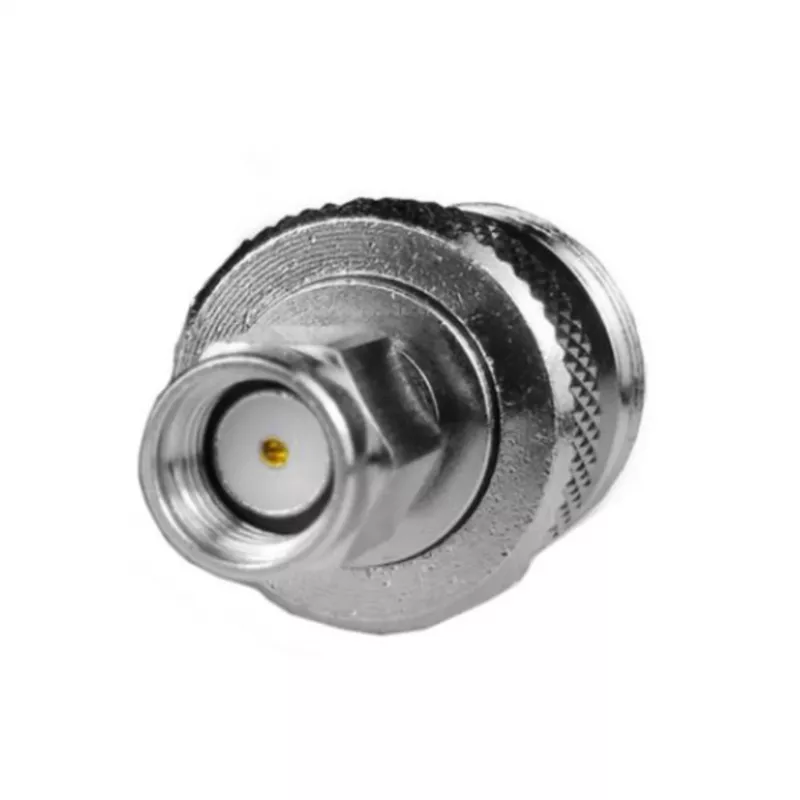

Adaptador Poynting SMA fêmea para N-Type fêmea A-ADPT-034

The Poynting A-ADPT-034 is a high-quality RF coaxial adapter designed to connect SMA female connectors to N-Type female connectors. Ideal for antenna systems, wireless networks, and test equipment, this adapter ensures reliable signal transmission with minimal loss.

Advantages

This adapter offers excellent performance with a frequency range up to 6 GHz, low VSWR of 1.2:1, and insertion loss of just 0.2 dB. The robust construction features a brass body with nickel plating and gold-plated brass center contacts for durability and corrosion resistance. It supports up to 500 mating cycles, making it a long-lasting solution for professional installations.

Suitable for

• Antenna connections
• Wireless systems
• Test equipment
• RF and telecommunications applications

Key specifications

• Adapter Type: RF Coaxial Adapter
• Connector A: SMA Female
• Connector B: N-Type Female
• Impedance: 50 Ohm
• Frequency Range: DC to 6 GHz
• VSWR (Max): 1.2:1
• Insertion Loss (Max): 0.2 dB
• Body Material: Brass, Nickel Plated
• Center Contact Material: Gold Plated Brass
• Insulator Material: PTFE (Teflon)
• Operating Temperature: -40°C to +85°C
• Durability: 500 Mating Cycles
• RoHS Compliant

Recommendations

For optimal performance, use with high-quality coaxial cables and ensure proper torque when connecting. This adapter is a reliable choice for both indoor and outdoor installations where signal integrity is critical.
