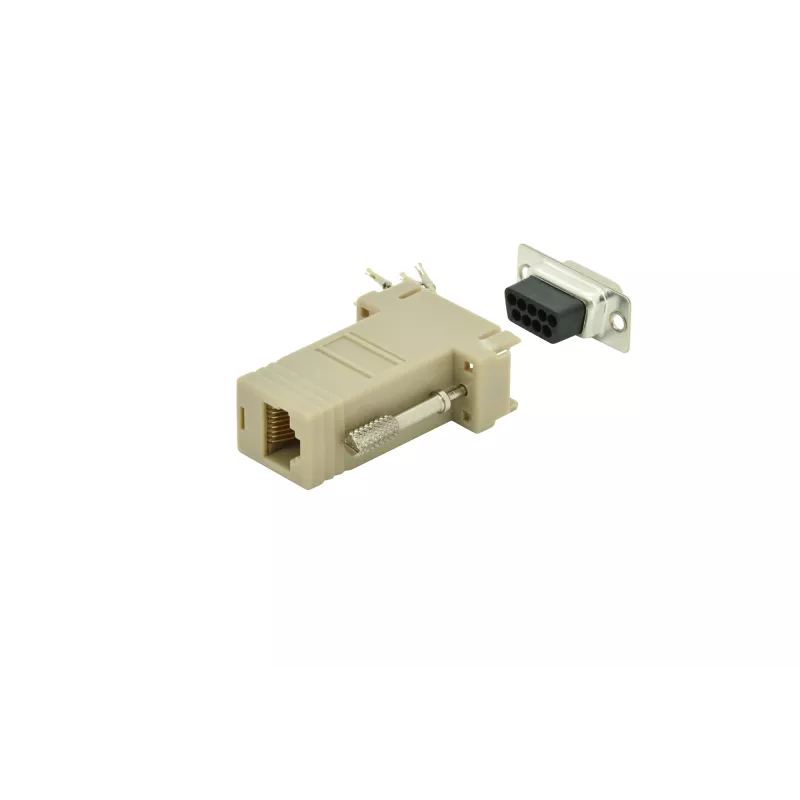

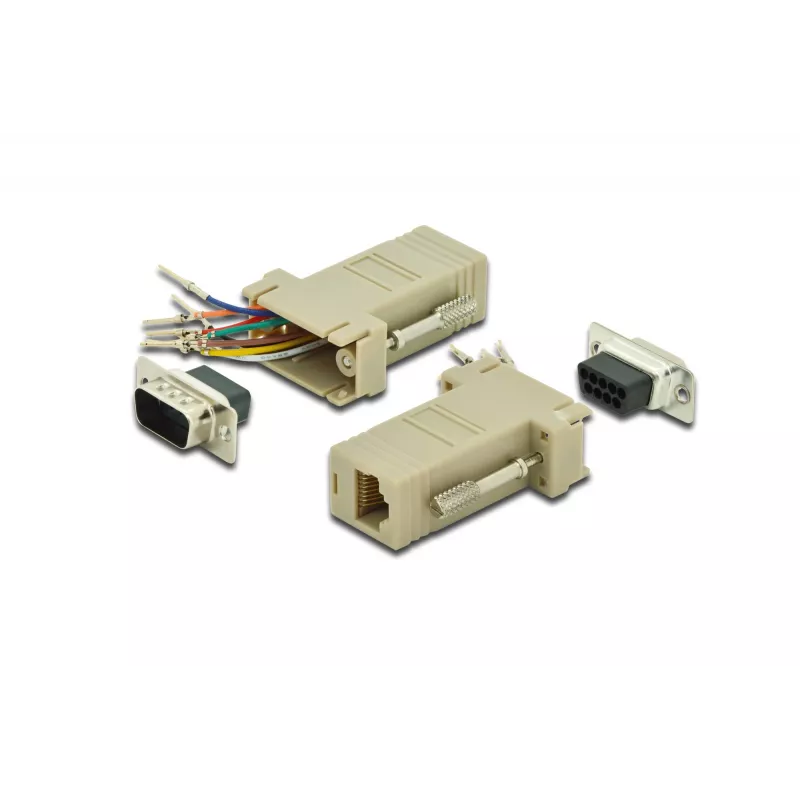

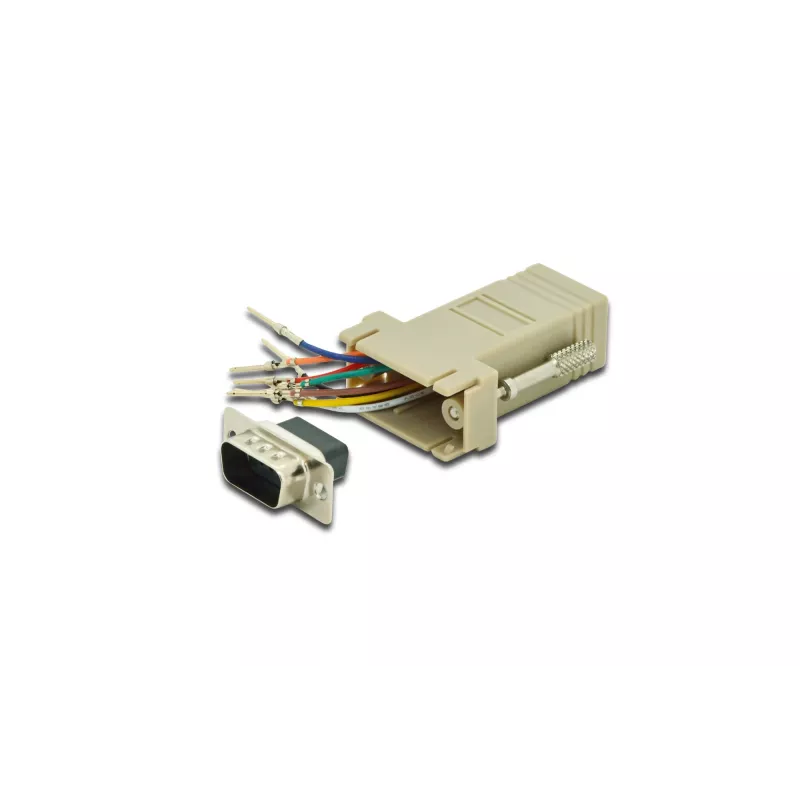

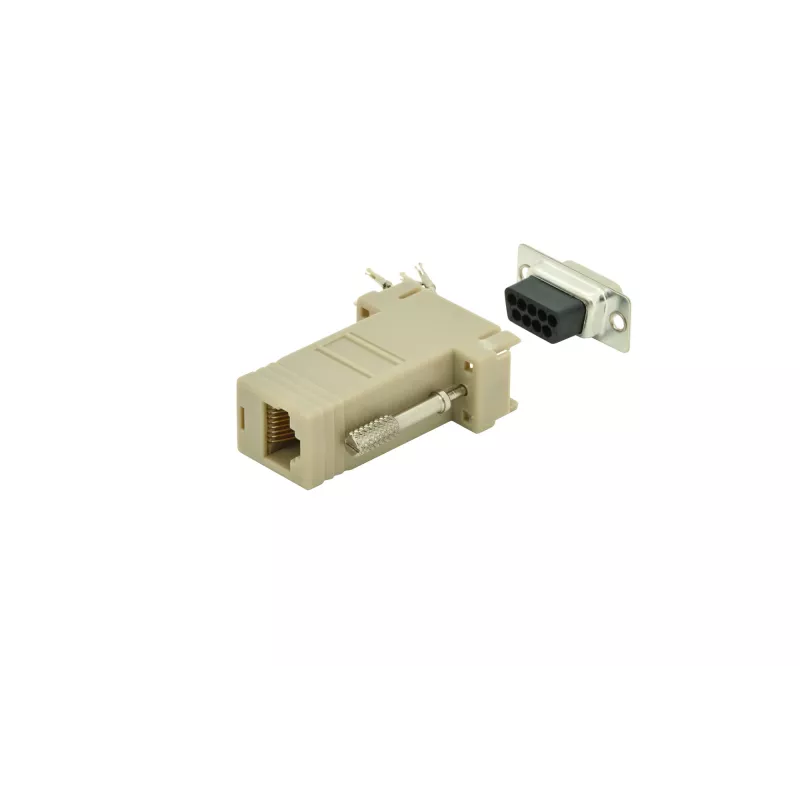

Adaptador RS-232 Digitus AK-610517-000-I

RS 232 to RJ45 adapter for self-assembling, designed to convert RS-232 serial connections to RJ45 connectors. Suitable for custom installations where users assemble their own cables or connectors to match specific equipment requirements. Compact adapter intended for straightforward integration into existing RS-232 setups that require an RJ45 interface.

Advantages

The adapter provides a simple method to adapt RS-232 serial signals to an RJ45 connector, allowing flexible cabling layouts. Its design supports self-assembly, enabling technicians to configure pinouts and cable lengths according to device specifications. The compact form factor facilitates installation in limited spaces and standard RS-232 environments.

Key specifications

• Type: RS-232 to RJ45 adapter
• Usage: self-assembling
• Interface: RS-232 (serial) to 8P8C (RJ45)
• Application: custom cable assembly and connection conversion

How to use

Strip and prepare the cable conductors, then solder or crimp them to the adapter according to the required RS-232 pinout and the RJ45 wiring scheme used by the connected equipment. Verify pin assignments and signal levels before powering devices. Secure connections and test serial communication with appropriate terminal software or diagnostic tools.

Recommendations

Confirm the correct RS-232 pinout and voltage compatibility of all devices before assembly. Use proper tools for stripping, soldering or crimping to ensure reliable connections. If unsure about wiring, consult device manuals or a qualified technician.
