Adaptador SATA interno Axagon PCES-SJ2 PCIe 2 Gbit/s preto

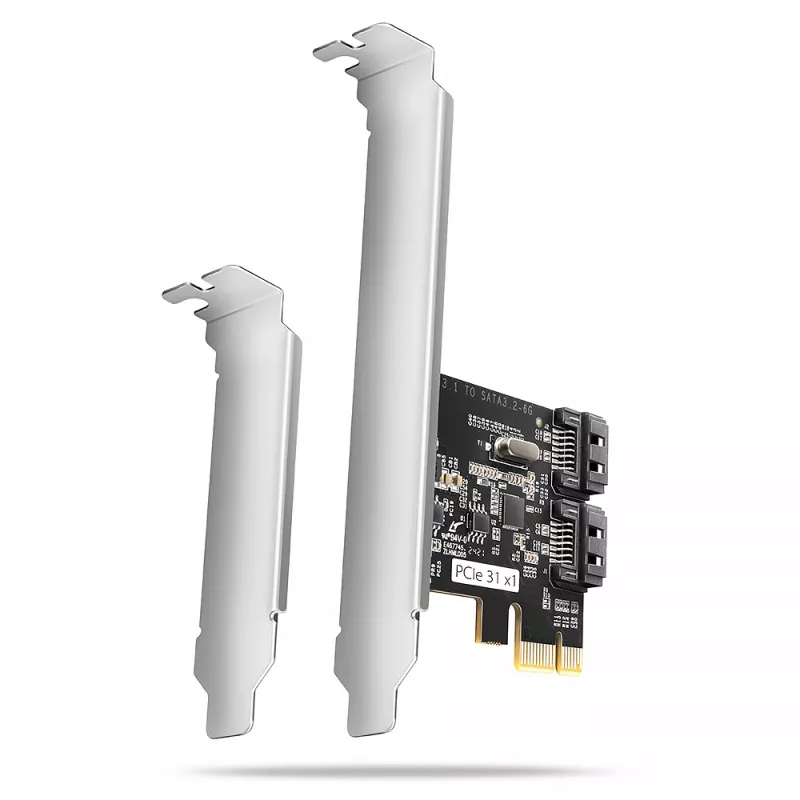

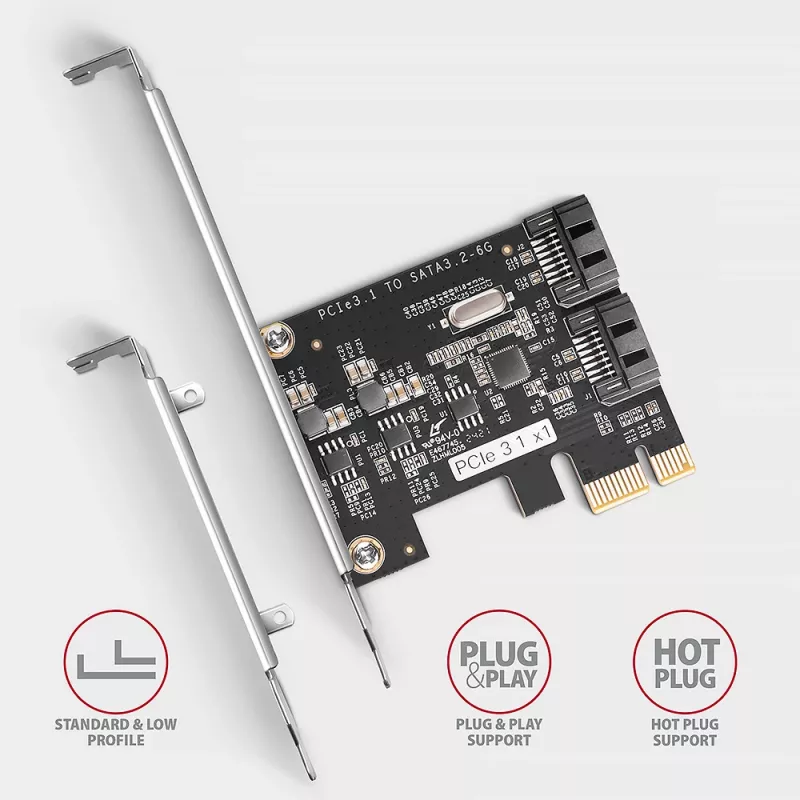

The AXAGON PCES-SJ2 PCI-Express controller adds two internal SATA III (6 Gb/s) ports to desktop PCs, using the JMicron JMB582 chipset. It is compatible with PCI-Express x1 slots (also fits x4/x8/x16) and supports booting from connected drives. The card includes a standard bracket and a low-profile bracket for installation in both regular and slim PC cases.

Advantages

The controller supports SATA 3.0 features such as Hot-Plug, Native Command Queuing (NCQ), TRIM for SSDs and Port Multiplier. It offers plug-and-play operation in most systems without requiring additional drivers and provides backward compatibility with SATA I/II devices. The included low profile bracket ensures flexible installation options.

Key specifications

• Interface: PCI-Express 3.0 x1 (compatible with PCIe 1.0a/1.1/2.0/2.1), 1-lane bandwidth ~2 Gb/s bidirectional

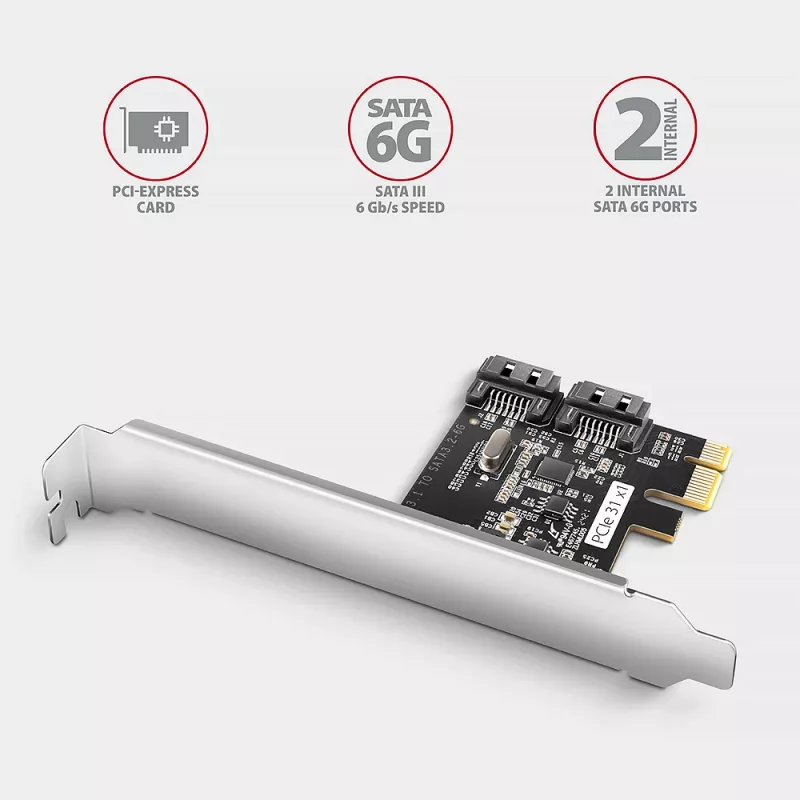

• Output: 2× internal 7-pin SATA data connectors, SATA I/II/III compatible
• Supported transfer rates: up to 6 Gb/s (SATA III), 3 Gb/s (SATA II), 1.5 Gb/s (SATA I)
• Chipset: JMicron JMB582

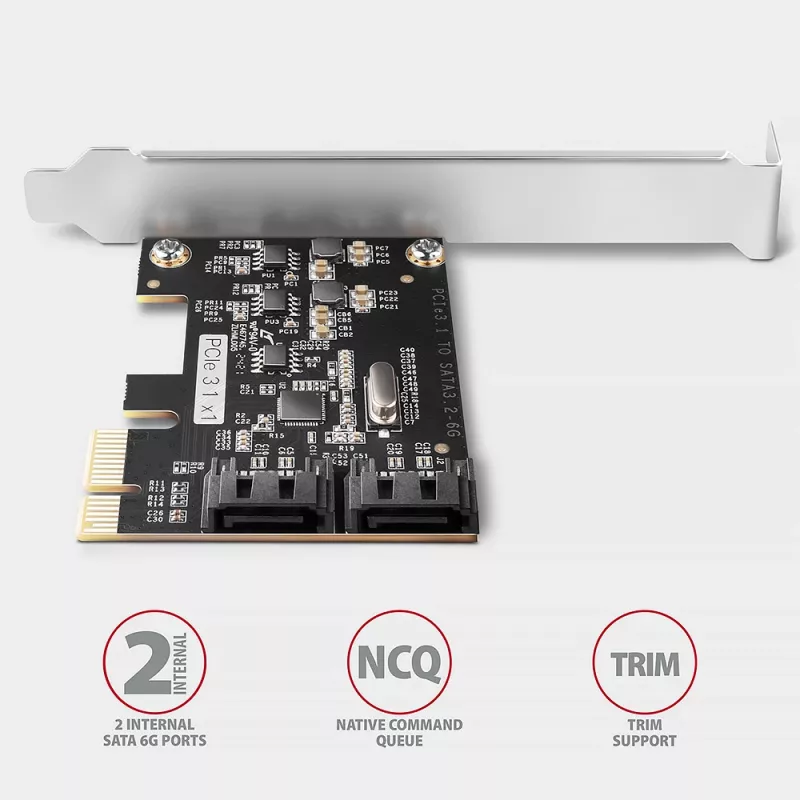

• Features: AHCI compliant, Hot-Plug, NCQ, TRIM, Port Multiplier (command based), boot support with BIOS/UEFI
• Compatibility: Windows 7/8/8.1/10/11 and Windows Server 2008–2022 (32/64-bit), Linux kernel 2.6.x and newer

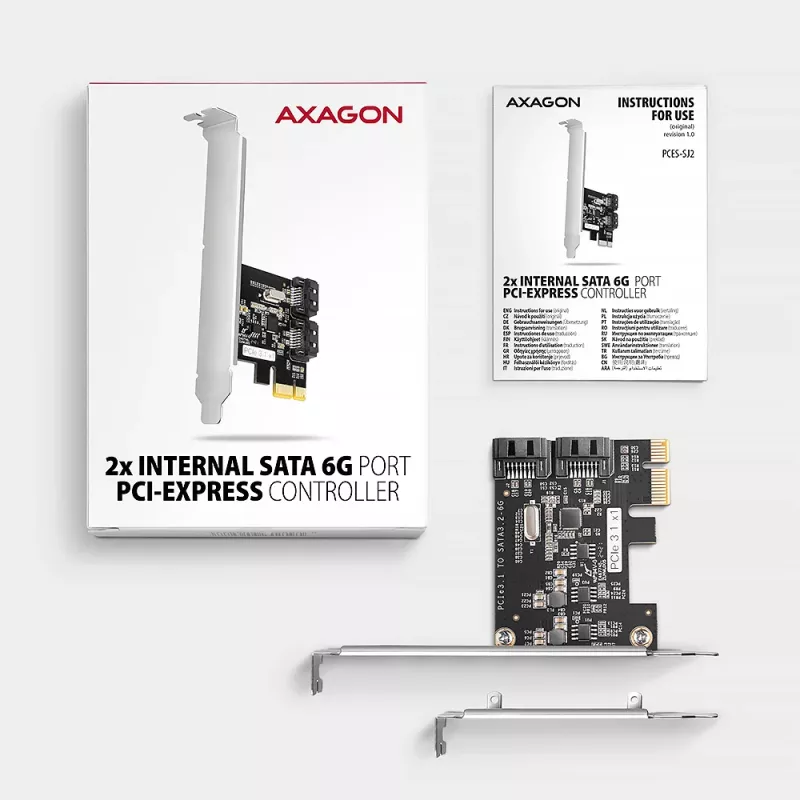

• Package contents: PCI-Express card with standard bracket, low profile bracket, multilingual manual, cardboard box

How to use

Power off the PC and insert the AXAGON PCES-SJ2 into an available PCIe x1 (or x4/x8/x16) slot. Secure the bracket, connect internal SATA cables from the card to your drives, and attach power to the drives as required. On most operating systems the card is recognized automatically; if needed, install drivers provided by the OS or the manufacturer. Configure boot order in BIOS/UEFI when booting from a drive connected to this controller.

Recommendations

Use SATA III cables and connect SSDs to benefit from TRIM and NCQ features. When installing in compact cases, replace the standard bracket with the supplied low-profile bracket. Verify motherboard BIOS/UEFI settings if the connected drive does not appear as a boot option.
