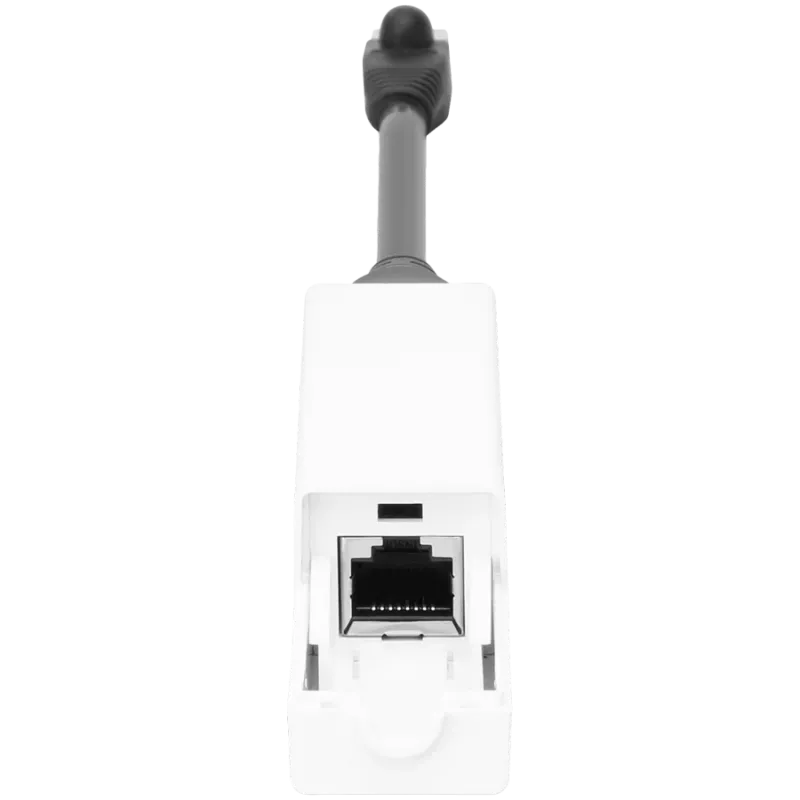

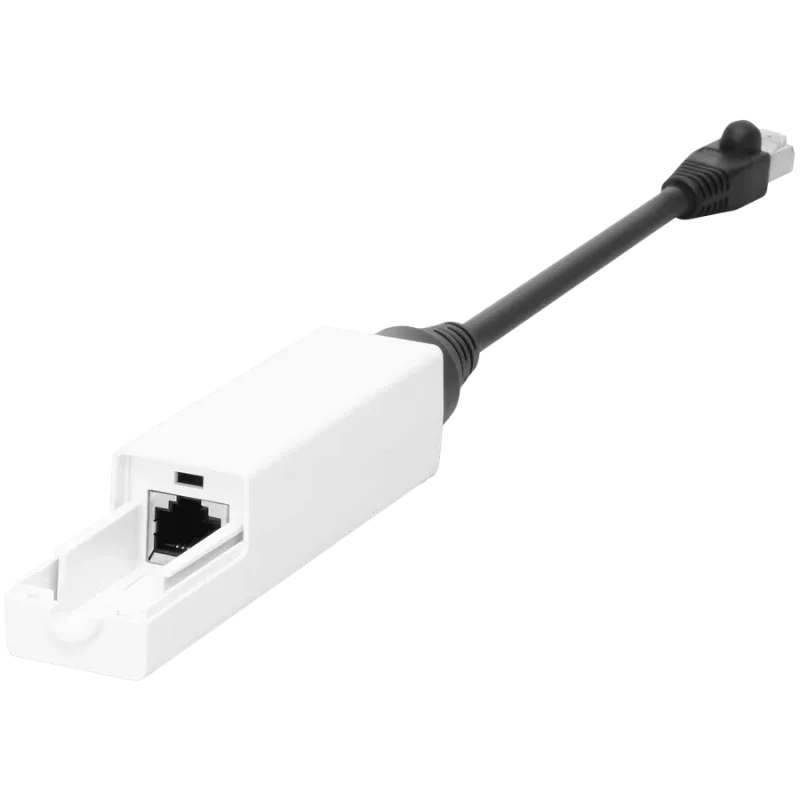

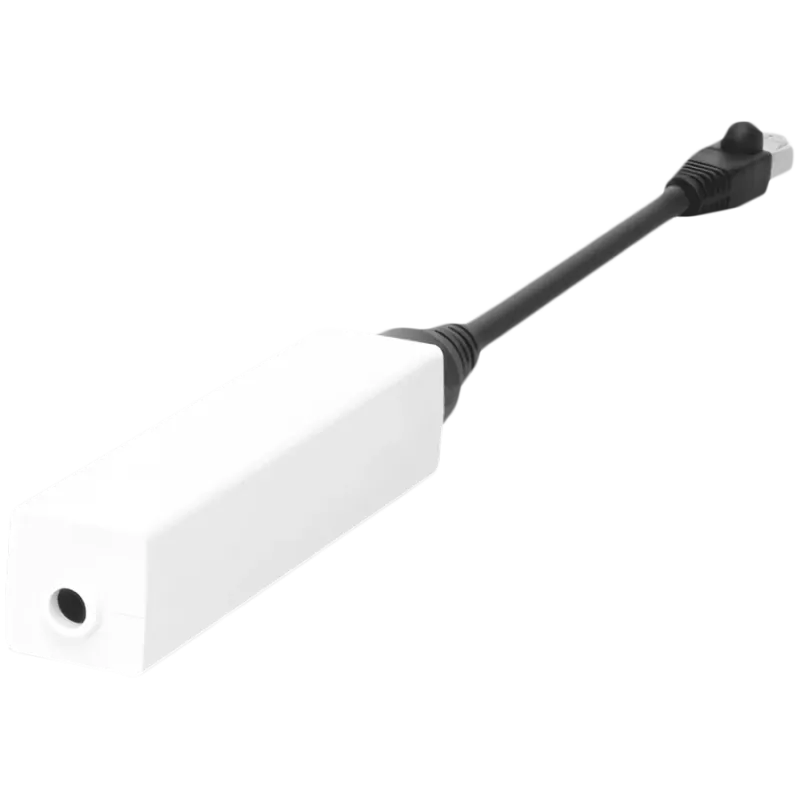

Adaptador Ubiquiti Instant 802.3af PoE 24V Passivo 12W

The Ubiquiti Instant 802.3af PoE Adapter (model INS-8023AF-O) converts standard 802.3af PoE input to 24V passive PoE output, enabling compatibility with Ubiquiti 24V devices. Ideal for powering airMAX, UniFi, and other Ubiquiti equipment from an 802.3af switch.

Advantages

Compact and reliable, this adapter eliminates the need for a separate power supply when using an 802.3af PoE switch. It provides up to 12W of power with surge protection, ensuring stable operation in demanding environments.

Suitable for

• Ubiquiti airMAX and UniFi devices requiring 24V passive PoE
• Extending PoE reach in network installations
• Industrial and outdoor applications with wide temperature range

Key specifications

• Input: IEEE 802.3af PoE (48V DC)
• Output: 24V DC passive PoE, 0.5A, 12W
• Ports: 2x RJ-45 (data in, data & power out)
• Data rate: 10/100 Mbps
• Operating temperature: -30 to 70°C
• Housing: UV stabilized plastic
• Certifications: CE, FCC, IC

Recommendations

Use with a 802.3af compliant switch or injector. Ensure the powered device supports 24V passive PoE. For outdoor installations, protect from direct exposure.
