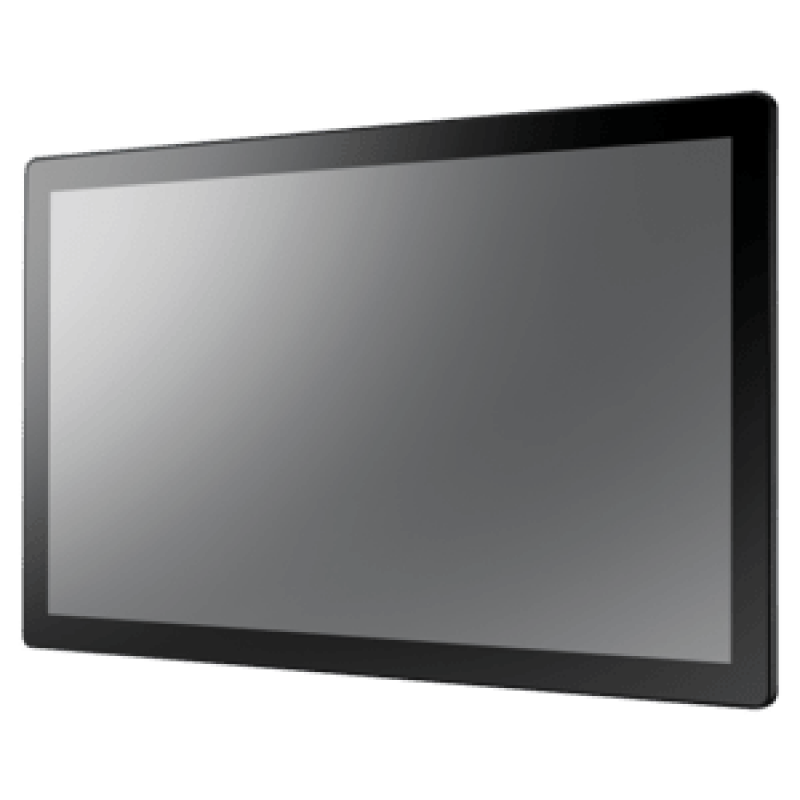

Advantech computador tátil Intel Core i3-N305 21,5 polegadas Projected Capacitive

In fast-paced retail, hospitality, and industrial environments, a sluggish or unreliable terminal can frustrate customers and slow down operations. The Advantech UTC-120KP-WWF1E solves this with a powerful yet compact 21.5-inch touch computer that brings desktop-class performance to the point of service. Its Intel Core i3-N305 processor and solid-state storage deliver quick transaction processing and smooth multitasking, while the projected capacitive touchscreen responds instantly to gloved or bare fingers.

Who is it for

This all-in-one touch computer is ideal for point-of-sale (POS) systems, self-service kiosks, digital signage, and interactive information terminals. It suits retail stores, restaurants, hotels, healthcare facilities, and light industrial settings where reliability and space efficiency are critical. The fanless design and IP65-rated front panel ensure dependable operation in dusty or splash-prone areas.

Main features

• 21.5-inch Full HD (1920 x 1080) projected capacitive multi-touch display with 250 cd/m² brightness for clear visibility.
• Intel Core i3-N305 processor (Alder Lake-N) with 8GB DDR4 RAM and 256GB M.2 NVMe SSD for responsive performance.
• Rugged construction with IP65 front panel protection, suitable for commercial and industrial environments.
• Versatile connectivity: 2x Gigabit Ethernet, 4x USB 3.2 Gen 1, 2x USB 2.0, 2x RS-232/422/485 serial ports, and HDMI output.
• Flexible mounting with VESA 100x100mm pattern for wall, arm, or stand installation.
• Supports Windows 10 IoT Enterprise, Windows 11, and Linux operating systems.

Specifications

• Display: 21.5" TFT LCD, Full HD 1920 x 1080, 16:9 aspect ratio, flat, 250 cd/m² brightness, projected capacitive touch.
• Processor: Intel Core i3-N305 (Alder Lake-N), 8 cores, up to 3.8 GHz.
• Memory: 8GB DDR4 SO-DIMM (expandable).
• Storage: 256GB M.2 NVMe SSD.
• Graphics: Integrated Intel UHD Graphics.
• Networking: 2x Gigabit Ethernet RJ-45, optional Wi-Fi/Bluetooth via M.2 slot.
• Ports: 4x USB 3.2 Gen 1, 2x USB 2.0, 2x RS-232/422/485, 1x HDMI, line-out, mic-in.
• Power: 12V DC input.
• Operating temperature: 0°C to 40°C (from product family typical specs).
• Dimensions (W x H x D): 528.2 x 323.2 x 56.5 mm (from product family typical specs).
• Weight: 6.5 kg (from product family typical specs).
• Colour: Black.

Tips

For optimal touch response, keep the screen free of dust and debris using a soft, lint-free cloth. When integrating with legacy peripherals, the dual serial ports allow direct connection to barcode scanners, receipt printers, or cash drawers. Consider adding an optional Wi-Fi/Bluetooth module if cable-free networking is required. Mount the unit at a comfortable height to reduce operator fatigue during long shifts.
